NEW SMC MY1MW50G-800
Overview
Description

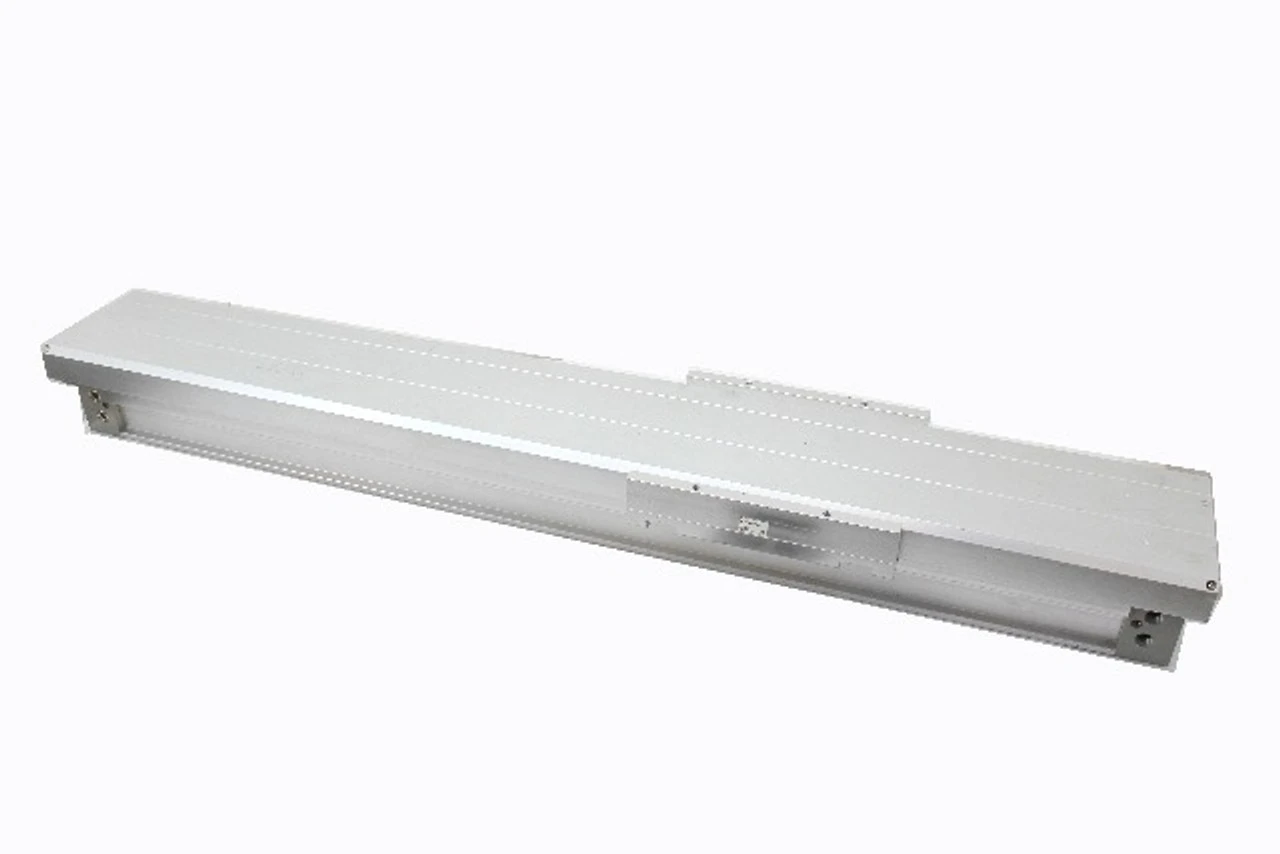

SMC MY1MW50G-800 Rodless Slide Bridge, Linear Actuator 50mm Bore 800mm Stroke. This item is New but has small scratches. All blemishes are cosmetic only and do not hurt the operation of the part. 30 Day Warranty.
For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.
The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.
Mechanical joint rodless cylinder with cam follower guide
Bore size: 50mm
Stroke: 800mm
Max. Press: 0.5 Mpa
Specifications
| Weight | 55.00 LBS | 55.00 LBS |
|---|
SKU: IP544121093
UPC: 646412782792
Condition: New
Availability: In Stock
Weight: 55.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 48.00
(in)
Shipping: Calculated at Checkout
Type: Rodless Cylinder
MPN: MY1MW50G-800
Model: MY1MW50G-800
Bore Diameter: 50mm
Stroke: 800 mm
Series: MYC
PSI: 115 PSI
Manufacturer: SMC
Country/Region of Manufacture: Japan
Action Type: Double Acting
GTIN: 646412782792
Shelf: I-4
