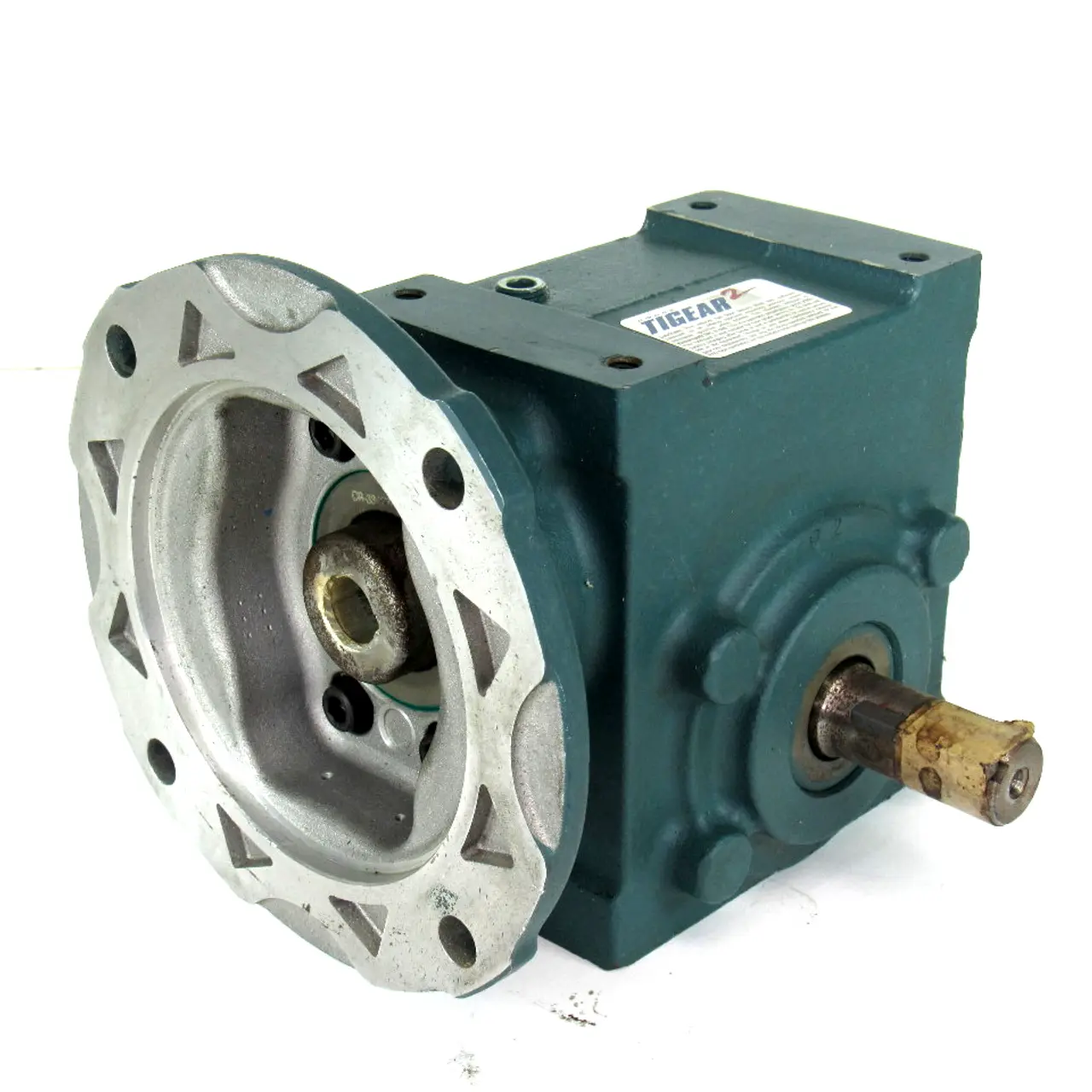

USED DODGE TIGEAR 17Q10R56

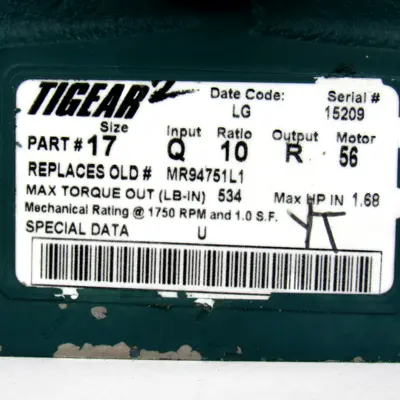

Dodge Tigear-2 17Q10R56 Right Angle Gear Reducer, 10:1 Ratio, 1.68 HP, 1750 RPM @ 1.0 S.F, 534 LB/IN Torque

Used, 30 day warranty included!

LUBRICATION Synthetic
FRAME SIZE 56C
HOUSING MATERIAL Cast Iron
BOX LENGTH 5 1/2 in
RATIO 10:1
OUTPUT TORQUE @ RPM 534 in lb @ 1750 rpm
HP @ RPM 1.5 hp @ 1800 rpm
BOLT CENTERS W/ STD. BASE KIT (IN) 5.875 x 4.5
MOTOR APPLICATION General Purpose
BOLT CENTERS W/ VERTICAL "J" BASE KIT (IN) 8.35 x 2.50
BOLT PATTERN 4.19 x 2.75
CENTER DISTANCE 1 3/4 in
INPUT HP @ RPM 1.67 hp @ 1750 rpm
INPUT (SHAFT OR BORE) SIZE 5/8 in
INPUT HP @ 1750 RPM [MAX] 1.67
BOX HEIGHT 5.85 in
OUTPUT CONFIGURATION Right Output
OUTPUT (SHAFT OR BORE) SIZE 7/8 in
INPUT CONFIGURATION C-Face Quilled
BOX WIDTH 4.89 in
OUTPUT RPM @ 1750 RPM INPUT 175 rpm
OUTPUT RPM @ INPUT RPM 175 rpm @ 1750 rpm
FRAME 56C
TORQUE OUT @ 1750 RPM 534 in lb

SKU: IP08827
UPC: 646412830509
Condition: Used
Availability: In Stock
Weight: 23.44 LBS
Width: 10.00
(in)
Height: 10.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
Type: Right Angle Speed Reducer
MPN: 17Q10R56
Model: 17Q10R56
Shelf: G-14
Part Number: 17Q10R56
Manufacturer: Dodge Tigear
