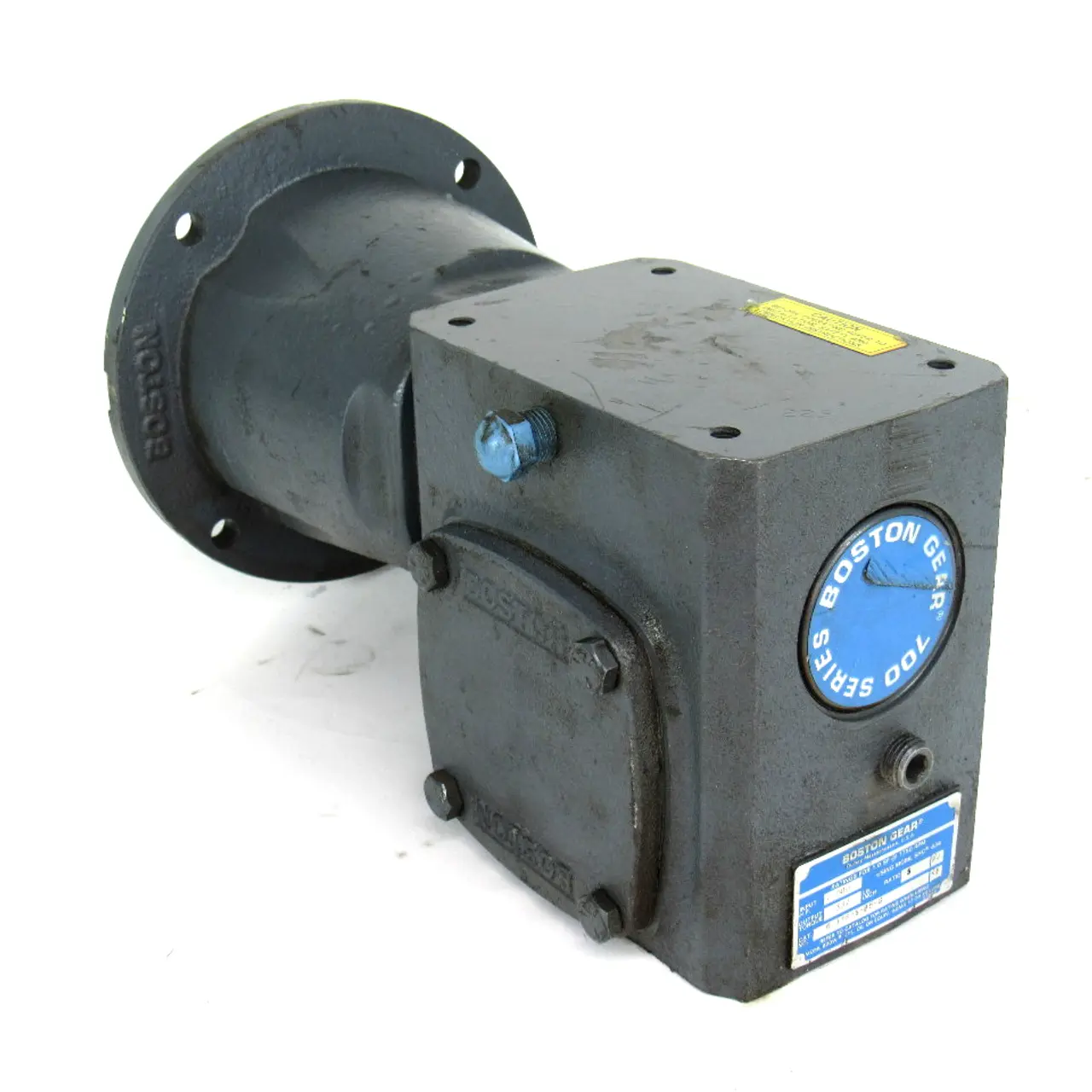

USED BOSTON GEAR RF718-5-B5-G

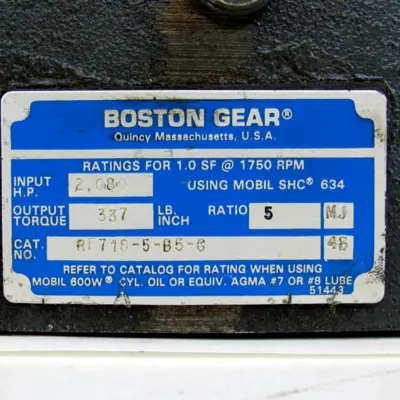

Boston Gear RF718-5-B5-G Speed Reducer, Right Angle, 1.0SF @ 1750 RPM, 2.080 HP, 5:0 Ratio, Output Torque: 337 Lb. Inch

Used, 30 day warranty included!

Reduction Single
Maximum Input Horsepower 2.550 hp @ 1750 rpm
Ratio 5:0
Manufacturer Reducer Size 718
Input Type C-Face Coupling
Input Size 0.6250 in
Output Type Solid Shaft
Output Size 0.8750 in
NEMA / IEC Frame Size 56C
Maximum Output RPM 350.000 @ 1750 rpm input
Maximum Output Torque 460 in-lbs @ 100 rpm
Housing Material Cast Iron
Overhung Load Capacity 500 lb
Standards Met AGMA

SKU: IP15748
UPC: 721814242867
Condition: Used
Availability: In Stock
Weight: 27.00 LBS
Width: 14.00
(in)
Height: 14.00
(in)
Depth: 14.00
(in)
Shipping: Calculated at Checkout
GTIN: 646412830202
Country/Region of Manufacture: United States
Manufacturer: Boston Gear
Part Number: RF718-5-B5-G
Shelf: G-6
Model: RF718-5-B5-G
MPN: RF718-5-B5-G
Type: Right Angle Speed Reducer
