USED RELIANCE ELECTRIC / DODGE TIGEAR P56X1338H / 13Q07R56
Overview
Description

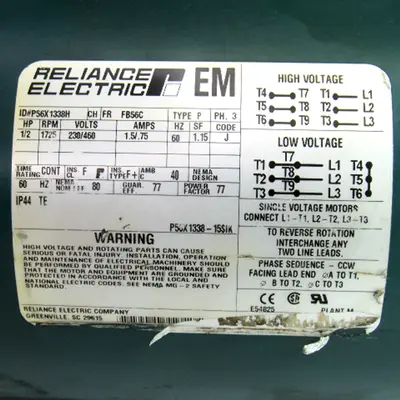

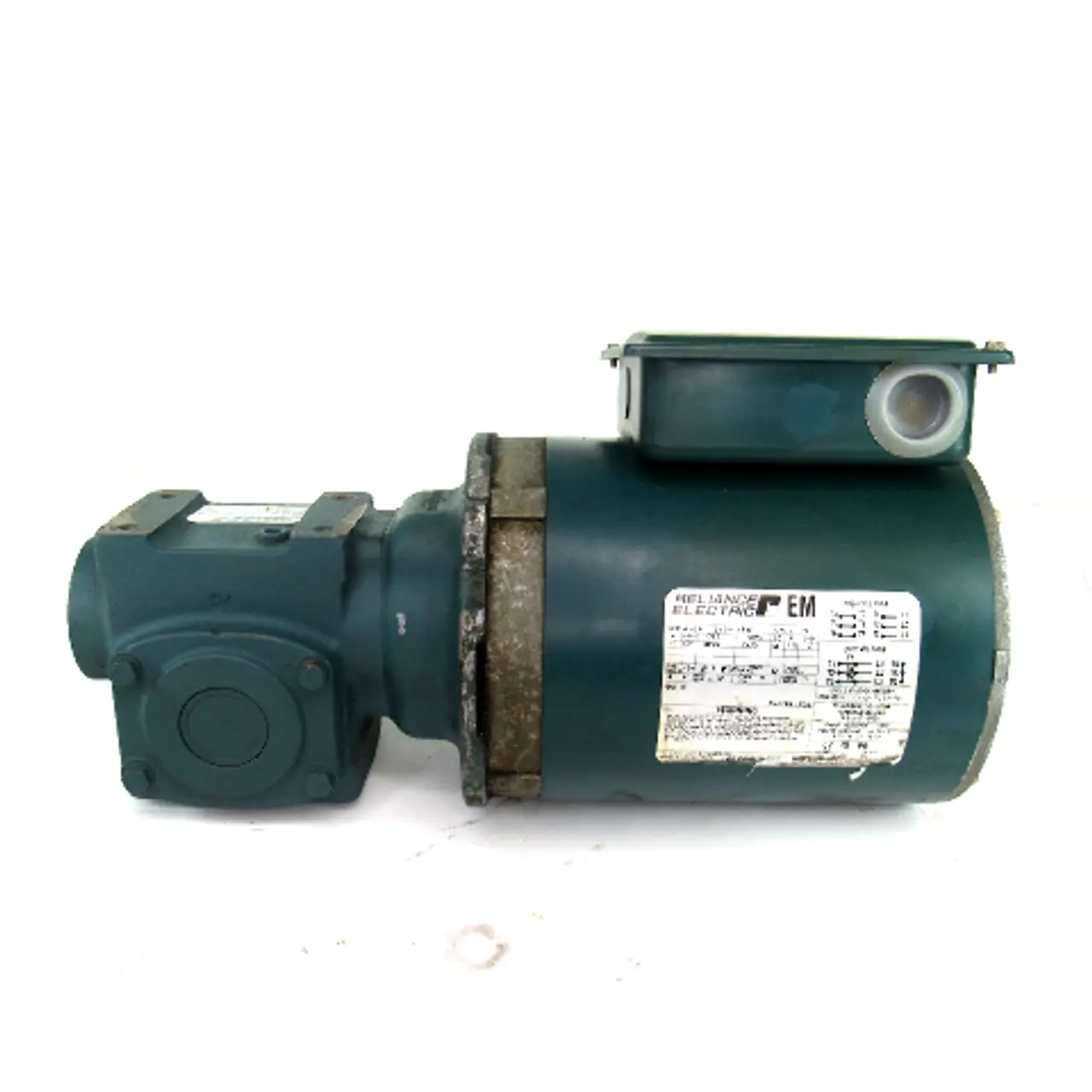

Reliance Electric P56X1338H Electric Motor, 1/2HP, 1725RPM, 230/460V w/ Dodge Tigear 13Q07R56 Right Angle Speed Reducer, 2.27HP, 7.5:1
Used, 30 day warranty included!
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.

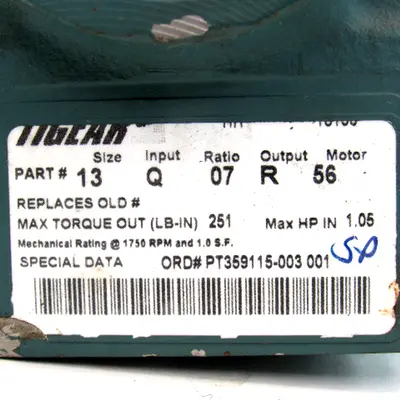

Dodge® Tigear-2® Right Angle Worm Gear Speed Reducer, Size 13 Standard, 7.5:1 Gear Ratio, 2.27 hp, Quill Input, Solid B Shaft Output, 5/8 in Output, 233 rpm Output Maximum, 1750 rpm Input Maximum, 251 in-lb Torque, 1.33 in Centre Distance, 3/16 in L x 3/16 in W x 1-1/2 in H Keyway, 60 to 95 % Efficiency, Right Hand Rotation, Synthetic Oil Lubrication, No Base Mounting, Gray Iron, 7.03 in L x 8 in W x 6.29 in H Dimensions
Specifications
| Weight | 41.38 LBS | 41.38 LBS |
|---|
SKU: IP08549
UPC: 635510927266
Condition: Used
Availability: In Stock
Weight: 41.38 LBS
Width: 18.00
(in)
Height: 18.00
(in)
Depth: 18.00
(in)
Shipping: Calculated at Checkout
Type: Electric Motor and Speed Reducer
Voltage: 230 V
MPN: P56X1338H / 13Q07R56
Horsepower: 1/1
Model: P56X1338H / 13Q07R56
Shelf: G-12
Frame: FB56C
RPM: 1725
Part Number: P56X1338H / 13Q07R56
Phase: 3
Manufacturer: Reliance Electric / Dodge Tigear
Country/Region of Manufacture: United States
GTIN: 635510927266
