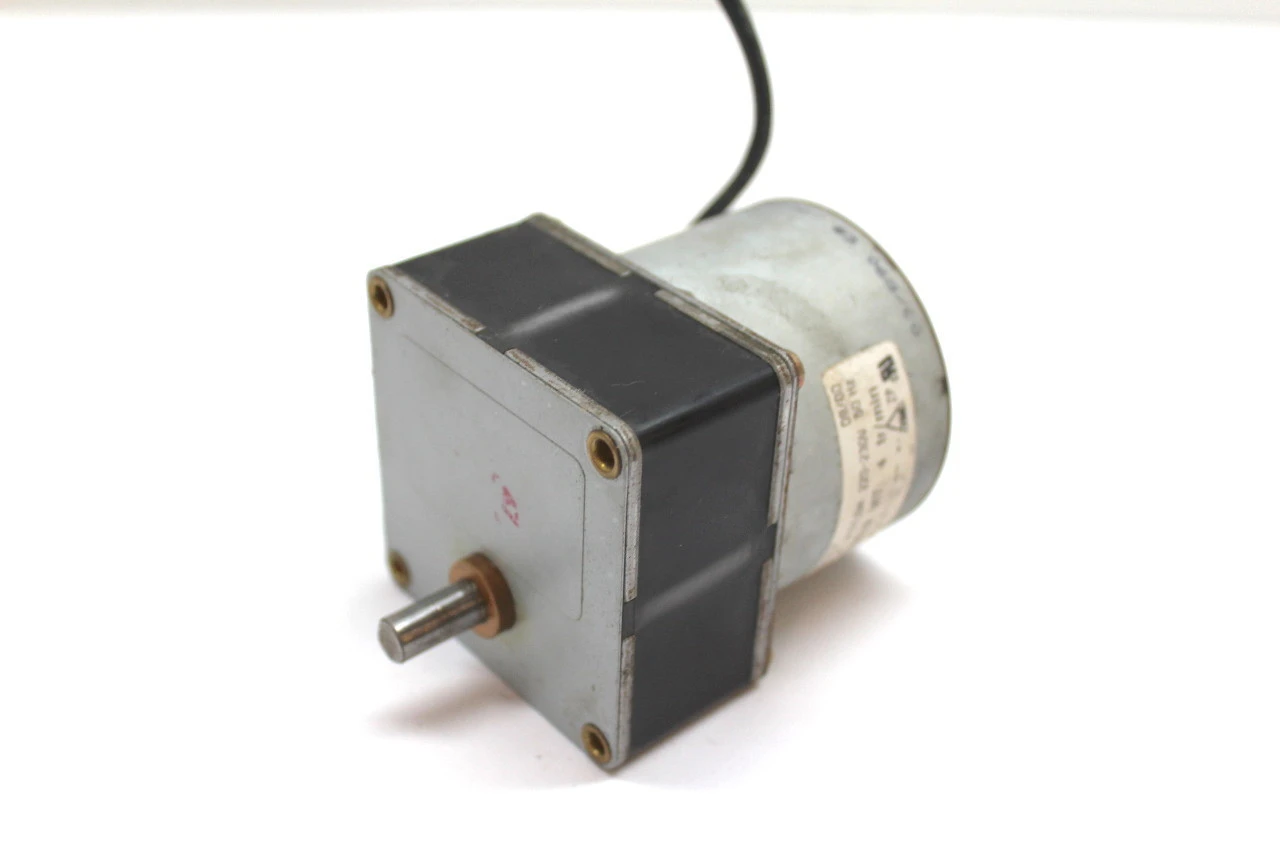

USED CROUZET 80547017

Crouzet Synchronous AC Geared Motor 80547017 Reversible 230-240Vac 4 RPM 7.2W
Product Details
The range of Crouzet Synchronous AC motors with a power rating of 7.2W are small, compact motors with precise speed and short start and stop times. Depending on supply frequency the AC motors can provide a stable speed and the possibility to change rotation direction. Mechanical anti-return handles the route of the rotation. Suitable for use with a comprehensive range of applications where AC motors are used, such as Water treatment, medical equipment, access control and lifts.
Specifications
Attribute
Value
Output Speed
4 rpm
Supply Voltage
230 → 240 V ac
AC Motor Type
Synchronous
Power Rating
7.2 W
Rotation
Reversible
Maximum Output Torque
5 Nm
Shaft Diameter
8mm
Length
65mm
Width
65mm
Depth
76.6mm
Dimensions
65 x 65 x 76.6 mm
Shaft Length
15mm

SKU: IP04592
UPC: 646412788862
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: Gear Motor
MPN: 80547017
Horsepower: 7.2W
Model: 80547017
Shelf: H-20
Shaft Diameter: 8mm
Manufacturer: Crouzet
Country/Region of Manufacture: France
GTIN: 646412788862
