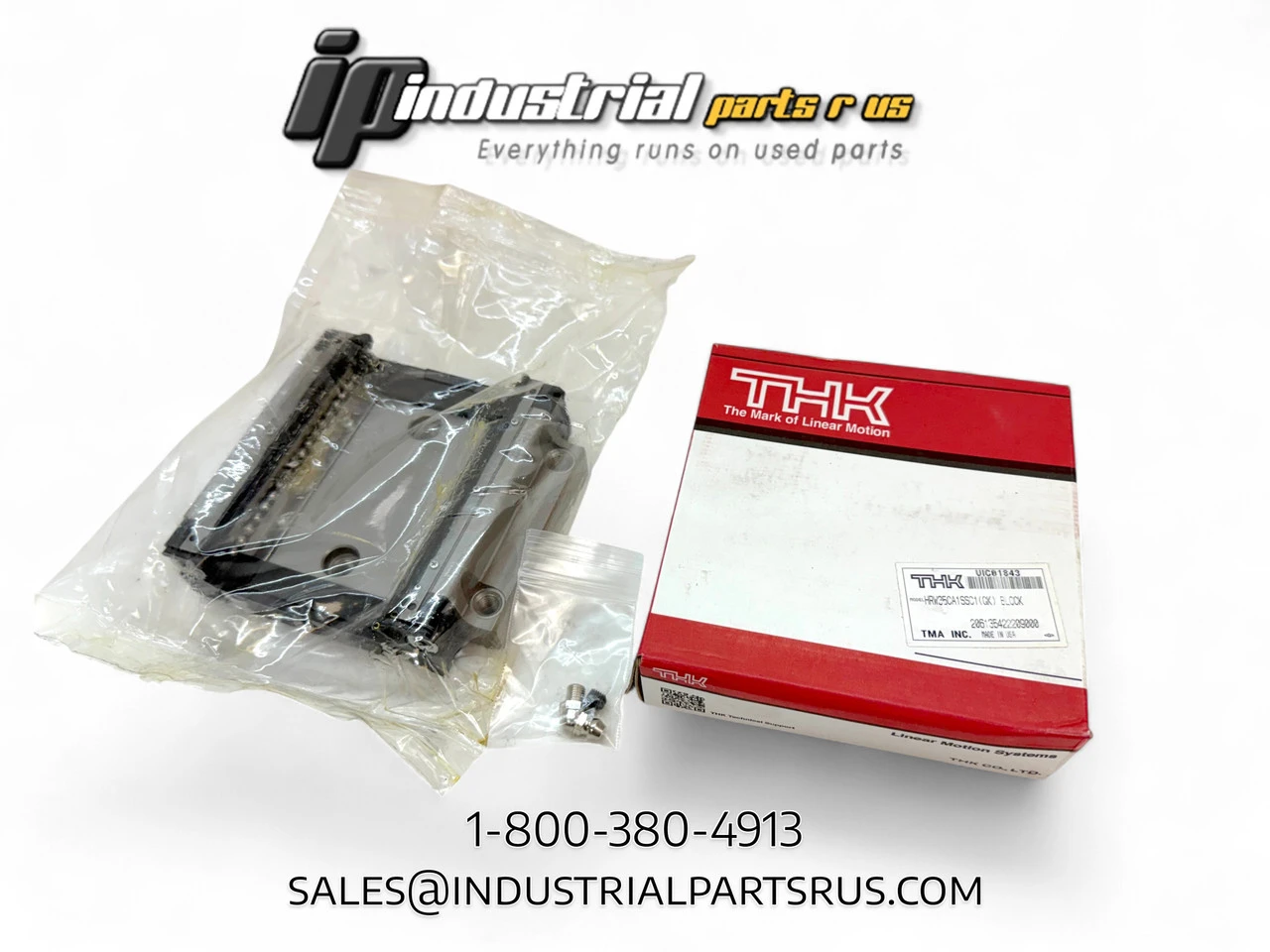

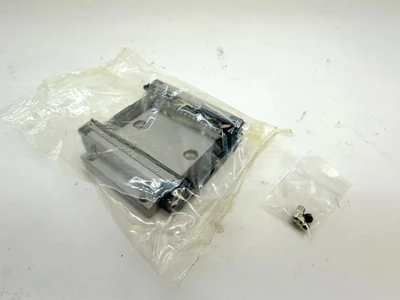

NEW THK HRW35CA1SSC1 (GK)

THK HRW35CA1SSC1 (GK) Linear Guide Block Wide Rail HRW Series NEW
Set/Single Item
Block Only
Block Type
[Wide] CA: Flanged w/Tapped Holes and Middle Holes
Rail Type
Wide Rail
Rail Width W1(mm)
69
Mounting Height M(mm)
35
Material
Carbon Steel
Radial Clearance
Light Preload
Accuracy Grade
Normal Grade (Best Leadtime)
Ball Arrangement
4-Row Circular
Retainer
N/A
Lubrication System
None
Rolling Element
Ball
Basic Load Rating Dynamic Rating C(N)
33800
Basic Load Rating Static Rating Co(N)
48600
Allowable Static Moment MA(N⋅m)
559
Allowable Static Moment MB(N⋅m)
559
Allowable Static Moment MC(N⋅m)
1590
Nominal Part Number
35
Block Mounting Hole Pitch (Width Direction)(mm)
107
Block Mounting Hole Pitch (Length Direction)(mm)
60
Block Mounting Hole Diameter
-
Symbols for Dust Resistance
SS: End and Side Seals (Best Leadtime)
Block external dimension W(mm)
120
Block external dimension L(mm)
106.6
Mounting hole for blocks
Tapped and Thru Holes
Number of Block Mounting Holes(holes)
6
Mounting Hole Dimension S(M)
M8
Mounting Hole Dimension H(ø)
6.8
Mounting Hole Screw Depth(mm)
Through
Block dimension L1(mm)
77.6

SKU: IP15806
UPC: 721814244977
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814244977
Country/Region of Manufacture: United States
Manufacturer: THK
Series: HRW
Shelf: A-4
Model: HRW35CA1SSC1 (GK)
MPN: HRW35CA1SSC1
Type: Linear Guide Block
