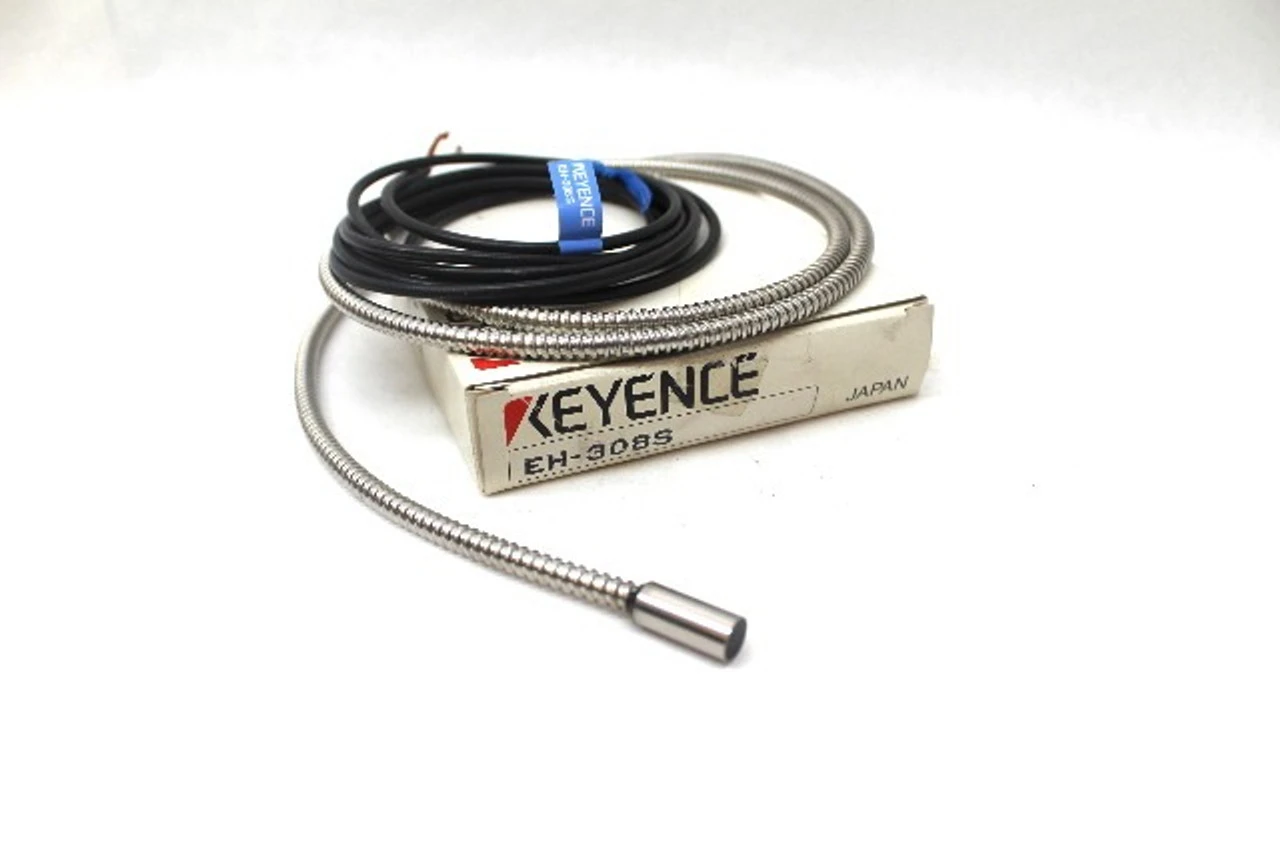

NEW KEYENCE EH-308S

Keyence EH-308S Proximity Sensor Head, Shielded Type, f8, Stainless Steel Tube
Model
EH-308S
Type
with stainless steel spiral tube, Shielded , Cylindrical
Detectable object
Ferrous metals (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm

0.04"
)
10 x 10 mm

0.39" x 0.39"
Stable detecting range
0 to 2 mm
0.08"
Maximum detecting distance
5 mm
0.20"
Hysteresis
0.04 mm
0.002"
Repeatability
0.005 mm
0.0002
"
Temperature characteristics
±10% max. of detecting distance at 23°C

73.4°F
, within -10 to +60°C

14 to 140°F
Environmental resistance
Enclosure rating
IP67
Ambient temperature
-10 to +60 °C

14 to 140 °F

(No freezing)
Relative humidity
35 to 85 % RH (No condensation)
Weight
Approx. 88 g (including nuts and 3-m

9.8'

cable)

SKU: IP0997
UPC: 641752892194
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
MPN: EH-308S
Model: EH-308S
Google Manufacturers Part Number: EH-308S
Manufacturer: Keyence
GTIN: 641752892194
Type: Proximity Sensor
Shelf: O-4
Sensor Type: Solid State
GPS Manufacturers Part Number: EH-308S
Part Number: EH-308S
