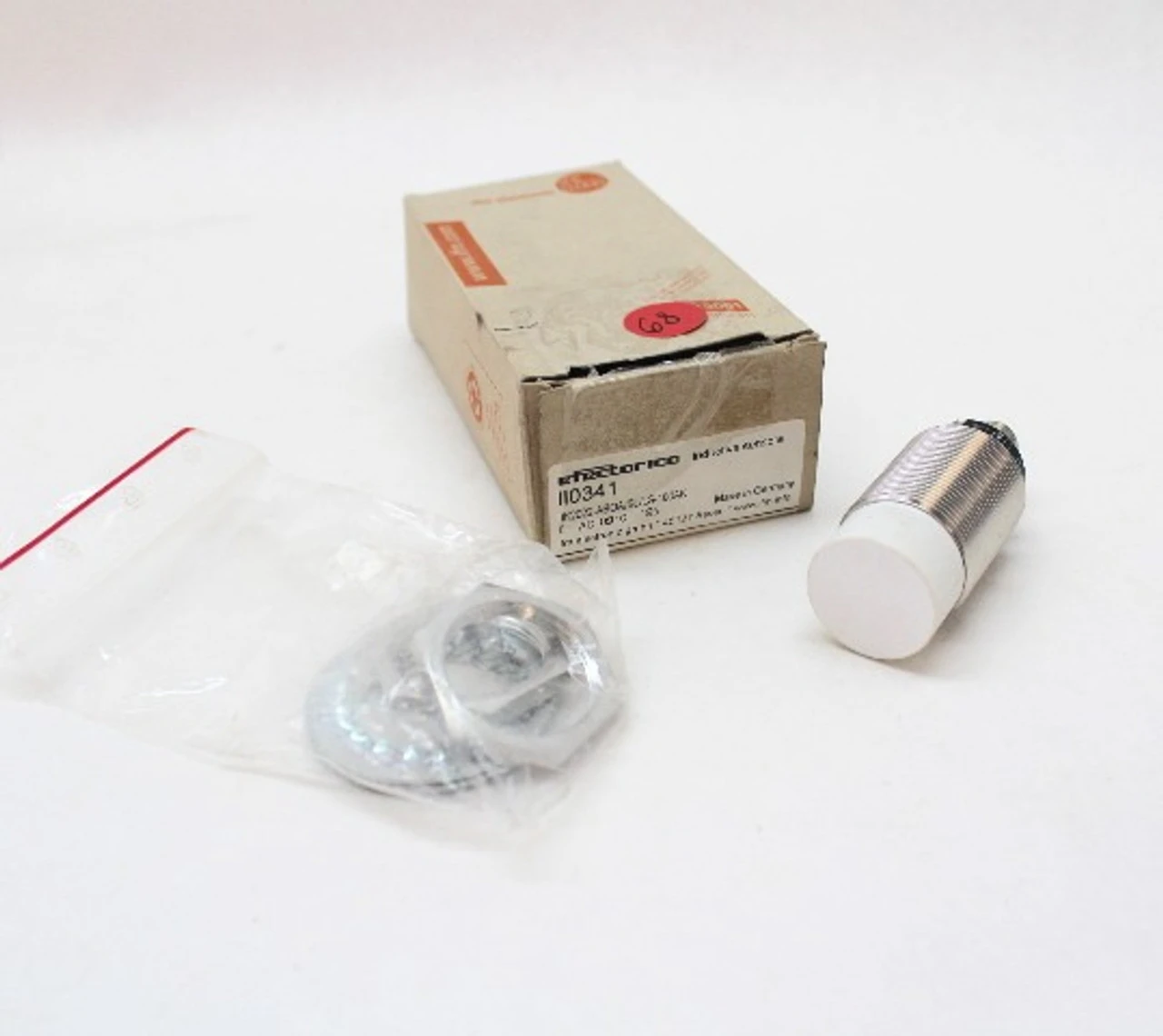

IFM 110341 Inductive Proximity Sensor IIK2022-ABOA/SL/LS-100AK

IFM 110341 Inductive Proximity Sensor IIK2022-ABOA/SL/LS-100AK
Electrical data
Operating voltage [V]
20...250 AC/DC
Protection class
I
Reverse polarity protection
no
Outputs
Output function
normally open
Max. voltage drop switching output DC [V]
6
Max. voltage drop switching output AC [V]
6.5
Minimum load current [mA]
5
Max. leakage current [mA]
1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Permanent current rating of switching output DC [mA]
100
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]
25
Switching frequency DC [Hz]
70
Short-circuit proof
no
Overload protection
no
Monitoring range
Sensing range [mm]
22
Real sensing range Sr [mm]
22 ± 10 %
Operating distance [mm]
0...17.6
Accuracy / deviations
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.48 / copper: 0.4
Hysteresis [% of Sr]
3...20
Switch-point drift [% of Sr]
-10...10
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
606
Mechanical data
Weight [g]
217.5
Housing
Threaded type
Mounting
non-flush mountable
Dimensions [mm]
M30 x 1.5
Thread designation
M30 x 1.5
Material
brass white bronze coated; sensing face: PBT; connector housing: PA
Displays / operating elements
Display
Switching status
1 x LED, red
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Remarks
Recommendation: check the unit for reliable function after a short circuit.
Pack quantity
1 pcs.
Electrical connection - plug
Connector: 1 x 1/2"

SKU: IP04494
UPC: 646412787834
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: Inductive Sensor
MPN: II0341
Model: IIK2022-ABOA/SL/LS-100AK
Shelf: Q-7
Country/Region of Manufacture: Germany
Sensor Type: Solid State
Output Type: Normally Open
GTIN: 646412787834
