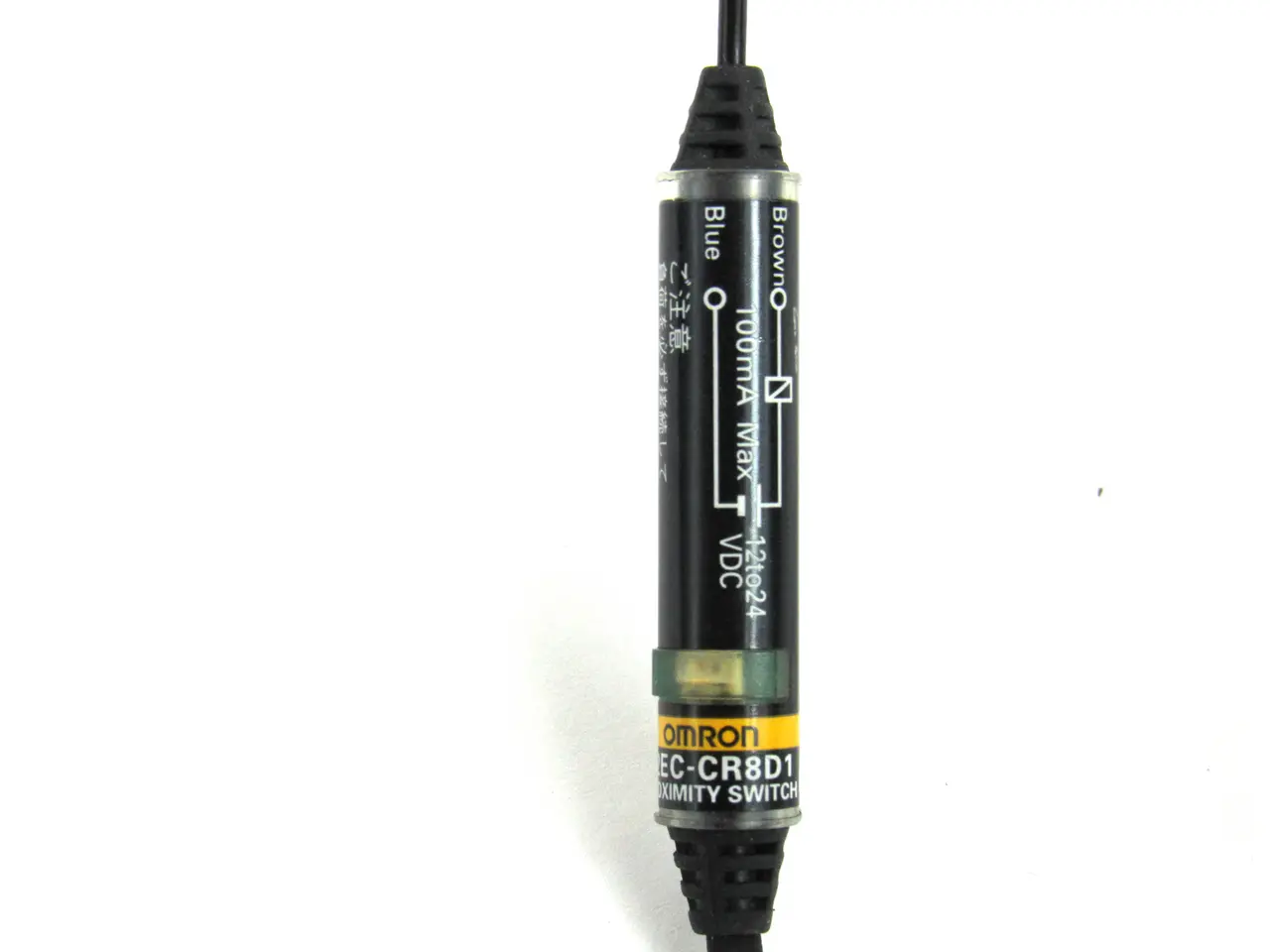

Omron E2EC-CR8D1 Cable Amplifier Proximity Sensor, 12-24V DC -IP67 Type Cylinder type, Shielded Power source DC 2-wire models Sensing distance 0.8 mm å±15% Setting distance 0 to 0.56 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 5 x 5 x 1 mm Response frequency 1.5 kHz (Average value) Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 5 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) MADE IN JAPAN
| Weight | 0.38 LBS | 0.38 LBS |
SKU: IP10669
UPC: 646412848825
Condition: Used
Availability: In Stock
Weight: 0.38 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Proximity Sensor
MPN: E2EC-CR8D1
Model: E2EC-CR8D1
Shelf: N-5
Part Number: E2EC-CR8D1
Manufacturer: Omron
Country/Region of Manufacture: Japan
GTIN: 646412848825
