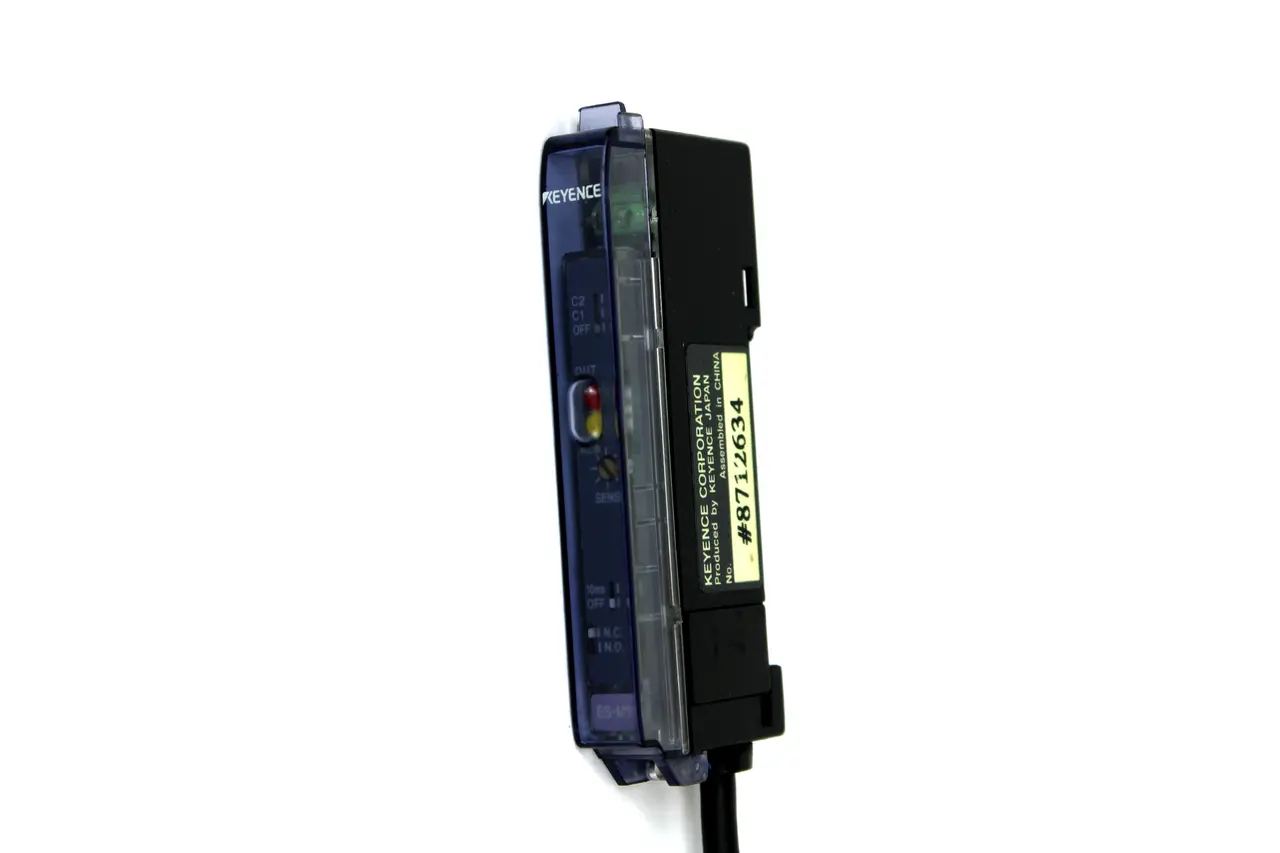

Keyence ES-M1 Sensor Amplifier Unit with 3-Pin Connector, NPN, 12-24 VDC
Overview
Description
Keyence ES-M1 Sensor Amplifier Unit with 3-Pin Connector, NPN, 12-24 VDC
-One-Line Expansion system
-Operation Mode: N.O./N.C. Switch-selectable
-Timer Function: 10-ms delay / timer off switchable
-Output:NPN
-Disconnection Alarm Output: NPN open collector 100mA max. 40V, residual voltage 1V or less
-Response time: 1 ms max.
-Temperature Characteristics: within 8% of detecting distance at +23 degrees C 73.4F when within 0 to 50 degrees C 32 to 122 degrees temperature range
-Sensitivity adjustment: 25-turn trimmer
-Power Voltage: 12-24V DC, Ripple (P-P) 10% or less
-Current/Power Consumption: 25 mA max.
-Ambient Temperature: 0 to +50C 32 to 122F
ASSEMBLED IN CHINA
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: IP10772
UPC: 646412849839
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
GTIN: 646412849839
Shelf: O-7
