USED BALLUFF BMF 307K-PS-C-S49-200
Overview
Description

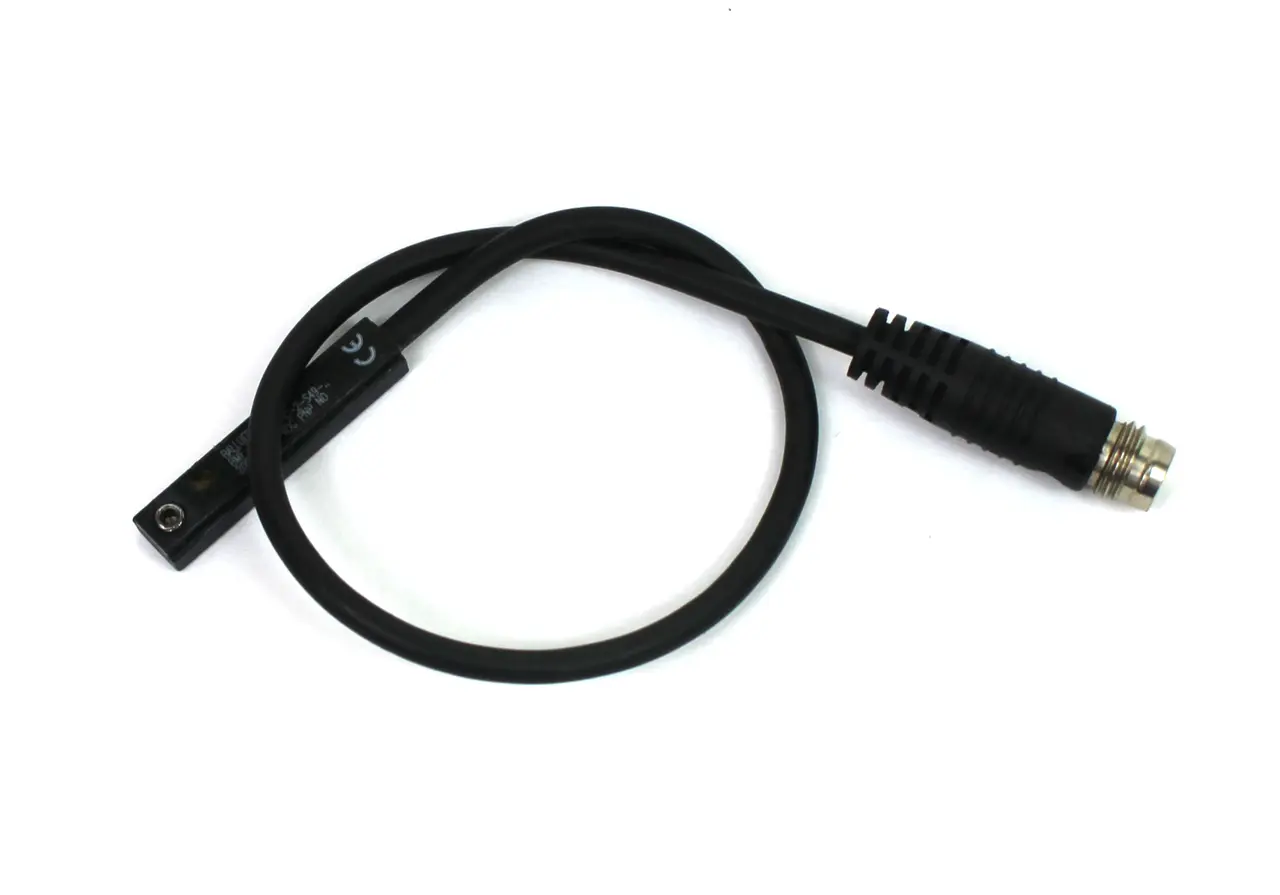

Balluff BMF 307K-PS-C-2-S49-200 Magnetic Cylinder Sensor
- Dimension : 29 x 6.2 x 4.4 mm
- Principle of operation : Magnetic field sensor
- Connection : M8x1-Male, 3-pin
- Cable : PUR, 0.2 m
- Housing material : LCP
- Switching output : PNP Normally open (NO)
- Switching frequency : 10000 Hz
- Operating voltage Ub : 10...30 VDC
- Ambient temperature : -25...85 °C
- IP rating per IEC 60529 : IP67
- Approval/Conformity : CE
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: IP12432
UPC: 635510919087
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Magnetic Sensor
Voltage: 24VDC
MPN: BMF 307K-PS-C-S49-200
Model: BMF 307K-PS-C-S49-200
Shelf: N-10
Amperage: 200mA
Manufacturer: Balluff
Sensor Type: Magnetic Cylinder Senor
GTIN: 635510919087
Part Number: 307K-PS-C-2-S49-200
