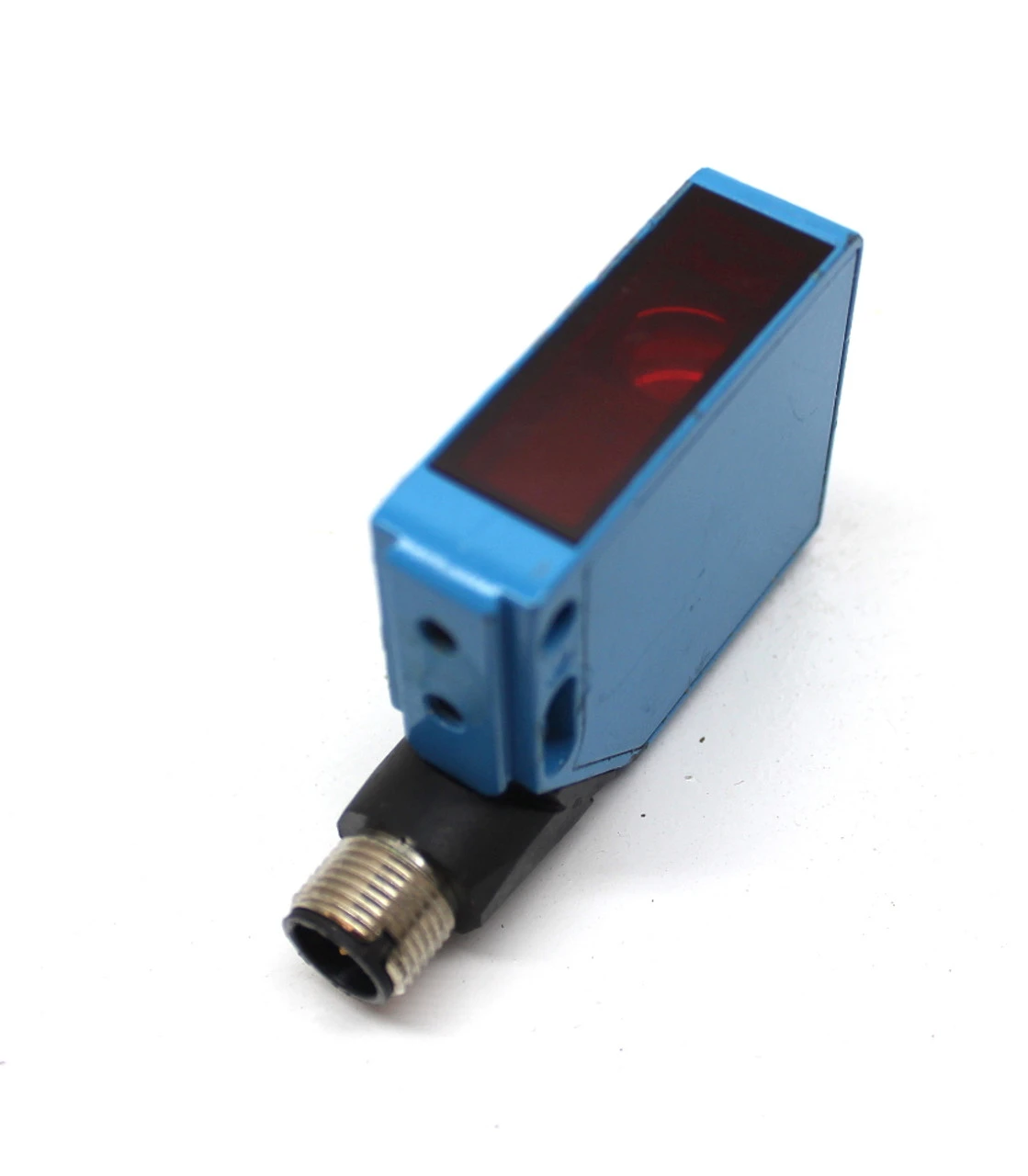

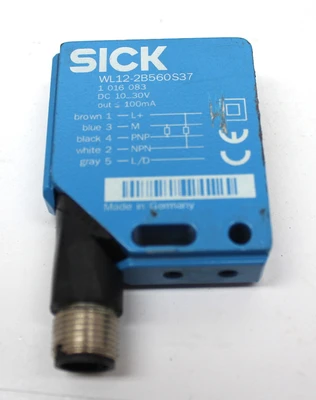

Sick WL12-2B560S37 Retro-Reflective Photoelectric Sensor 10-30V, 0-4m Range, M12

Sick WL12-2B560S37 Retro-Reflective Photoelectric Sensor 10-30V, 0-4m Range, M12 5 Pin Connector 1016080
Features
Sensor/detection principle: Photoelectric retro-reflective sensor
Dimensions: (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission): Rectangular
Sensing range max.: 0 m ... 4 m 1)
Sensing range: 0 m ... 3.5 m 1)
Type of light: Visible red light
Light source: LED
Adjustment: Potentiometer
Mechanics/electronics
Supply voltage: 10 V DC ... 30 V DC
Ripple: ≤ 5 Vpp
Power consumption: ≤ 30 mA
Switching mode: Light/dark switching
Response time: ≤ 330 µs
Connection type: Male connector M12, 5-pin
Housing material: Zinc diecast, Zinc diecastmetal, metal
Optics material: Plastic, PMMA
Enclosure rating: IP 67
Ambient operating temperature: –40 °C ... +60 °C

SKU: IP6339
UPC: 641752903401
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Google Manufacturers Part Number: WL12-2B560S37
Shelf: M-9
Range: 0-4m
Part Number: 1016080
Manufacturer: Sick
Country/Region of Manufacture: Germany
Sensor Type: Solid State
GTIN: 641752903401
GPS Manufacturers Part Number: WL12-2B560S37
