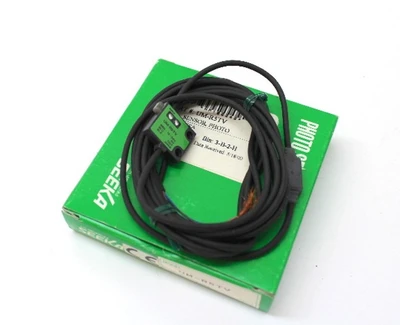

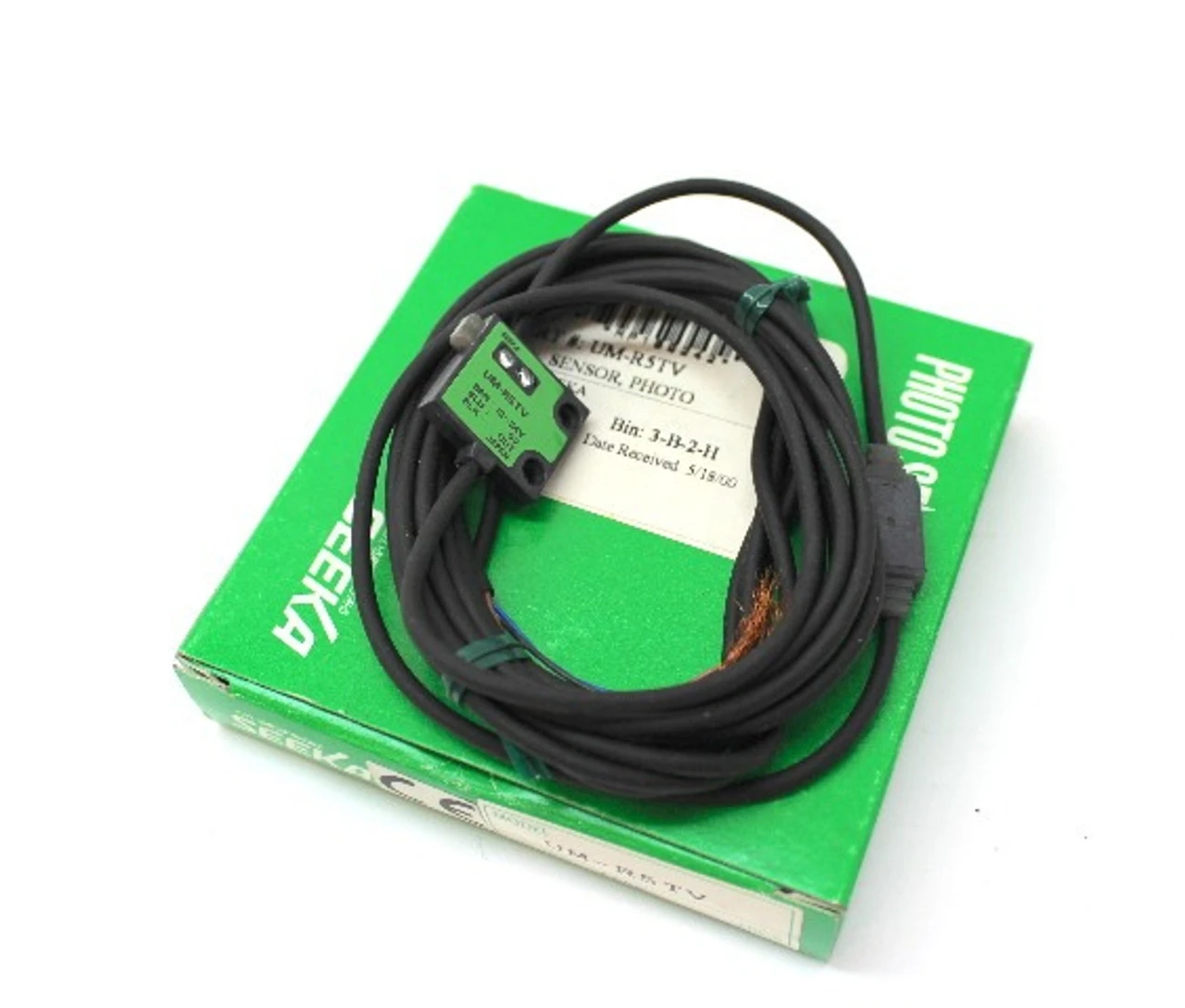

NEW TAKEX UM-R5TV

Takenaka Takex UM-R5TV Photoelectric Sensor Diffuse Reflective 2-50mm Range 12-24V
Detection method
Diffuse reflective
Detecting distance
2-50mm
(50x50mm white drawing paper)
Detection object
Opaque, translucent, transparent
Power supply
12-24V DC±10% / Ripple 10% or less
Current consumption
27mA
or less
Output mode
NPN open collector
Rating: sink current 80mA (30 VDC) or less
Operation mode
(See the Type table in the previous page)
Response time
0.5ms or less
Hysteresis
Up to 10% of detecting distance
Light source (light wavelength)
Red LED (640nm)
Indicator
Operation indicator (red LED),
Stability indicator (green LED)
Volume (VR) *
in-line
sensitivity
adjustment
Material
Case : Liquid crystalline polyester (filler: polypropylene)
Lens : Acryl resin
Connection
Attached cable (dia. 2.8)
0.15 mm
2

x 3 cores 2m (black)
Weight
Approx.
40g
Notes
* The distance between the sensor and the in-line volume for sensitivity adjustment is fixed to 300mm.
Accessory
Instruction manual, mounting screws, washers, nuts,
screwdriver for adjustment (attached to the model whose model number ends with “V”)
Ambient light
3,000 lx or less
Ambient temperature
-25 - +55C (non-freezing)
Ambient humidity
35-85%RH (non-condensing)
Protective structure
IP64
Vibration
10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction

SKU: IP545838549
UPC: 646412783409
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: Photoelectric Sensor
Voltage: 12-24V
MPN: UM-R5TV
Model: UM-R5TV
Shelf: Q-7
Manufacturer: Takex
Country/Region of Manufacture: Japan
Sensor Type: Solid State
Output Type: Open Collector
GTIN: 646412783409
GPS Manufacturers Part Number: UM-R5TV
