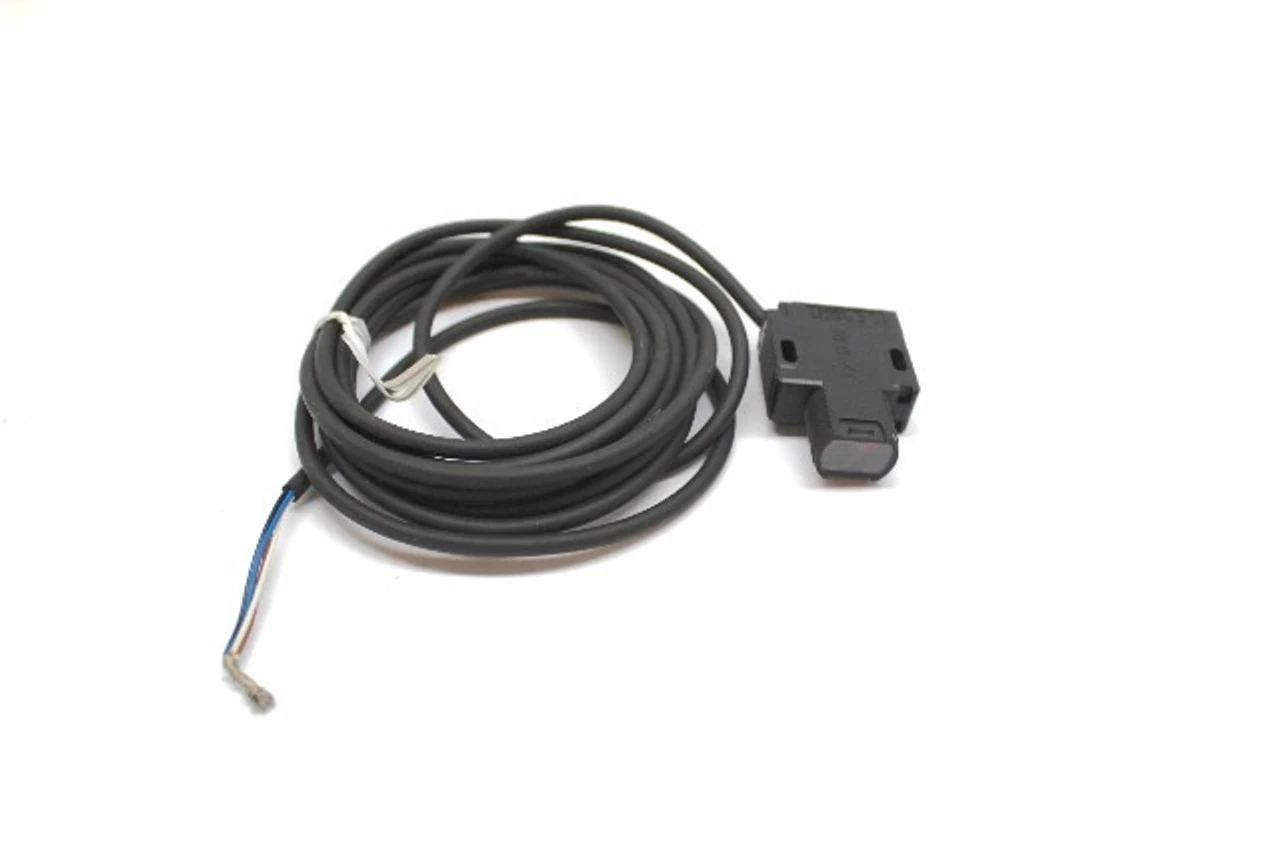

NEW KEYENCE PZ-G61B

Keyence PZ-G61B Retro-reflective Photoelectric Sensor NPN 24V
Model
PZ-G61B
Type
Retro-reflective

*1
Long-range
(with P.R.O.
function)
Shape
Threaded
Output
Bipolar
(NPN+PNP)
Cable connection
Cable (2 m

78.74"
)

*2
Detecting distance
0.1 to 4.2 m
0.3' to 13.8'
(When R-2L
reflector
is used)
Spot diameter
―
Light source
Red LED
Sensitivity adjustment
1-turn trimmer (230°)
Response time
500 µs
Operation mode
LIGHT-ON/DARK-ON (switch-selectable)
Indicators (LED)
Output: Orange LED,
Stable operation: Green LED
Control output
Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
Protection circuit
Reversed polarity, overcurrent protection, surge absorber
Interference suppression
Up to 2 units
(with the automatic different frequency function)
Tightening torque
Threaded models (front M18 part): 1.0 N m max., (side slotted hole part): 0.5 N m max.
Rating
Power voltage
10 to 30 VDC, including Ripple (P-P) 10 %
Current consumption
34 mA or less
Environmental resistance
Enclosure rating
IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
Ambient light
Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature
-20 to +55 °C

-4 to 131 °F

(No freezing)
Relative humidity
35 to 85 % RH (No condensation)
Vibration resistance
10 to 55 Hz, Double amplitude 1.5 mm

0.06"
, 2 hours in each of the X, Y, and Z directions
Shock resistance
1,000 m/s
2
, 6 times in each of the X, Y, and Z directions
Material
Housing, M18 nut
(threaded models only)
Glass-fiber reinforced PBT
Lens cover
Acrylic
(PMMA)
Trimmer
Glass-fiber reinforced polyamide (PA)
Case connection
Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
Cable (cable models only)
Polyvinyl chloride (PVC)
Connector (connector type with cable only)
―

SKU: IP04583
UPC: 646412788787
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: Photoelectric Sensor
MPN: PZ-G61B
Model: PZ-G61B
Google Manufacturers Part Number: PZ-G61B
Shelf: O-7
Series: KV
Manufacturer: Keyence
Country/Region of Manufacture: Japan
Sensor Type: Solid State
Output Type: Open Collector
GTIN: 646412788787
GPS Manufacturers Part Number: PZ-G61B
