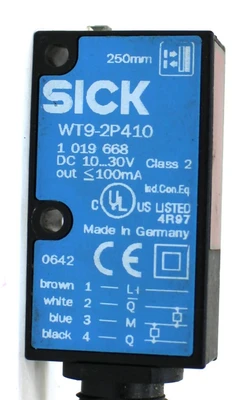

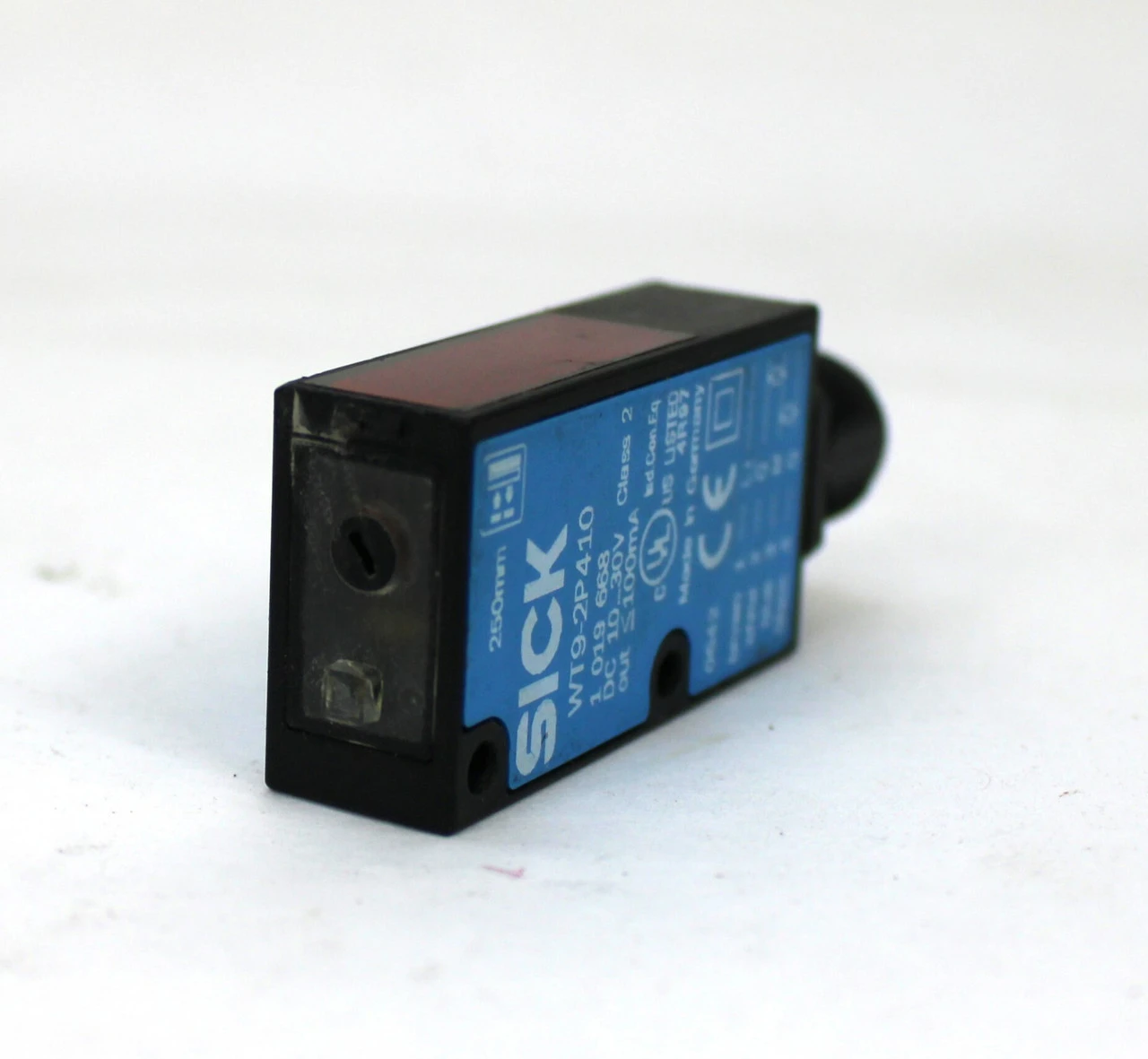

USED SICK WT9-2P410
Overview
Description
Sick WT9-2P410 Optical Sensor, 10...30V
Sensor/ detection principle
Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D)
12 mm x 40 mm x 22 mm
Housing design (light emission)
Rectangular
Sensing range max.
30 mm ... 250 mm
1)
Sensing range
30 mm ... 250 mm
1)
Type of light
Infrared light
Light source
LED
Supply voltage
10 V DC ... 30 V DC
Ripple
≤ 5 V
pp
Power consumption
30 mA
1)
Switching output
PNP
Switching mode
Light/dark switching
Response time
≤ 500 µs
2)
Connection type
Male connector M12, 4-pin
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP69K
Ambient operating temperature
–40 °C ... +60 °C
Ambient storage temperature
–40 °C ... +75 °C
UL File No.
NRKH.E181493 & NRKH7.E181493
Specifications
| Weight | 0.31 LBS | 0.31 LBS |
|---|
SKU: IP05259
UPC: 646412795396
Condition: Used
Availability: In Stock
Weight: 0.31 LBS
Width: 9.00
(in)
Height: 2.00
(in)
Depth: 5.00
(in)
Shipping: Calculated at Checkout
Input Voltage: 10-30V
Type: Photoelectric Sensor
MPN: WT9-2P410
Model: WT9-2P410
Google Manufacturers Part Number: WT9-2P410
Shelf: P-7
Part Number: 1019668
Manufacturer: Sick
Country/Region of Manufacture: Germany
Sensor Type: Solid State
Output Type: PNP
GTIN: 646412795396
GPS Manufacturers Part Number: WT9-2P410
