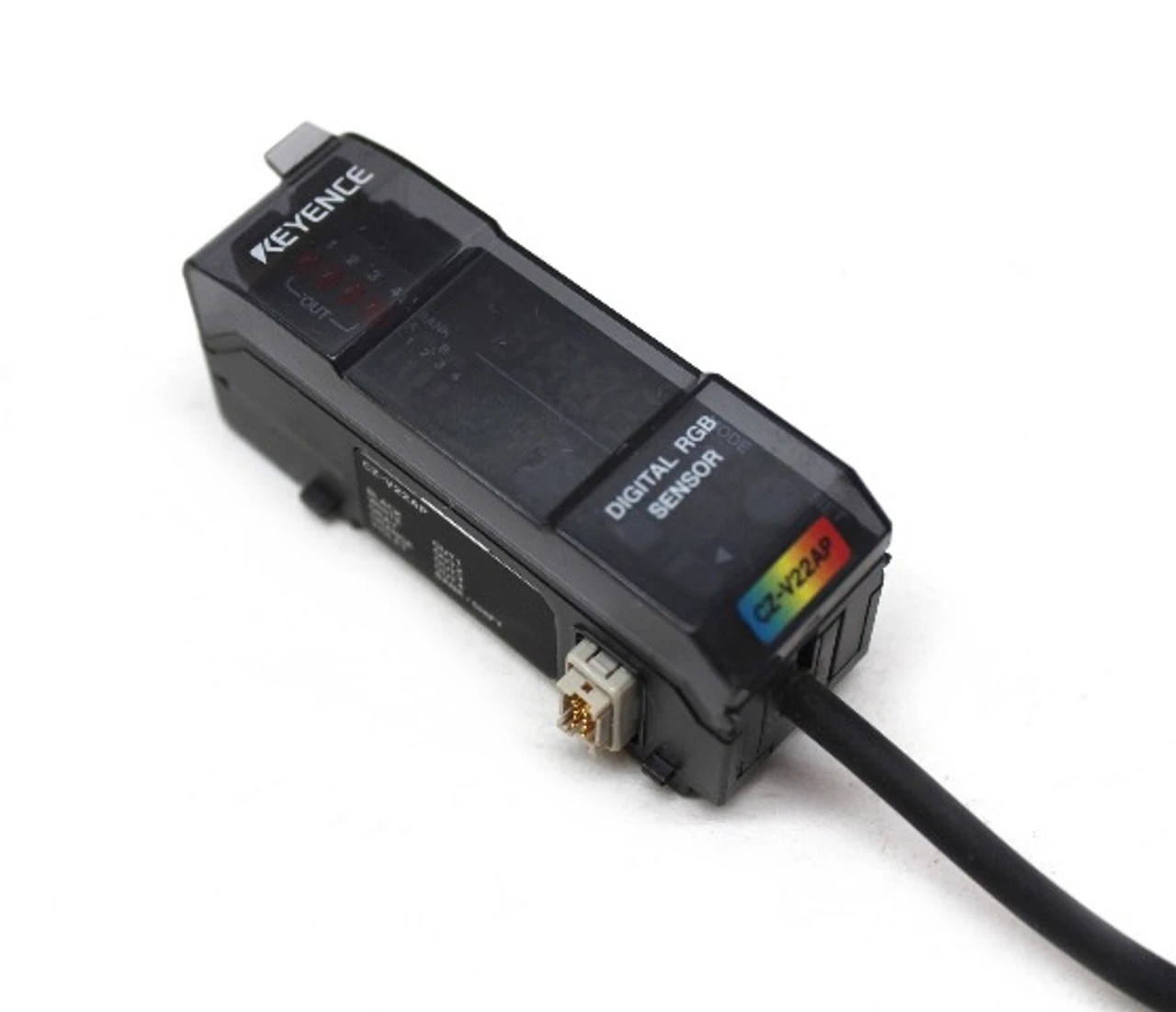

USED KEYENCE CZ-V22AP

Keyence CZ-V22AP Digital RGB Sensor Amplifier Unit, Expansion Unit, PNP. åÊUnits are in good condition but cord lengths do run a little short. åÊCable lengths vary from 7-10".
Model
CZ-V22AP
*1
Output
PNP output
Main unit/expansion unit
Expansion unit
Response time
200 ë_s (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
Control output
PNP open-collector x 4 channels, 30 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.
*2
Protection circuit
Reverse-polarity protection, overcurrent protection, surge absorber
External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode)
Input time: 20 ms min.
Timer function
Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)
Unit expansion
Up to 3 units (4 units total including the main unit)
Number of interference prevention units
0 for HIGH SPEED; 2 for FINE/TURBO/SUPER
Rating
Power voltage
24 VDC, Ripple (P-P) 10 % or less
Power consumption
Normal mode: 1.5 W (62.5 mA or less), Eco-mode: 1 W (42.0 mA or less)
Environmental resistance
Ambient temperature
-10 to +55 å¡C
åÊ
14 to 131 å¡F
åÊ
(No freezing)
*3
Vibration resistance
10 to 55 Hz, Double amplitude 1.5 mm
åÊ
0.06"
, 2 hours in each of the X, Y, and Z axis
Material
Housing, cover: Polycarbonate
Accessories
End Unit ÌÑ 2
Weight
Approx. 100 g

SKU: IP504305615
UPC: 646412771871
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 646412771871
Sensor Type: Solid State
Country/Region of Manufacture: Japan
Manufacturer: Keyence
Shelf: O-6
Model: CZ-V22AP
MPN: CZ-V22AP
Voltage: 12-24 Vdc
Type: Digital RGB Sensor
