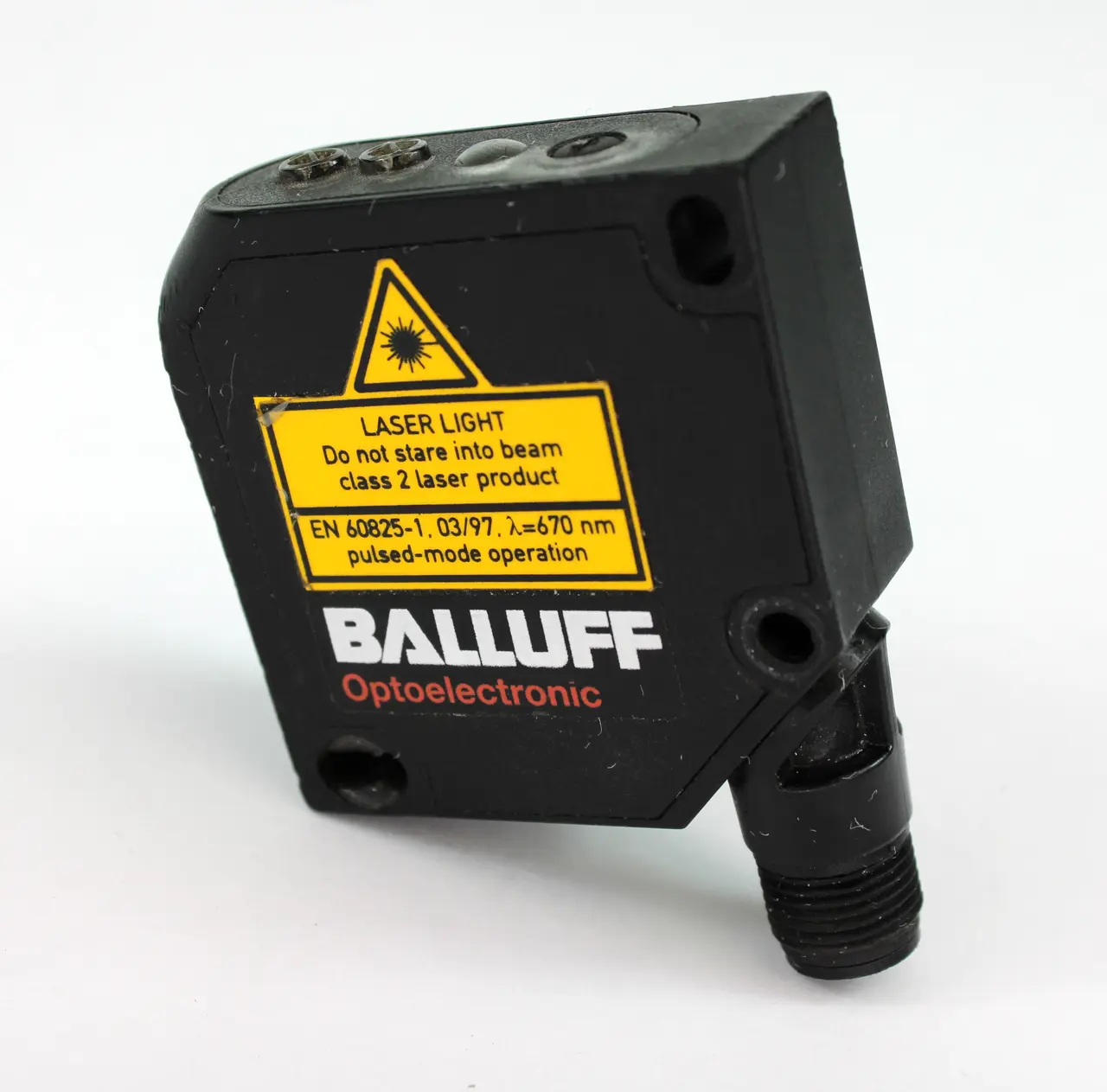

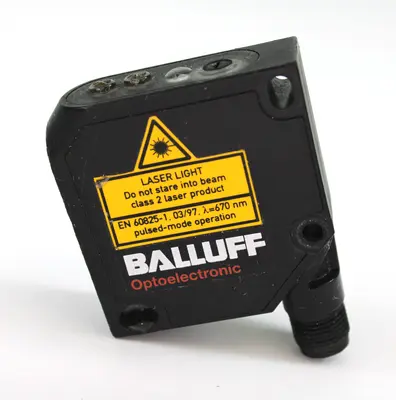

USED BALLUFF BOS 26K-PA-1LQB-S4-C

Photoelectric Sensor
BOS 26K-PA-1LHB-S 4-C
Sn=150mm
Diffuse, Background suppression
Sensortype
Switching frequency
Rated operating distance Sn in mm
asured operating distance Sa
Repeat accuracy
Hysteresis
Indication Supply Voltage
Indication Switching element on
Indication Special funktion
Ambient temperature
On-delay
Off-delay
Light
Sensitivity Adjustment
Blind zone / min Reflector distance
Special function
Permissable ambient light
Output function
Diffuse, Background suppression
2500 Hz
150
adjustable
< 5% from Sn
< 5%
yes, green LED
yes, yellow LED
Contamination indicator, red LED
0...+45å¡C
<0,2ms
<0,2ms
Laser, red, 660nm, Protection class 2
2 turn Poti
30mm/-
Background suppression
5000 Lux
light-on or dark-on
Mechanical Data
Measurements
Shock
Vibration
Housing material
Material of sensing face
Degree of protection
Connection
Connection turnable
Weigth
50x50x17
Halfsinus, 30gn, 11ms
10...55Hz, 1,5mm Amplitude 3x2h
ABS UL 94 V-O
PMMA
IP67
Connector S4 (M12)
Connector 90å¡ turnable
100g
Electrical Data
Current
Switching function
Output
Rated operational voltage Ue
Rated operational current Ie
Supply Voltage
Ripple
Frequency of Supply Voltage
No-load supply current
Voltage drop
Short protection
Protected against polarity reversal
Rated insulation voltage
max. Load capacity
DC
NO/NC
PNP
24V DC
200mA
10...30V DC
< 10% from UB
DC
<50mA
<2,4V
yes
yes
250V AC
0,33åµF

SKU: IP5409
UPC: 641752899711
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Photoelectric Sensor
Voltage: 10-30 Vdc
MPN: BOS 26K-PA-1LQB-S4-C
Model: BOS 26K-PA-1LQB-S4-C
Shelf: N-11
Series: BOS-26K
Range: 30-300mm
Manufacturer: Balluff
Country/Region of Manufacture: Germany
GTIN: 641752899711
