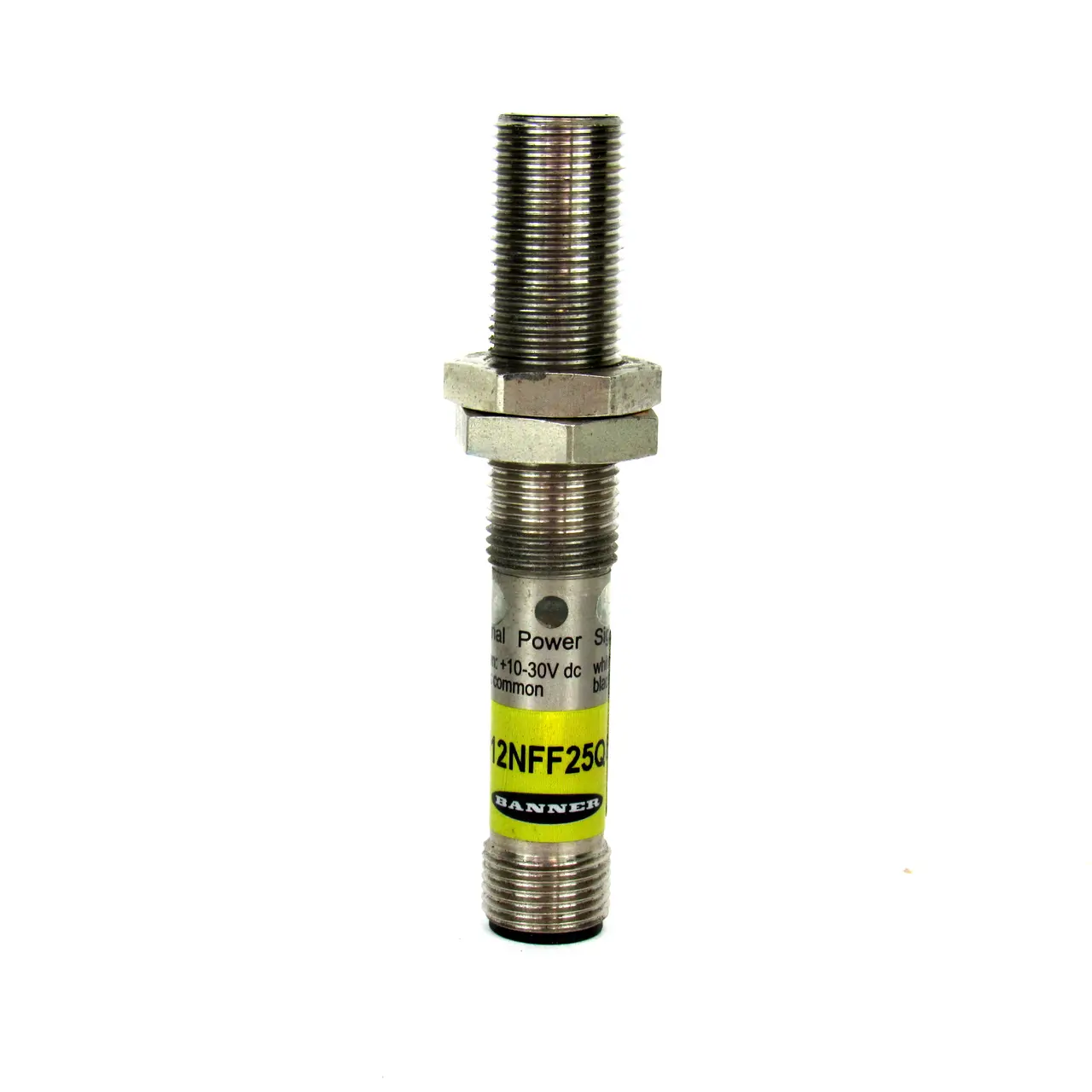

USED BANNER M12NFF25Q8

Banner M12NFF25Q8 Photoelectric Proximity Sensor, 10-30V DC, 25mm
-Sensing Beam Visible Red LED
Power DC
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Barrel
Primary Housing Material Nickel-Plated Brass
Input/Output Discrete
Max Sensing Distance (mm) 25
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 60
Output response time (ms) 0.5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 680
Delay at Power-up (ms) 100
Repeatability (µs) 95
Number of Pins 4
NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
IP Rating IP67, IP68
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material PMMA
Adjustments N/A
Barrel Diameter (mm) 12
Indicator LEDs
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Feature: Quick Disconnect Yes
DeviceNet No
IO Link No

SKU: IP09359
UPC: 646412835863
Condition: Used
Availability: In Stock
Weight: 8.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Photoelectric Proximity Sensor
MPN: M12NFF25Q8
Model: M12NFF25Q8
Shelf: P-8
Part Number: M12NFF25Q8
Manufacturer: Banner
Sensor Type: Solid State
GTIN: 646412835863
