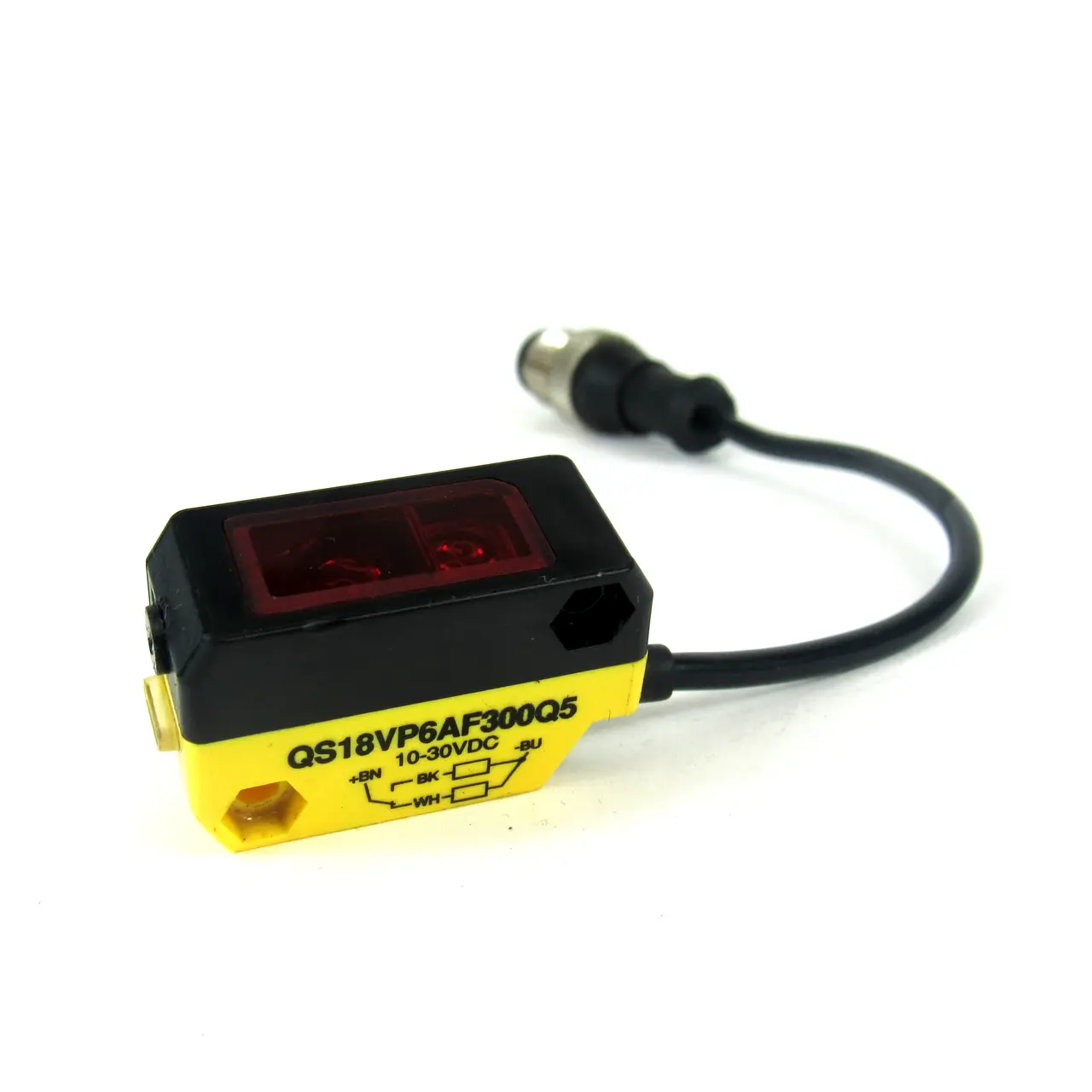

USED BANNER QS18VP6AF300Q5

Banner QS18VP96AF300Q5 Photoelectric Sensor, 10-30V DC

Sensing Beam Visible Red LED
Power DC
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 300
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 2.5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 200
Repeatability (µs) 250
Number of Pins 4
IP Rating IP67
NEMA Rating NEMA 6
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Mechanical Screw
Barrel Diameter (mm) N/A
Indicator LEDs
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Feature: Quick Disconnect Yes
DeviceNet No
IO Link No

SKU: IP10048
UPC: 646412842649
Condition: Used
Availability: In Stock
Weight: 0.38 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Photoelectric Sensor
MPN: QS18VP6AF300Q5
Model: QS18VP6AF300Q5
Shelf: P-8
Part Number: QS18VP6AF300Q5
Manufacturer: Banner
Sensor Type: Solid State
GTIN: 646412842649
