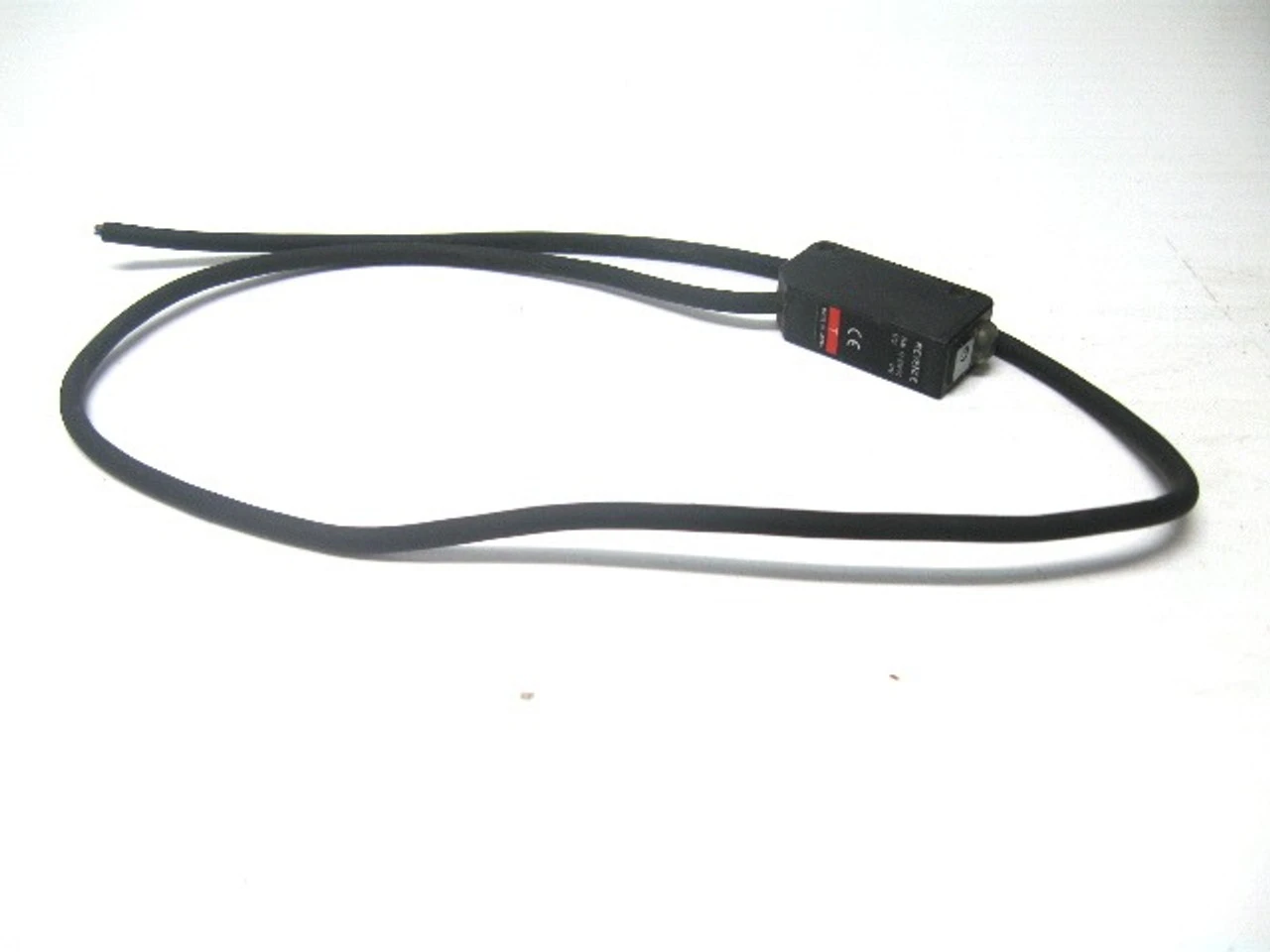

Keyence PZ-M51 Self Contained Thrubeam Photoelectric Sensor NPN, 12-24Vdc

Keyence PZ-M51 Self Contained Photoelectric Sensor 12-24 Vdc
Model
PZ-M51
Type
Thrubeam
Output
NPN
Detecting distance
10 mÌ´Ì_
32.8'
*1
Setting distance
åäÌÝå´
Light source.
Red LED
Sensitivity adjustment
1-turn trimmer (230Ì´åÁ)
Response time
1.5 ms max.
Operation mode
LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp
Output and power: Orange LED, Stable operation: Green LED
*2
Control output
100 mA (24 V) max., Residual voltage: 1 V max.
Digital monitor
åäÌÝå´
Protection circuit
Reversed polarity, overcurrent protection, surge absorber
Rating
Power voltage
12 to 24 VDC Ì´å±10%, Ripple (P-P): 10% max., Class 2
Power consumption
T: 24 mA max. , R: 27 mA max.
Environmental resistance
Enclosure rating
IP67
Operating ambientluminance
Incandescent lamp 5000 lux max., Sunlight: 20000 lux max.
Operating temperature range
-20 to +55Ì´åÁCÌ´Ì_
-4 to 131Ì´åÁF
, No freezing
Operating ambient humidity
35 to 85% RH (No condensation)
Vibration
10 to 55 Hz, double amplitude 1.5 mmÌ´Ì_
0.06"
, 2 hours for each of X,Y,Z axis
Shock resistance
1,000 m/s
2
, 6 times in each of the X, Y, and Z directions
Case material
Glass-fiber reinforced plastic
Accessories
åäÌÝå´
Weight
T: Approx 50 g
R: Approx 50 g (including 2-mÌ´Ì_
6.6
' cable)

SKU: IP480516389
UPC: 641752904804
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
