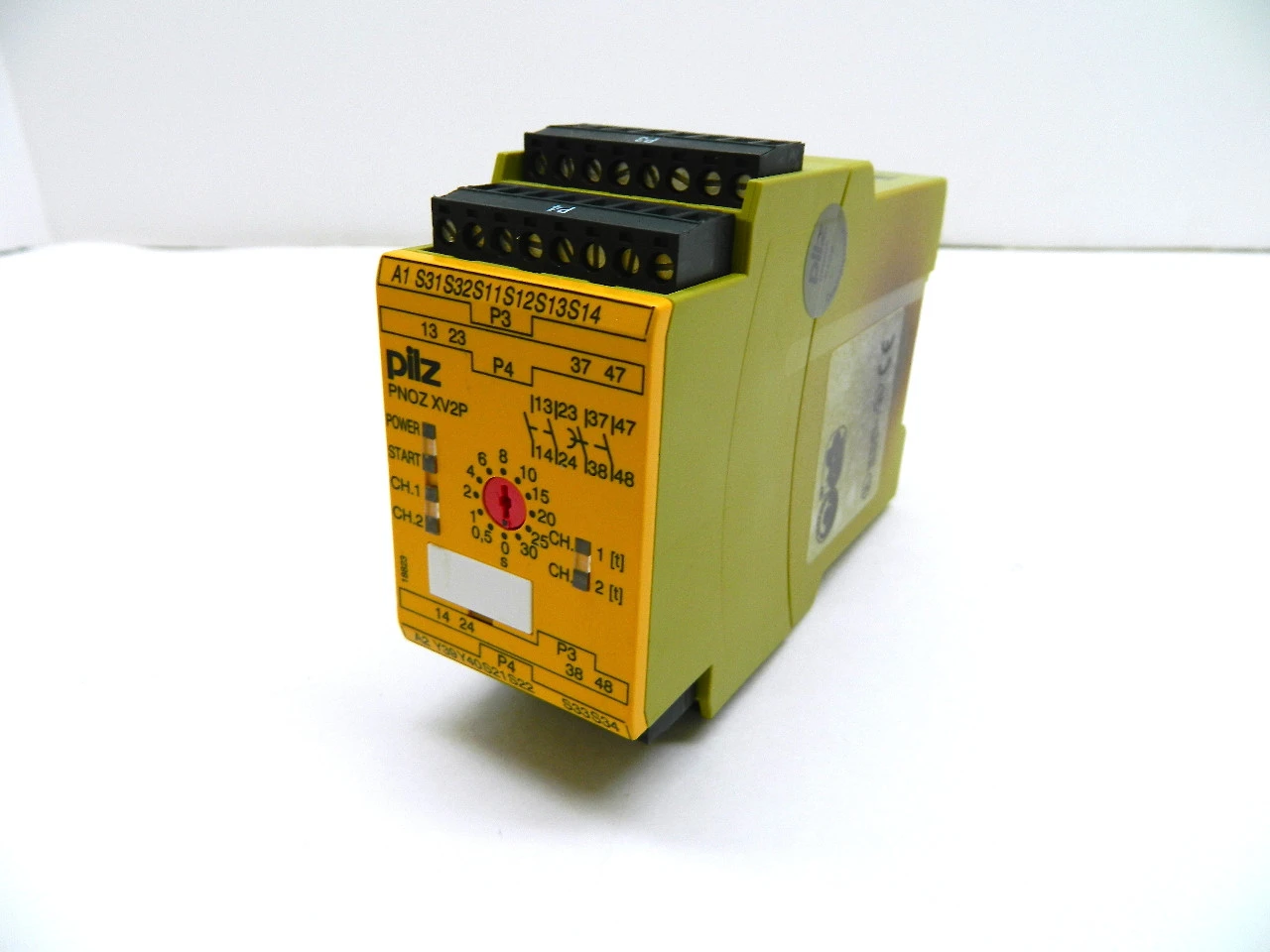

Pilz PNOZ XV2P 30/24VDC 2n/o 2n/ot Safety Gate Monitor Time Monitor 777500

Product version:
2.1
Approvals:
CE, cULus Listed, TÜV, CCC
Application options:
Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring
Operating modes:
Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Monitored manual reset
Product standard:
EN 60947-5-1
Standards:
EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
Supply voltage (V):
24,0
Supply voltage type:
DC
Terminal style:
Plug-in
Terminal type:
Screw terminal
Number of instantaneous safety contacts:
2
Number of delayed safety contacts:
2
Safety contact delay type:
Delay-on de-energisation
Number of auxiliary contacts:
0
Number of delayed auxiliary contacts:
0
Number of semiconductor outputs:
0
Selectable times:
0.10 s, 0.50 s, 1.00 s, 10.00 s, 15.00 s, 2.00 s, 20.00 s, 25.00 s, 30.00 s, 4.00 s, 6.00 s, 8.00 s
Stop category:
0/1
Max. current at DC13 I (6 cycles/min):
7.0 A
Max. current at AC15:
5.0 A
Width dimension:
45.0 mm
Height dimension:
94.0 mm
Depth dimension:
121.0 mm
Gross weight:
370 g
Net weight:
360 g
Ambient temperature:
-10 - 55 °C

SKU: IP5117
UPC: 641752898844
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Germany
