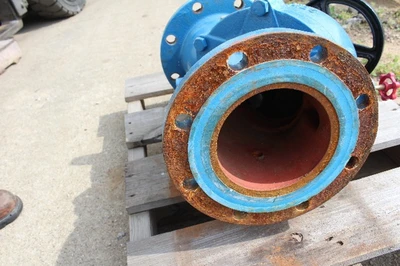

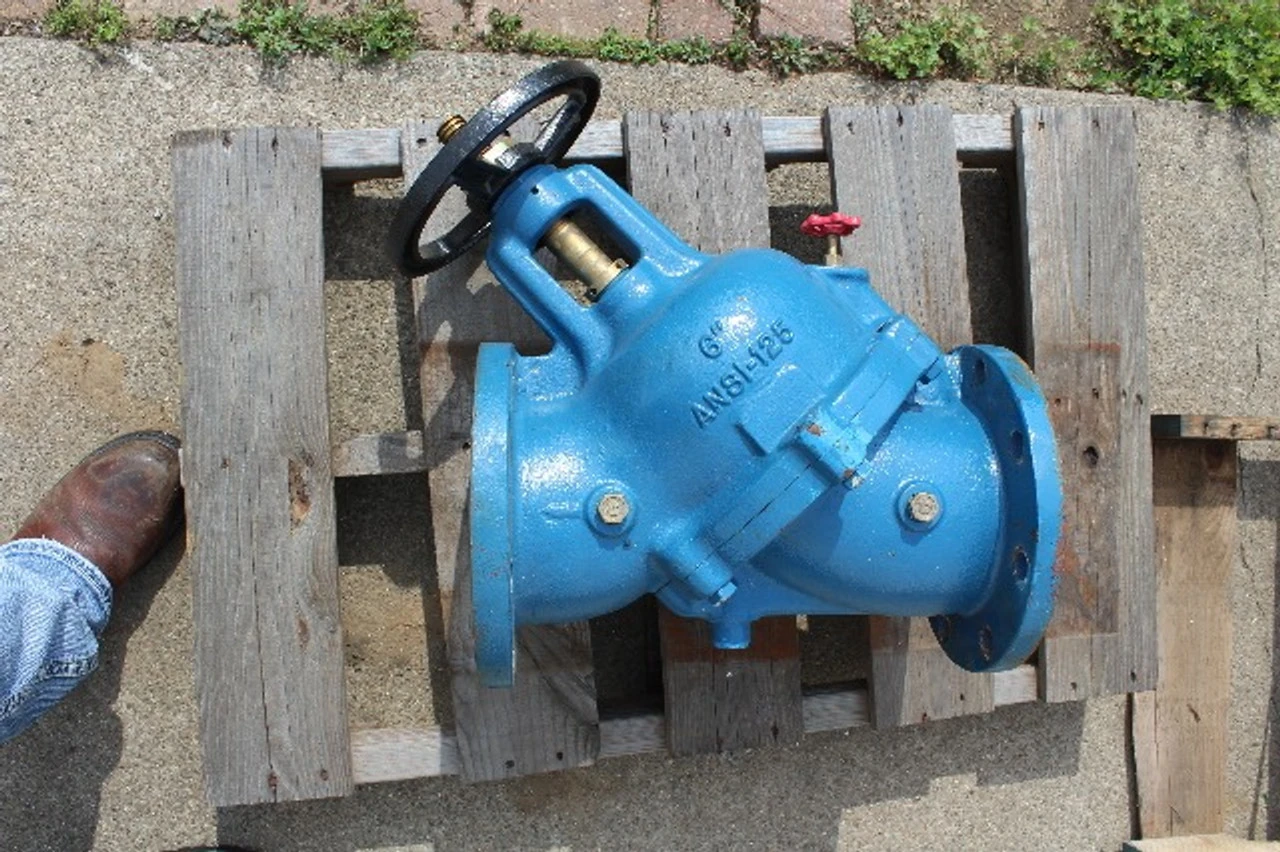

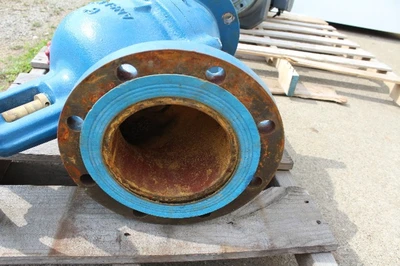

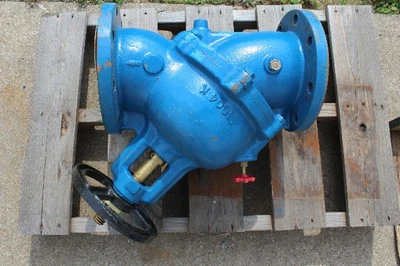

USED KIRLOSKAR BROTHERS 1004 K

Kirloskar Brothers 6" Inch Flange Triple Duty Valve ANSI 125 Throttling Valve
Triple Duty Valve General Description
Installed at the discharge side of pump systems.
Spring-loaded disc prevents valve chatter.
Balancing valve/ Priming with by-pass function.
Inline or 90° flow arrangement is possible.
Cast Iron body for ANSI class 125 and ductile iron for ANSI class 250.
Flanges as per ANSI standard / Customer requirement.
Throttling operation.
Triple Duty Valve Features:
Performs as spring-loaded non-slam check, balancing, shut-off, priming through by-pass and throttling valve.
Soft seated externally guided disc ensures a leak tight seal.
Mating thread parts are dissimilar non-galling metals.
Product engineered using CFD technique to reduce head loss.
Re-positional inlet body viz. two types of mounting arrangement I-type (180
0
 angle) and L-type (90
0
 angle).
NPT drain plug at the inlet and outlet body.
Low room space compared to conventional pumping system.

SKU: IP5975
UPC: 641752901674
Condition: Used
Availability: In Stock
Weight: 150.00 LBS
Width: 36.00
(in)
Height: 24.00
(in)
Depth: 36.00
(in)
Shipping: Calculated at Checkout
Type: Triple Duty Valve
MPN: 1004 K
Model: 1004 K
Series: ANSI 125
Manufacturer: Kirloskar Brothers
Body: Cast Iron
Pipe Size: 6 Inch
Country/Region of Manufacture: United States
GTIN: 641752901674
GPS Manufacturers Part Number: 1004 K
Shelf: Freight Pallet Racking
