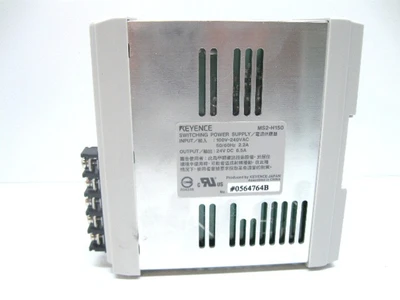

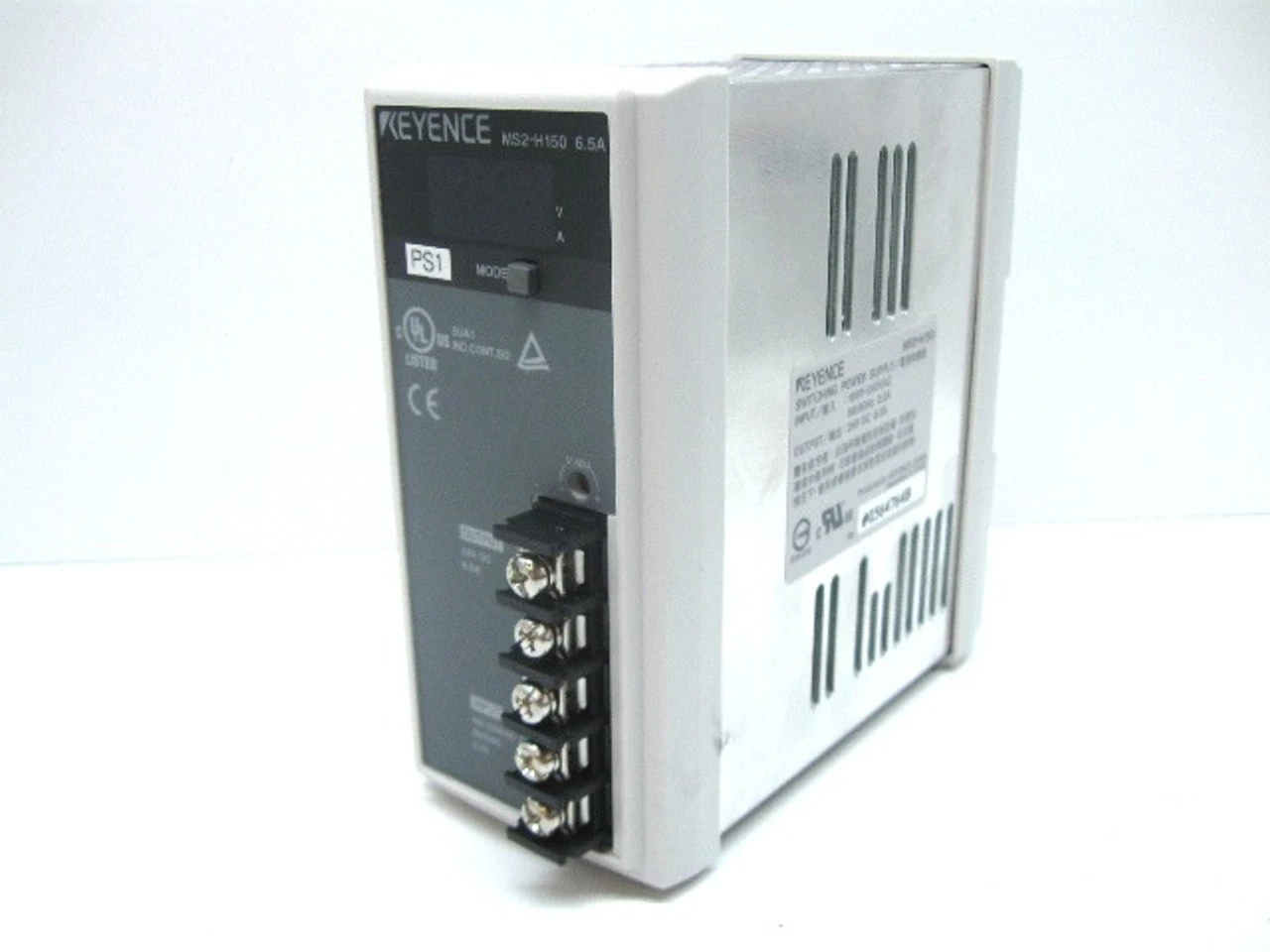

Keyence MS2-H150 Switching Power Supply 100-240 Vac Input 24V DC Output 6.5 Amp

Keyence MS2-H150 Switching Power Supply 100-240 Vac Input 24V DC Output 6.5 Amp
Model
MS2-H150
Input conditions
Input voltage
85 to 264 VAC, 110 to 370 VDC
*1
Frequency
47 to 63 Hz, DC
*1
Inputconditions
Input current (100/200 VAC)
2.2/1.1A or less
Efficiency (100/200 VAC)
82, 85% typ. (at 100% load)
Leakage current (100/200 VAC)
0.4, 0.75 mA or less (at 100% load)
Rush current (100/200 VAC)
25, 50 A or less (at 100% load with a +25å¡CåÊ
77å¡F
åÊcold start)
Output characteristics
Rated voltage
24V
Variable voltage range
å±5% (with V.ADJ)
Rated current
6.5A
Ripple/noise voltage
180mV (p-p) or less
Input fluctuation
0.4% or less
Load fluctuation
1.5% or less
Temperature fluctuation
0.02%/å¡C or less
Startup time
500 ms or less (when the ambient usage temperature is between 0 and +55å¡CåÊ
32 and 131å¡F
åÊwith rated I/O conditions)
Output holding time
20 ms or more (when the ambient usage temperature is +25å¡CåÊ
77å¡F
åÊand with rated I/O conditions)
Protection
Overcurrent protection
Constant current drop method, automatic recovery, 7.9 A or more
Overvoltage protection
Activates at 26.4 V or more, voltage interruption method, recovers when input is applied again
*2
Display
Display power
3-digit 7-segment LED (character height: 10 mmåÊ
0.39"
)
Power off memory time
Approx. 10 years (at +20å¡CåÊ
68å¡F
)
Display resolution
0.1A/0.4V /1%
Applicable standards
Safety standards
UL: UL508, UL60950-1; C-UL: CSA C22.2 number 14-M95, CSA C22.2 number 60950-1-03; EN: EN60950-1, EN50178; IEC: IEC60950-1
EMC standard
FCC Part 15 B Class A, EN55011 Class A, EN61000-6-2
Limits for harmonic current emissions
EN61000-3-2
*3
Other
Parallel operation
Possible (requires OP-42207)
*4
Series operation
Possible (requires external diode)
*4
Cooling method
Natural air cooling
Environmental resistance
Operating temperature range
-10 to 55å¡CåÊ
14 to 131å¡F
, No freezing (see the derating characteristics)
Operating ambient humidity
25 to 85% RH (No condensation)
Ambient temperature for storage
-20 to +70å¡CåÊ
-4 to 158å¡F
(no freezing)
Withstand voltage
3.0 kVAC 50/60 Hz 1 min (across input and output terminals), 2.0 kVAC 50/60 Hz 1min (across input terminals and PE terminal), 500 VAC 50/60 Hz 1min (across output terminals and PE terminal)
Shock resistance
Peak acceleration: 300 m/s
2
, 2 times in each of the X, Y, and Z directions
Vibration
10 to 57 Hz: 0.3 mmåÊ
0.01"
åÊdouble amplitude; 57 to 500 Hz: 19.6 m/s
2
åÊ(2 G), cycle: 5.5 minutes; for 2 hours in each of the X, Y, and Z directions
Insulation resistance
100 Më© or more at 500 VDC (between input and output, between input and FG, and between output and FG)
Weight
Approx 700 g

SKU: IP6236
UPC: 641752902916
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 641752902916
GPS Manufacturers Part Number: MS2-H150
