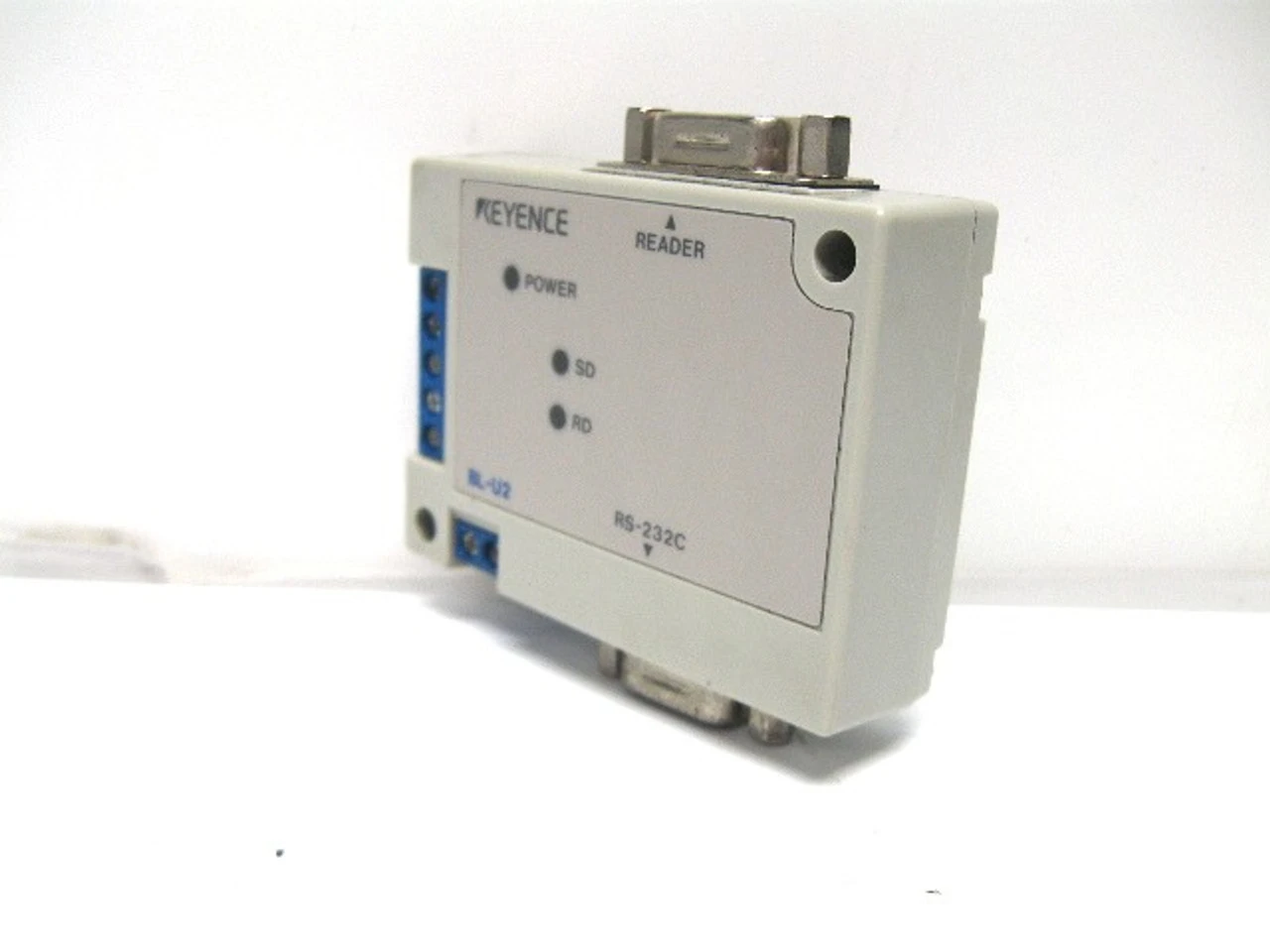

USED KEYENCE BL-U2

Keyence BL-U2 Dedicated Communication Unit Power Supply RS-232C, 24 Vdc, 250 Ma
Model
BL-U2
Reader port
Number of inputs
1 (D-sub 9-pin connector)
Power supply for the barcode reader
5 VDC ± 5% (630 mA)
Communication method
RS-232C
Output interface
I/O terminal
Input terminals
Number of inputs
1
Input rating
15 to 26 VDC, 10 mA maximum
Maximum OFF current value
1.0mA
Output terminals
Number of outputs
2
Output
NPN open collector
Output rating
30 VDC, 100 mA
Leakage current (at OFF)
0.1mA or less
Residual voltage (at ON)
1V or less
Rating
Power voltage
24 VDC +10% or -20%
Power consumption
‰Û¥
Current consumption.
250mA or less
Environmental resistance
Operating temperature range
0 to 50°C
32 to 122°F
Operating ambient humidity
35 to 85%RH (no condensation)
Operating environment
No dust or corrosive gas present
Vibration
10 to 55 Hz, 1.5 mm
0.06"
 double amplitude for 2 hours in each of the X, Y, and Z directions
Weight
Approx 80 g

SKU: IP489495586
UPC: 646412768109
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: BarCode Reader Power Supply
Voltage: 24 Vdc
MPN: BL-U2
Model: BL-U2
Shelf: O-5
Manufacturer: Keyence
Country/Region of Manufacture: China
GTIN: 646412768109
