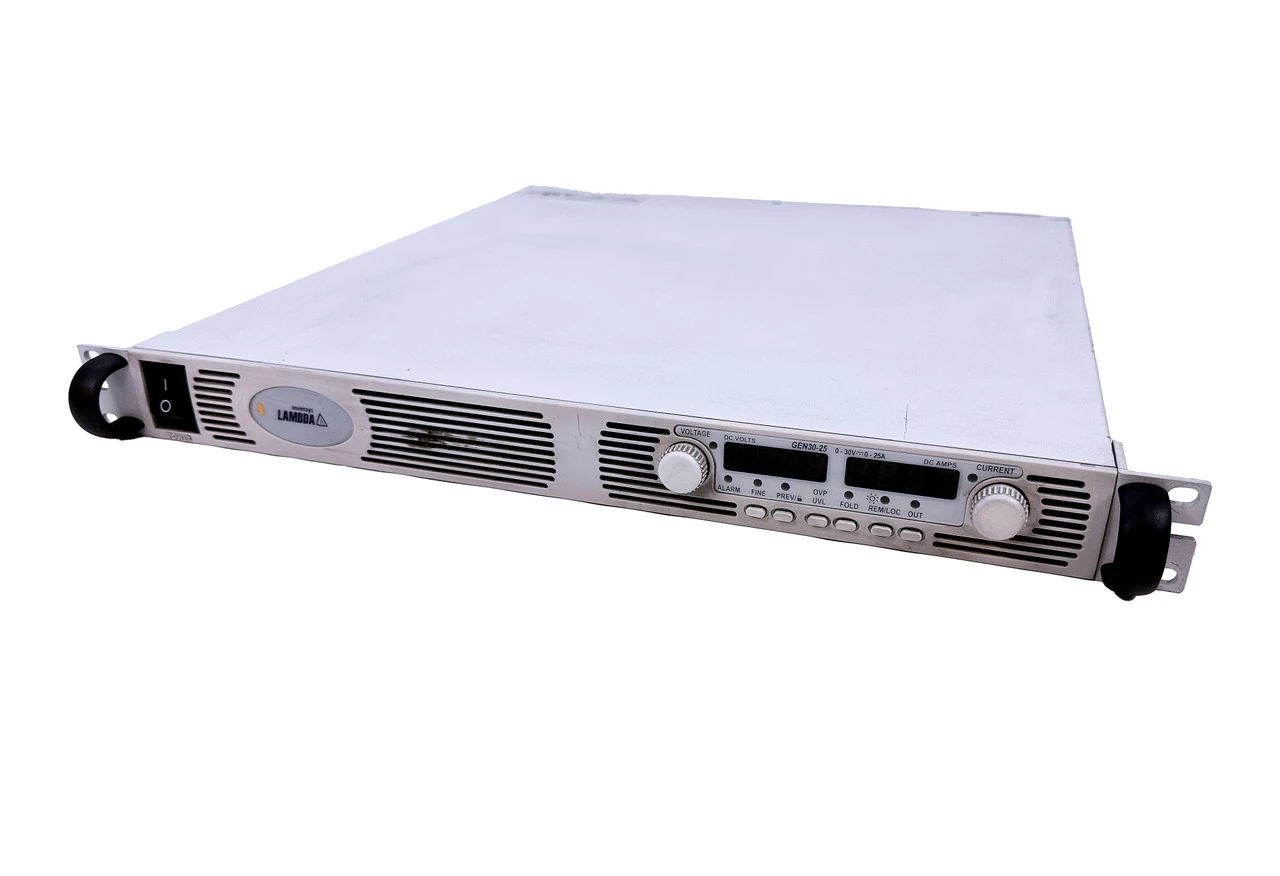

Lambda Gen30-25 Programmable DC Power Supply 0-30 V, 0-25 A.
TDK-Lambda GEN 30-25 Programmable DC Power Supply, 0 to 30 V, 0 to 25 A
The GEN30-25 is part of the Genesys family of programmable AC/DC power supplies that sets a new standard for flexible, reliable, power systems in OEM, Industrial and Laboratory applications. Now available in more power levels (750W, 1.5kW, 2.4kW, 3.3kW, 5kW, 10kW and 15kW) and with output voltages from 6 to 380V and current up to 1,000A. Active PFC, Standard RS-232/RS-485 and world-wide inputs head a long list of standard features.
This member of the Genesys product family of programmable switching power supplies provides high power density, low ripple and a complete set of user-friendly interfaces. In addition to high power density, a universal input is provided in this 1U full rack package. The wide range input is not just dual range, but continuously variable from 85-265 VAC, single phase, 50/38 Hz. It also features Active Power Factor Correction of 0.99 at full load, a first in this size and density. This assures operation in difficult AC environments and meets European EMC requirements.
A user-friendly front panel provides reliable control through encoders selectable for fine or course adjustment (~6 or 30 turns) and four digit LED Voltage and Current meters. Adjustable OVP, UVL and Current Foldback provide further flexibility. Their set values may be previewed on the front panel display, even with Output Off. The Foldback may be set to latch output off if desired for safety.
All Genesys platforms include several other important features. Up to four like units may be connected in parallel and user configured for the Master to Program and Monitor the total current of the group. Thus, four units can appear as a single 3kW to 38kW power supply, increasing flexibility for system designers.
Significant safety features include Safe Re-Start and Last Setting Memory. With Safe Re-Start, the user can select whether the Genesys™ power supply returns to previous settings after power off, or returns to zero (safe) output, waiting for user instructions. Last Setting Memory retains settings of output voltage and current, remote or local mode, OVP and UVL, Foldback, Baud Rate and Start-Up Mode, without battery. Front Panel controls also include Output On/Off and Local/Remote Digital selection. The Front Panel may be locked locally or by software command.
All Genesys products includes standard, embedded 16 bit RS-232/RS-485 digital interface. Through this digital interface up to 31 power supplies may be controlled in daisy chain over the RS-485 line. Analog remote programming is user selectable 0-5V or 0-10V via DIP switches on the rear panel. The design of Genesys™ power supplies is highly modular. SMT technology provides high reliability.
Features:
0 to 30 Vdc, 0 to 25 A
750 W
Wide Range Input 85-265 Vac Continuous, Single Phase, 47/63 Hz
Active Power Factor Correction (0.99 Typical)
Built in RS232/RS485 Interface
Last Setting Memory; Front Panel Lockout
Reliable Encoders for Voltage and Current Adjustment
Constant Voltage/Constant Current Auto-Crossover
Parallel Operation with Active Current Sharing
Independent Remote ON/OFF and Remote Enable/Disable
External Analog Programming and Monitoring
Reliable Modular and SMT Design
19" Rack Mounted
Optional LAN Interface
Worldwide Safety Agency Approvals
CE Mark for LVD and EMC Regulation
Electrical Specifications
Input
Single-phase
Input Voltage Range[AC]
85 to 265Vac
Input Frequency Range
47 to 63Hz
Rated Output Voltage[DC]
30Vdc
Output Voltage[DC]
0 to 30Vdc
Rated Output Current
25A
Output Current
0 to 25A
Rated Output Power
750W
Efficiency
85% Typ.
Voltage Ripple Noise
0.008Vrms (5Hz to 1MHz)
Current Ripple Noise
0.063Arms (5Hz to 1MHz)
Package Type & Size
Package Type
1U Rack mount / Bench top
Width(W)
422.8mm Nom. (16.65in Nom.)
Height(H)
43.6mm Nom. (1.72in Nom.)
Depth(D)
432.8mm Nom. (17.04in Nom.)
Weight
7000g Typ. (15.4lbs Typ.)
Other
Interfaces / Features Included
RS-232
RS-485
Interface Options
LAN (LXI compliant)
USB
GPIB
Isolated analog current control
Isolated analog voltage control
Operating Temp. Range
0 to 50°C
Safety Standard(Certified)
IEC61010-1
CSA C22.2 No.61010-1
EN61010-1
UL61010-1
Safety Standard(Conformed)
CE / UKCA Mark
| Weight | 14.00 LBS | 14.00 LBS |
SKU: IP14843
UPC: 721814235968
Condition: Used
Availability: In Stock
Weight: 14.00 LBS
Width: 24.00
(in)
Height: 12.00
(in)
Depth: 24.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814235968
Country/Region of Manufacture: Germany
Manufacturer: TDK-Lambda
Model: GEN30-25
MPN: GEN30-25
Voltage: 120Vac Single Phase
Type: Programmable DC Power Supply
Shelf: J-143
