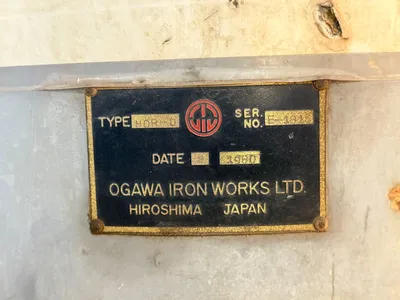

USED 1980 OGAWA HOR-D 2000

Available immediately. This machine is now in storage.

Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.

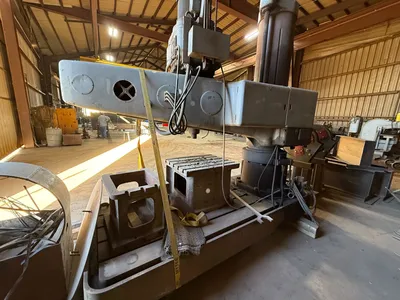

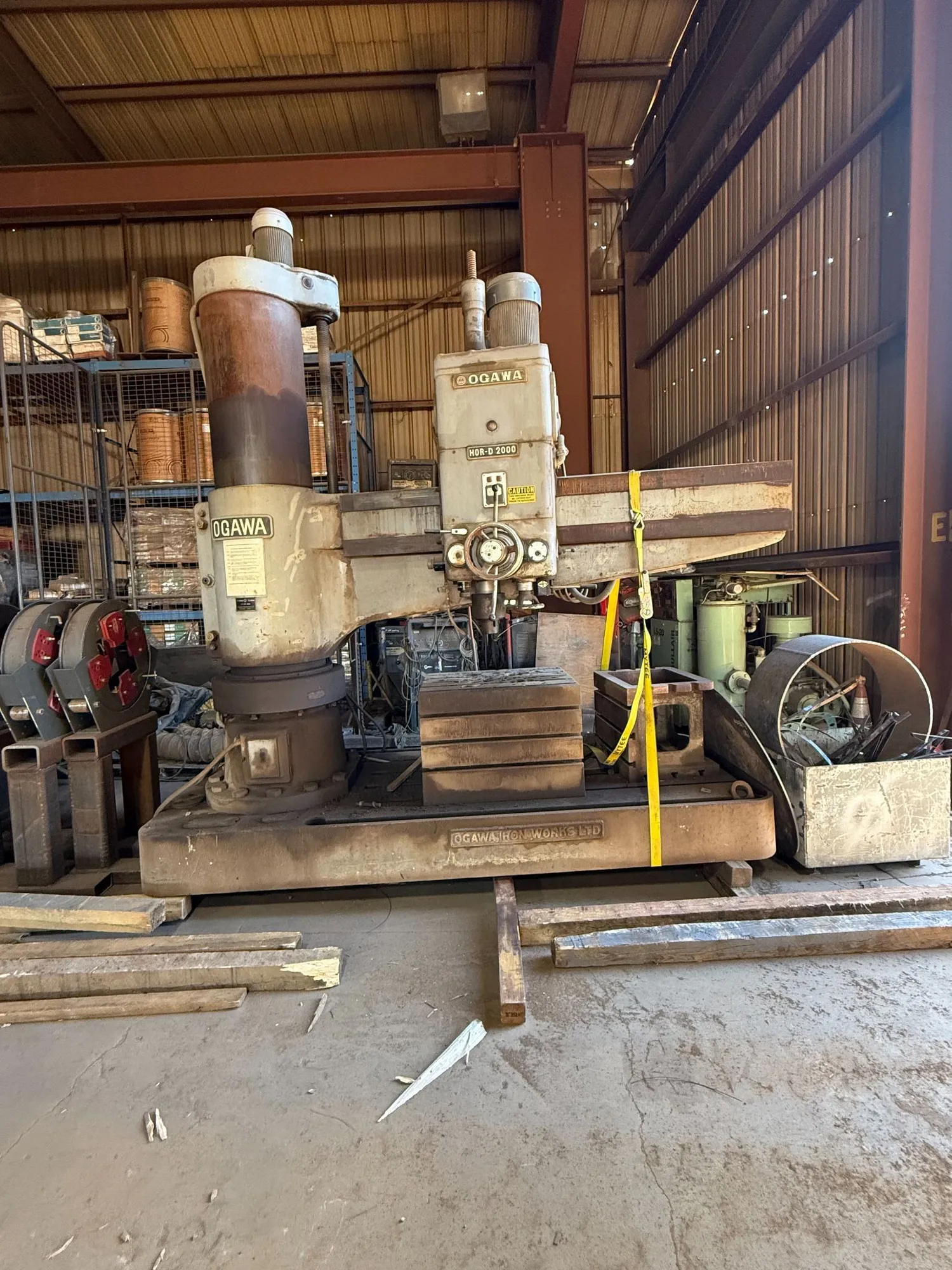

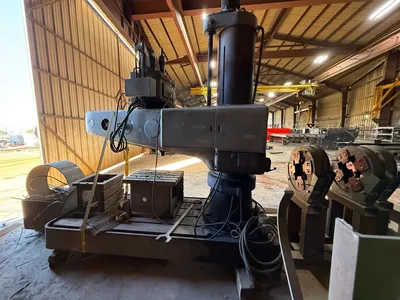

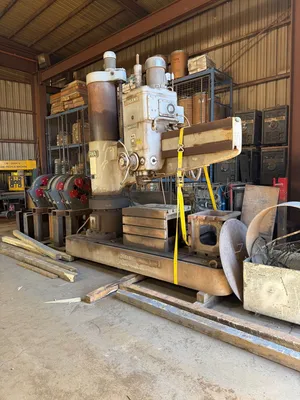

The 1980 Ogawa Ironworks HOR-D 2000 is a heavy-duty radial drilling machine built for precision boring, tapping, and large-format drilling in steel and other metals. It features a long arm reach, robust construction, and hydraulic controls for efficient operation.

Key Specifications

Model: HOR-D 2000
Type: Radial Drill
Year: 1980
Spindle Taper: Morse Taper No. 5
Spindle Speed Range: 15–1560 RPM (22 steps)
Spindle Stroke: 15.75"
Feed Rates: 0.0016–0.0472 in/rev (16 steps)
Drilling Capacity in Steel (S45C): 3" diameter
Tapping Capacity in Steel (S45C): up to 2½" thread
Main Motor: 10 HP
Arm Elevating Motor: 3 HP
Clamping Motor: 1 HP
Machine Weight: approx. 21,000 lbs
Table Size: 25.5" × 31.5" × 21.5"
Column Diameter: 19.75"
Arm Horizontal Travel: 63.75"
Vertical Arm Travel: 35.5"
Max Distance Column to Spindle Center: 80.25"
Max Distance Base to Spindle End: 70.75"
Machine Height: 147.4"
Base Floor Space: 122" × 49.25"
Total Floor Space: 134" × 61"
