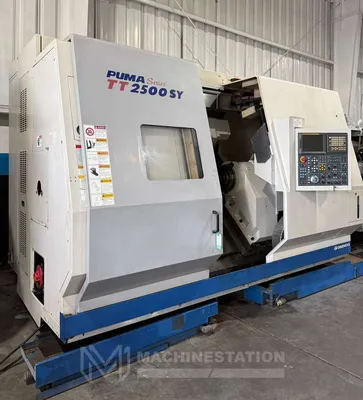

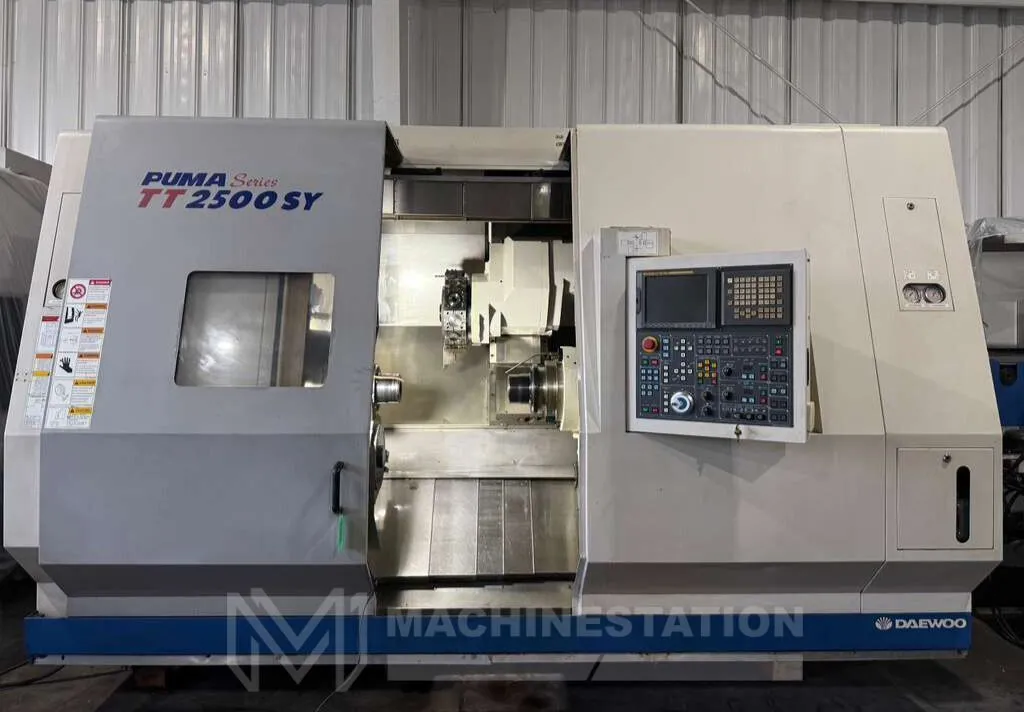

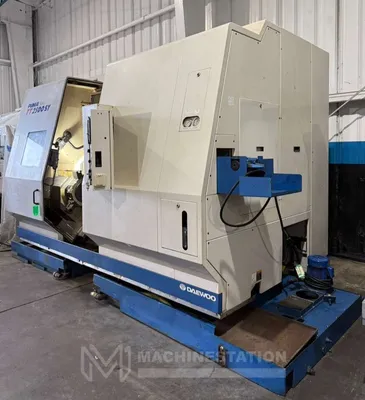

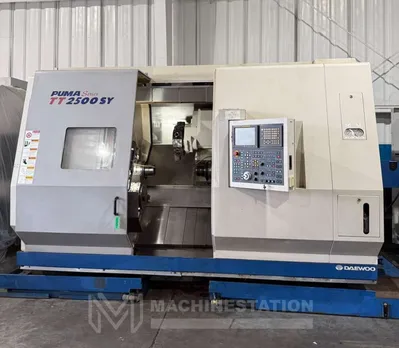

USED 2004 DAEWOO PUMA TT2500SY

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

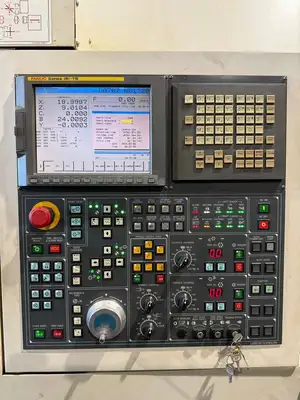

Fanuc 18i-TB CNC Control
4,028 Hours Cutting Time
Heavy Duty Box Way Construction
Both Spindle Synchronization
Coolant System
Automatic Lubrication System

Capacity:
Max Turning Diameter Upper Turret : 15.4″
Max Turning Diameter Lower Turret : 11.8″
Max Swing Over Bed : 31.5″
Max Swing Over Saddle: 24.4″
Max Turning Length: 13.8″
Max Bar Capacity Main Spindle : 3.0″
Max Bar Capacity Sub Spindle : 3.0″

Travels:
X1 Axis Travel Upper Turret: 10.0″
X2 Axis Travel Lower Turret : 8.26″
Y Axis Travel Upper Turret: -2.4″/+2.4″
Z1 Axis Travel Upper Turret: 31.5″
Z2 Axis Travel Lower Turret : 35.4″
A Axis Travel: 31.9″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle

Feedrate:
X1/X2 Axis: 787 IPM Rapid Traverse
Z1/Z2 Axis: 945 IPM Rapid Traverse
A Axis: 945 IPM Rapid Traverse

Main Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.38″
Main Spindle Speed: 3,500 RPM
Main Spindle Power: 30 HP

Sub Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.38″
Main Spindle Speed: 3,500 RPM
Main Spindle Power: 30 HP

Turret:

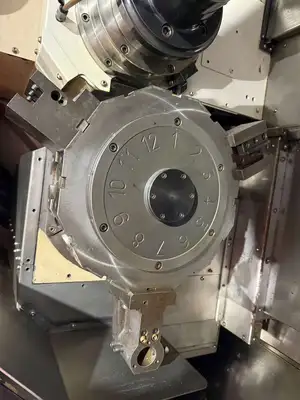

Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 12 Stations
Live Milling Speed: 4000 RPM
Live Milling Motor: 7.5 HP
Turret Index Time (Tool to Tool): 0.2 sec
Turret Type: BMT

General:

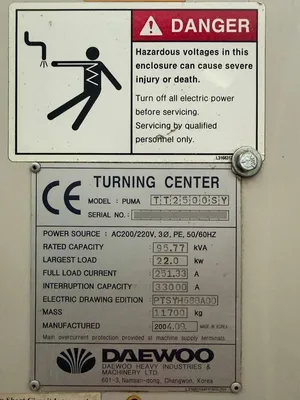

Power Source: AC 220v / 3-Phase / 50/60 Hz
Power Requirement: 95.77 kva
Machine Dimensions: 160″ x 87″ x 97″ High Approx.
Machine Weight: 25,794 lbs Approx.

Collet Chuck on Main Spindle (Capable 10″ Chuck)
Collet Chuck on Sub Spindle (Capable 10″ Chuck)
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
12 Station Live Tool Upper Turret
12 Station Live Tool Lower Turret
Y Axis Capability on Upper Turret
Tool Presetter
Bar Feeder Interface
Chip Conveyor

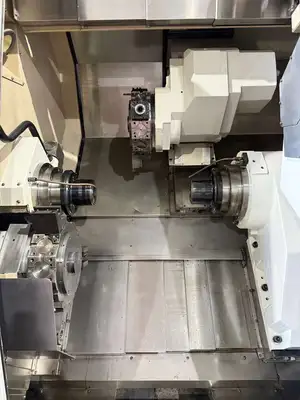

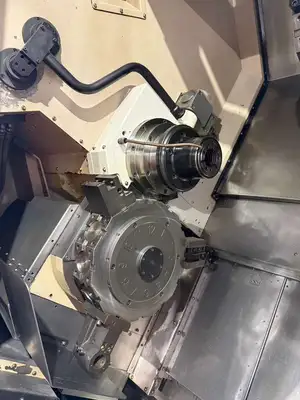

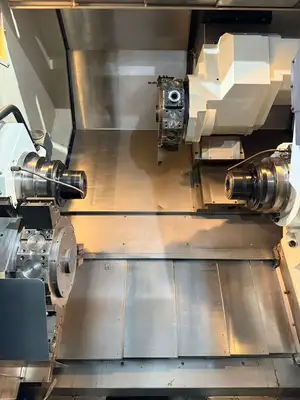

Live & Statics Tool Holders are Mounted on Turrets (As shown in the images)
