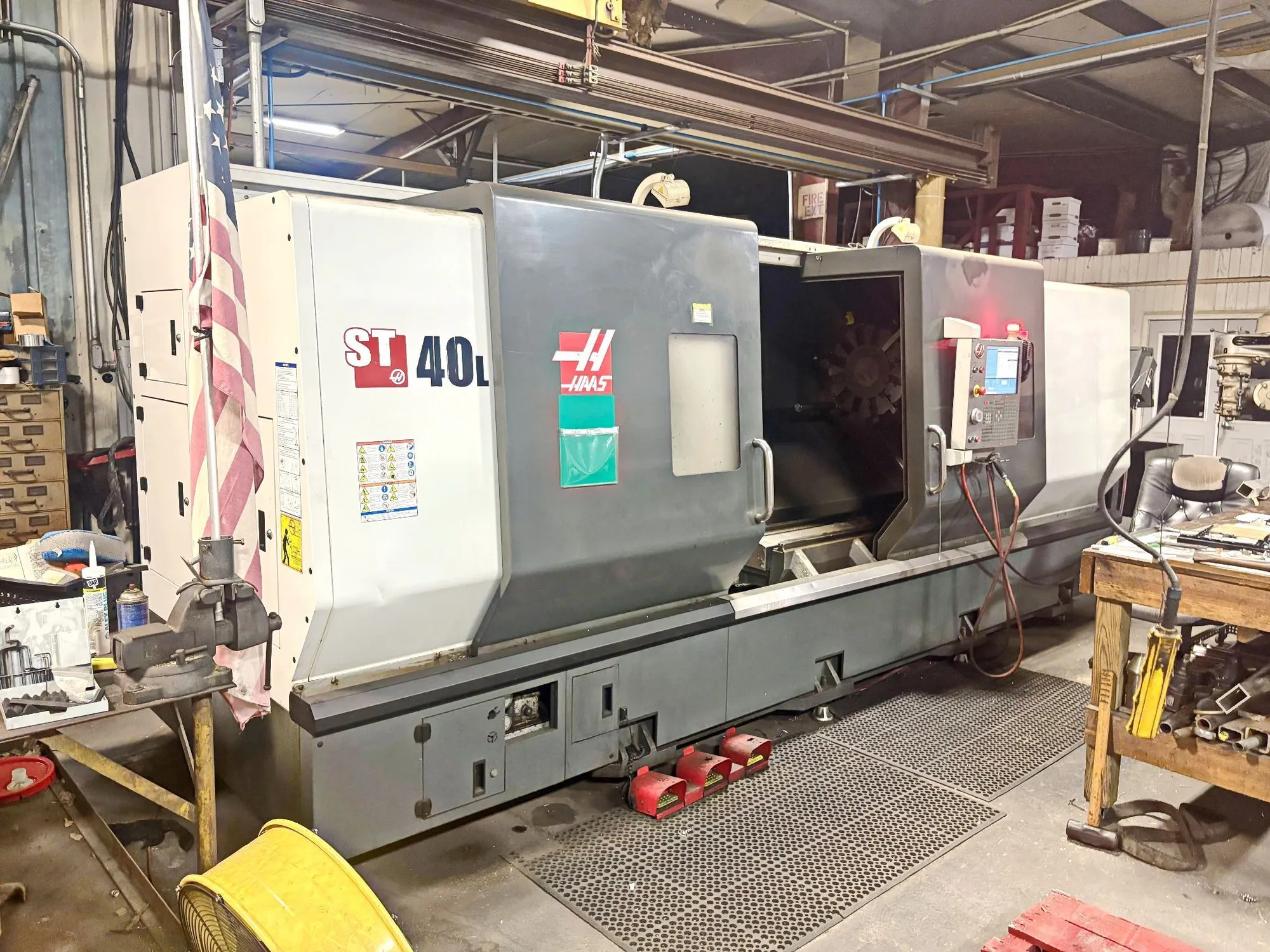

2012 Haas ST-40L CNC Lathe, Programmable Tailstock, 15" 4-Jaw Chuck, 2-Speed Gearbox, Chip Conveyor, Rigid Tapping
| Swing | 34.5" | 876.3 mm |
| Swing Over Cross Slide | 25.5" | 647.7 mm |
| Machining Length | 80" | 2,032 mm |
| Max Turning Dia | 25.5" | 647.7 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Spindle Bore | 4.62" | 11.7 cm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Spindle Nose | A2-8 | A2-8 |
| X-Axis Travel | 17" | 431.8 mm |
| Z-Axis Travel | 80" | 2,032 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 710 / 320 in/min. | 710 / 320 in/min. |
| Turret Capacity | 12 | 12 |
| Made In | United States | United States |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 254" X 95" X 105" | 254" X 95" X 105" |
| Weight | 30,000 lb | 30,000 lb |
Programmable tailstock
15" 4-jaw chuck
2-speed gearbox
Rigid tapping
Chip conveyor
