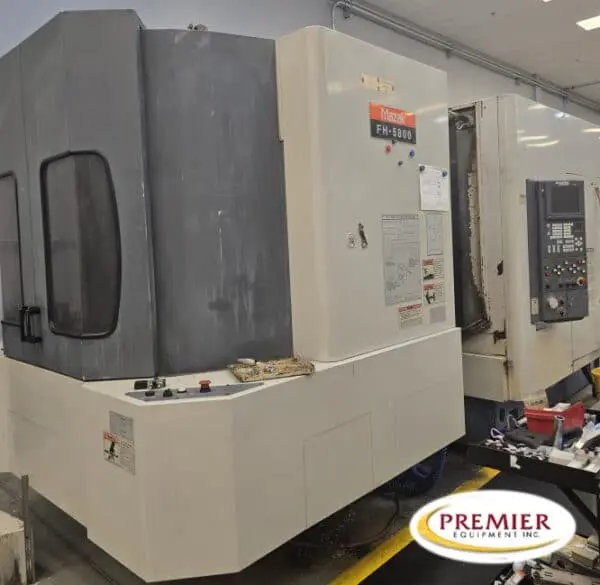

Mazak FH-5800 – 1999

MAZAK FH5800 Machining Centers, Horizontal (1999)
GENERAL

PALLET SIZE…………………… 19.7″ x 19.7″

NUMBER OF PALLETS……………… 2

MAXIMUM TABLE LOAD…………….. 2,205 LBS

X AXIS TRAVEL…………………. 28″

Y AXIS TRAVEL…………………. 24″

Z AXIS TRAVEL…………………. 26″

B AXIS INDEXING……………….. 1 Degree

RAPID TRAVERSE RATE X,Y,& Z AXIS… 945 IPM

CUTTING FEED RATE X,Y, & Z …….. 315 IPM

SPINDLE SPEEDS………………… 12,000 RPM

SPINDLE TAPER…………………. CAT 40

SPINDLE MOTOR (2 SPEED GEARED)….. 30 HP

TOOL CHANGER CAPACITY…………..

MAZATROL FUSION 640M CONVERSATIONAL CNC CONTROL

COOLANT THROUGH THE SPINDLE

CHIP CONVEYOR
