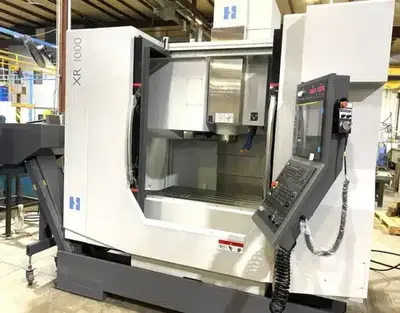

Hardinge-Bridgeport XR-1000 – 2023

Hardinge-BRIDGEPORT XR1000

Travel (X, Y, Z) 40 x 24 x 24 in

1020 x 610 x 610mm

Table Working Surface 51.18 x 23.6 in

1300 x 600 mm

Spindle Type CT40 BigPlus

Spindle Power 30 HP

22.37 kW

Spindle 12,000 RPM (DDS) )

Feedrate 787 in/min

Spindle Taper No. 40

No. of Tools 30 standard; 48/60 optional

CNC Control FANUC Oi-MF+

Machine Size (LxWxH) 144.21 x 120 x 40.55 in

3663 x 3048 x 1030mm
FANUC 0iMF-PLUS

AICC with 200 block look ahead

Thermal Compensation

12K Air Oil Direct Drive Spindle

Big Plus CAT 40

12,000-rpm Spindle Speed

CT40 or BT40 Taper Spindles

BIG-PLUS Face Taper Spindle

High-Retention Draw Bar

Thermal Compensation

Chip Conveyor with Chip Washdown

Cutter Air Blast

Rigid Tapping

4th Axis Pre-Wiring

15″ LCD Color Display

Programmable Data Input

PCMCIA Card Slot

Workpiece Coordinate System

Manual Pulse Generator (Handwheel)

Coordinate System Rotation

Rigid Tapping

Tool Life Management

Tool Length compensation

Background Editing

Ethernet Ready/ RS232 Ready/ USB Slot

Additional Workpiece Coordinate System

Manual Guide i
