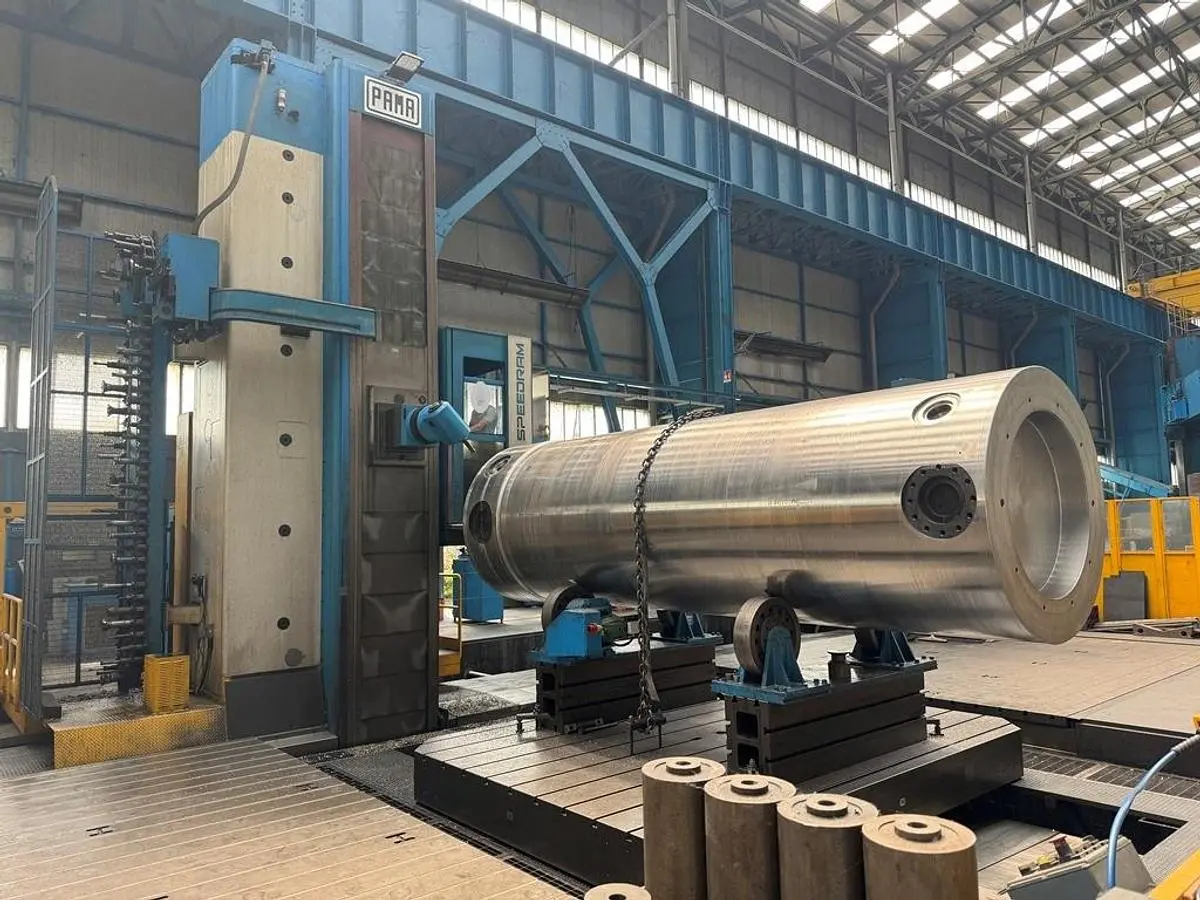

USED 2009 PAMA SPEEDRAM 2000

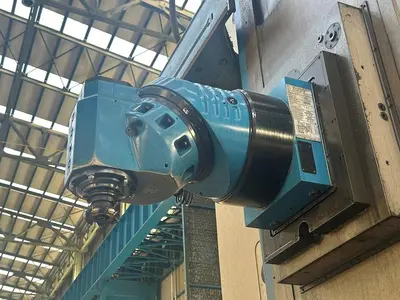

Siemens Sinumerik 840D CNC Control80 Position Automatic Tool Changer Automatic Head Changer (AAC) 3 + 1 Storage CapacityPama Model TH 100 Infeeding Rotary Table 3,500 x 4,500mm, V axis 3,000mm, 100 Ton CapacityUniversal TU 30 ~ 360 CNC Milling HeadAutomatic Right Angle Milling Head TS35 ~ 360Facing Head UT 5 ~ 630s Coolant Through Spindle Floor Plates 2 pieces m2 30 + 30 = total 60 Plate size 1 mm 6.000 x 5.000 Plate size 2 mm 6.000 x 5.000 Load capacity Kg/m2 15.000 Thickness mm 300 T-slot dimensions mm 28 H12 - DIN 650 Slot pitch mm 250External Coolant SystemOperator PlatformChip ConveyorRenishaw Radio Transmission Workpiece ProbeAdaptive control technologyTool life monitoring and twin tool managementSafety Fencing & EnclosureUniversal TU 30 360 CNC Milling HeadISO 50 - DIN 69871/2Spindle diameter 128,57 mmMax spinle speed 2.500 rpmFacing platform – UT 5-630 SPlatform diameter 630 mmSlide travel 200 mmSlide feed speed 1/400 mm/min Maximum executable diameter 1.250 mmPama Model TH 100 Infeeding Rotary TableTable Size 3,500 x 4,500 mm                   V Axis Table Infeed 3,000 mmTable Load Capacity 100 TonsNominal Torque of rotation (B axis) 80,000 NmB-Axis 360 Degrees

Manufacturer: Pama
Model: Speedram 2000
Year: 2009
Condition: Used
Stock Number: 5654264
Spindle diameter: 180 mm
Spindle speeds: 2,500 rpm
X axis travel: 13,000 mm
Y axis travel: 5,000 mm
Z axis travel: 1,200 mm
Table dimensions: 3,500 x 4,500 mm
Table capacity: 100 Ton
V axis table infeeding travel: 3,000 mm
W axis travel: 1,000 mm
Ram dimensions: 400 x 440 mm
Spindle motor power: 91 kW
Taper of boring spindle: ISO 50 BIG-PLUS
Z + W - ram + spindle travel: 2,200 mm
Working feeds: 0.5 - 8,000 mm/min
Rapid feeds X,Y,Z,W: 20,000 mm/min
Torque Nominal (S1): 9,050 Nm
Voltage input and tolerance: 400 VAC ±10%
Power: 190 KVA (Full Load)
