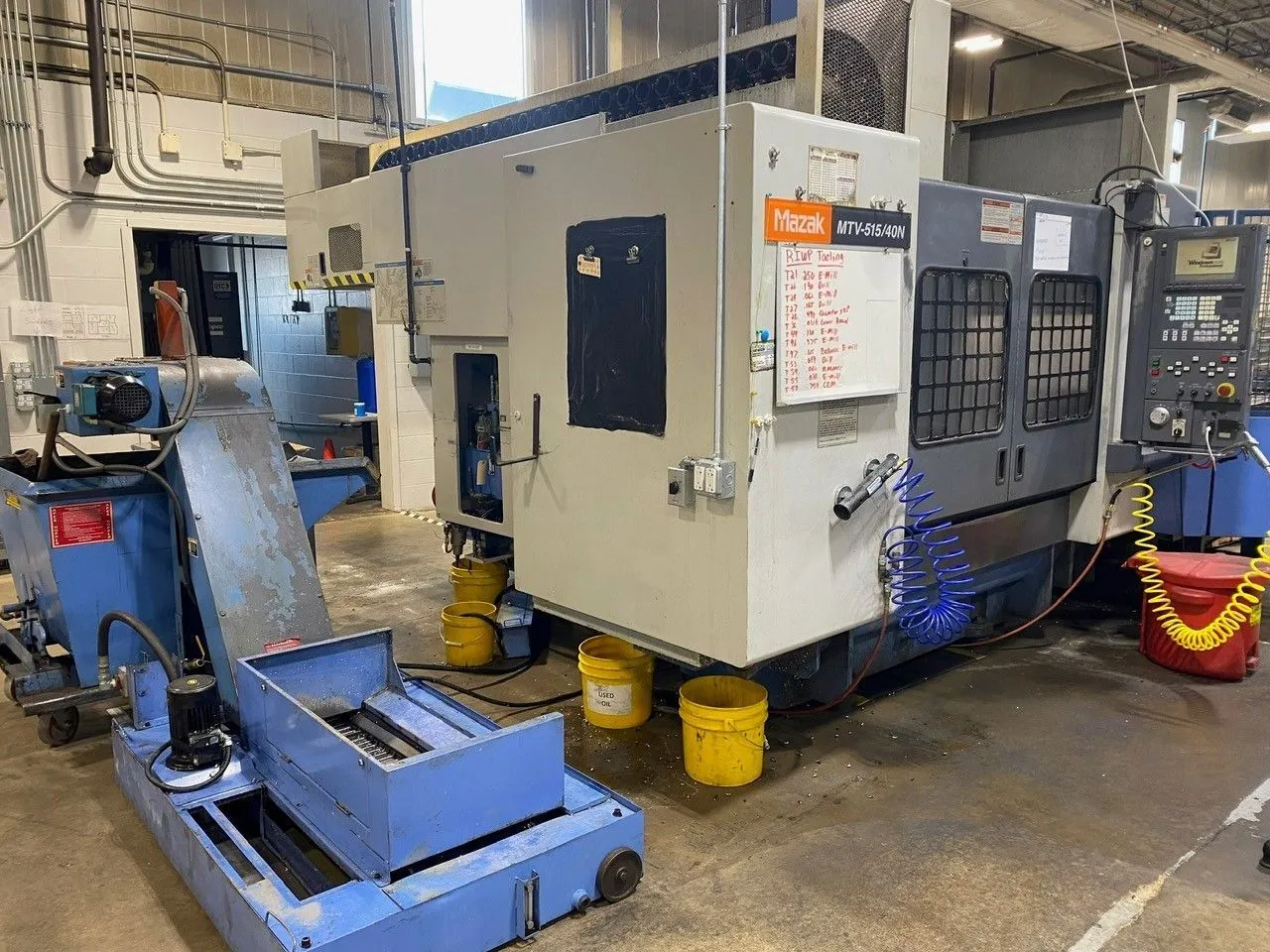

USED 1998 MAZAK MTV-515/40N
Overview
Description
1998 Mazak MTV515/40N 2-Pallet, 50 Taper, Vertical Machining Center with Fusion 640M Control, 6,000 RPM Spindle, Through Spindle Coolant, 60 ATC, Probing, and Chip Conveyor.
Specifications
| X | 41" | 1,041.4 mm |
|---|---|---|
| Y | 20" | 508 mm |
| Z | 22" | 558.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 51.18" | 1,300 mm |
| Table-L | 21.52" | 546.61 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fusion 640M) | CNC (Fusion 640M) |
| Weight | 19,580 LBS | 19,580 LBS |
Number Of Tables / Pallets.......2
Table Size.......................21.65" x 51.18"
Weight on Table..................3,300 LBS
Spindle Nose To Table............7.87" - 29.92"
X-Axis Travel....................41.32"
Y-Axis Travel....................20.07"
Z-Axis Travel....................22.04"
Rapid Traverse (X, Y, Z).........945, 945, 708 IPM
Cutting Feed Rate................0.04 - 197 IPM
Spindle Speed....................6000 RPM
Spindle Taper....................CAT-50
Number Of Gear Ranges............2
Main Motor.......................30 HP
Automatic Tool Changer...........60 ATC
Machine Weight...................19,580 LBS
Equipped With
Mazatrol Fusion 640M CNC Control
2-Station Pallet Changer
6,000 RPM, CAT-50 Spindle
Through Spindle Coolant
60 Station ATC
Probing
Chip Conveyor
EIA, Spiral, EIA 3D Comp., Rotation
Geometric, Scaling, EXT-Data I/O
Shape Comp., Thread, Inverse Time
Auto TLM, Comparison Stop, G54.1
Sync. Tap, G00 Slope Const., Variable 600 Sets
Navigation, EIA Helical Tap Cycle
Mazatrol Helical, Mazatrol CO-OR Shift
Mazatrol Planet Tap
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
