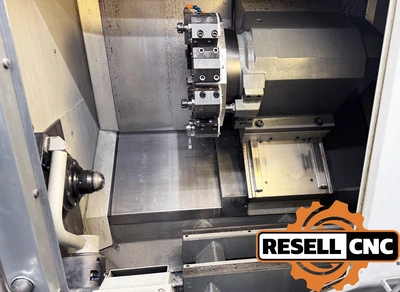

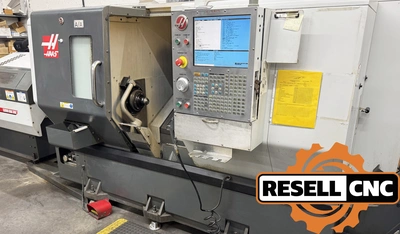

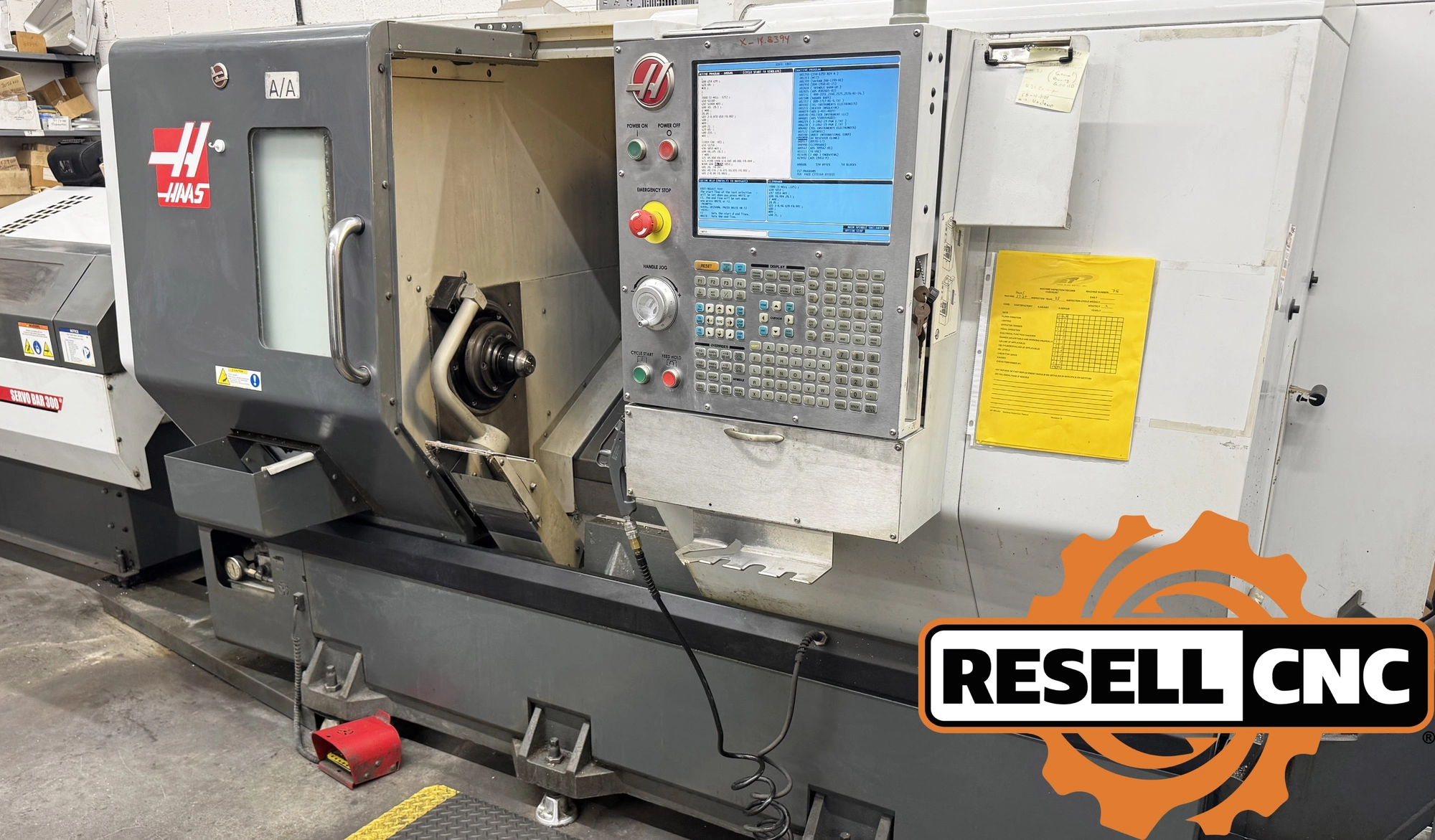

USED 2012 Haas ST-20

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Max Thrust X: 4100 lbf

Max Thrust Z: 5,100 lbf

Coolant Capacity: 55 Gal

Bar Capacity: 2.0

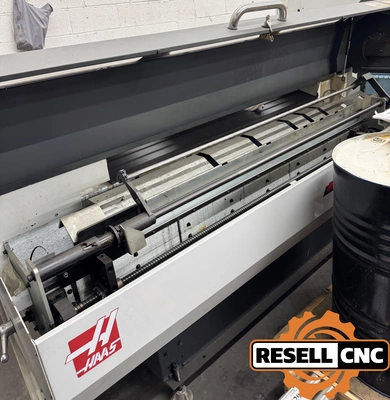

Barfeeder Make Model: Haas Servo Bar 300
B Axis: false
C Axis: false

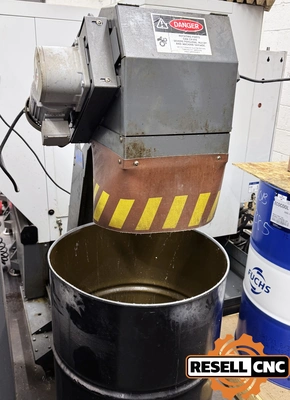

Chip Removal: Chip Conveyor

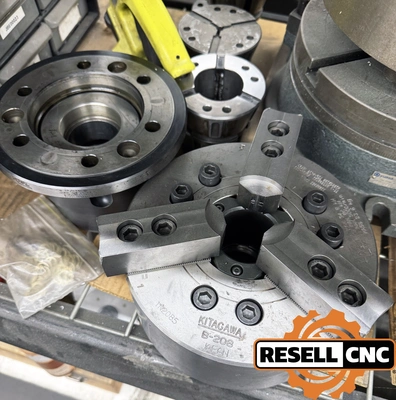

Chuck Size: 8.3
Control Make Model: Haas CNC Control
Control Options: Rigid Tapping, Ethernet / LAN, Macros
Distance Between Centers: 22.5
Electrical: 260V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Parts Catcher
Max Cutting Turning Diameter: 13.0
Max Swing Over Bed: 31.75
Max Turning Cutting Length: 21.0
Programmable Tailstock: true
Rapid Traverse: 945
Single Turret: true
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Nose: A2-6
Spindle Speed: 4000.0
Sub Spindle: false
Tailstock: false
Tool Positions: 12.0
Total Spindles: 1
Twin Turret: false
X Travel: 9.3
Y Axis: false
Z Travel: 21.0
