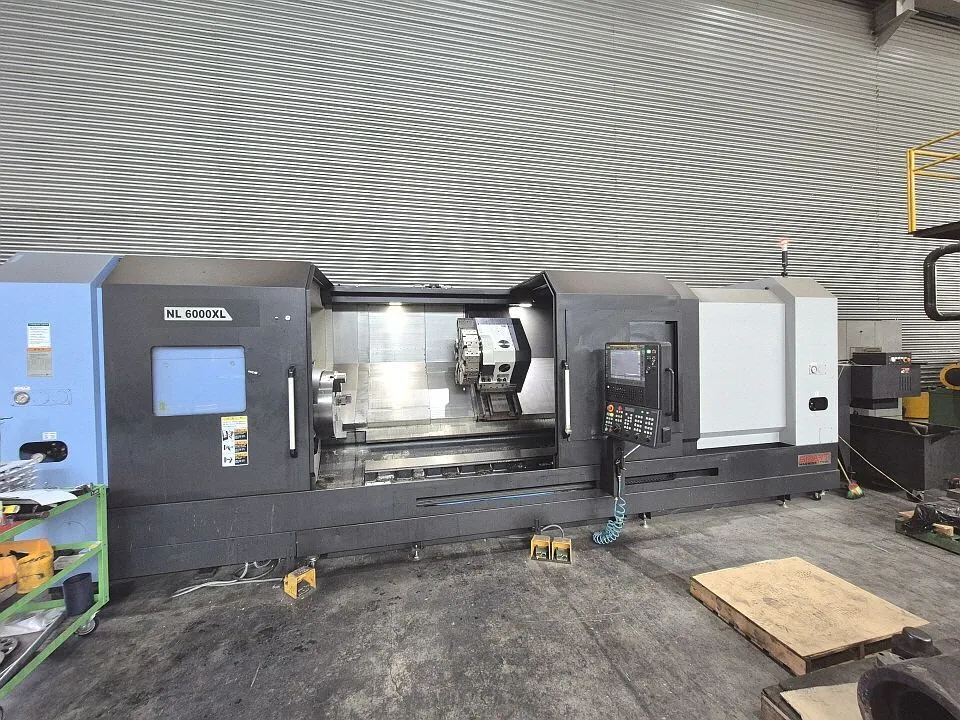

SMART NL6000 XL, 2022, 40.55" swing, 37.8" max cutting diameter, 128" machining length, 73 hp, 1,200 RPM, 24" hydraulic chuck, chip conveyor. Features 12 turret stations.
| Swing | 40.55" | 1,030 mm |
| Swing Over Cross Slide | 33.46" | 849.88 mm |
| Max Cutting Dameter | 37.8" | 960.12 mm |
| Machining Length | 128" | 3,251.2 mm |
| # Axis | 2 | 2 |
| Z-Axis Travel | 129.92" | 3,300 mm |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 6.52" | 165.61 mm |
| Power | 73 hp | 54.4 kW |
| Max RPM | 1,200 RPM | 1,200 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Spindle Bore | 7.125" | 180.97 mm |
| Spindle Nose | a1-15 | a1-15 |
| Sub Spindle | No | No |
| Rapid Traverse Rate X-Axis | 630 ipm | |
| Rapid Traverse Rate Z-Axis | 394 ipm | |
| # Turret Stations | 12 station | 12 station |
| Control | CNC | CNC |
| Dimensions | 280" X 105" | 280" X 105" |
| Weight | 44,000 | 44,000 |
24" 3-Jaw Hydraulic Chuck
Chip conveyor
Tool Presetter
Only 1,131 Cutting Hours
