The intelligent sawing system is completely developed JLH Saws. With “constant sawing force” as its core principle, the system monitors blade stress condition in real time and adjusts feeding speed continuously and at optimum rates. This system prolongs blade life and improves sawing efficiency.
| Round Tube at 90° | 12" | 12" |
| Round Solid at 90° | 12" | 12" |
| Rectangle Solid at 90° | 12" W x 12" H | 12" W x 12" H |
| Maximum Cutting Capacity - Bundle | 11.8" W x 5.9" H @ 90° | 11.8" W x 5.9" H @ 90° |
| Blade Speed | 33 to 330 fpm | 33 to 330 fpm |
| Saw Blade Size | 1-1/4" W x 162" L | 1-1/4" W x 162" L |
| Saw Blade Tension | Hydraulic | Hydraulic |
| Motor | 6.7 HP | 6.7 HP |
| Power | 220V, 3-ph-60Hz | 220V, 3-ph-60Hz |
| Total Amp Draw | 19 Amps | 19 Amps |
| Coolant Motor | .12 HP | .12 HP |
| Coolant - Reservoir Size | 24 gal | 90.8 L |
| Coolant system - Mist Lubricator | No | No |
| Coolant system - Flood | Yes | Yes |
| Hydraulic Motor | 1.5 HP | 1.5 HP |
| Hydraulic System - Reservoir Size | 16 gal | 60.6 L |
| Material Pass Height | 27" | 685.8 mm |
| Indexer - Length Per-Stroke | 19.7" | 500.38 mm |
| Indexer - Maximum Index Strokes Length | 240" | 6,096 mm |
| Indexer - Remnant Length | 5" | 127 mm |
| Dimensions | 91" x 89" x 61" | 91" x 89" x 61" |
| Weight | 3,750 lbs. | 3,750 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor

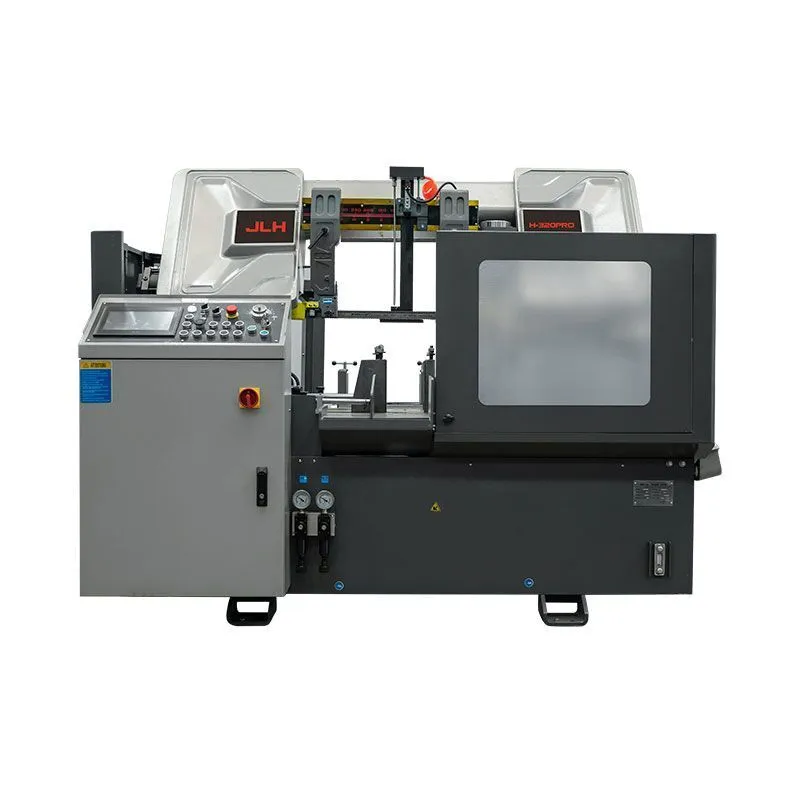

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
VVP - Variable Vise Pressure Control System
CHIPCO - Powered Chip Auger
NESTER - Hydraulic Top Clamp (removable, short stroke)
2MCONV - 6’6” (2M) Idle Roller Table 6.5’ Long,with Vertical Alignment Rollers
IDLER - 10' Idler Conveyor
BRUSHES - Package of 10pcs of band brushes
