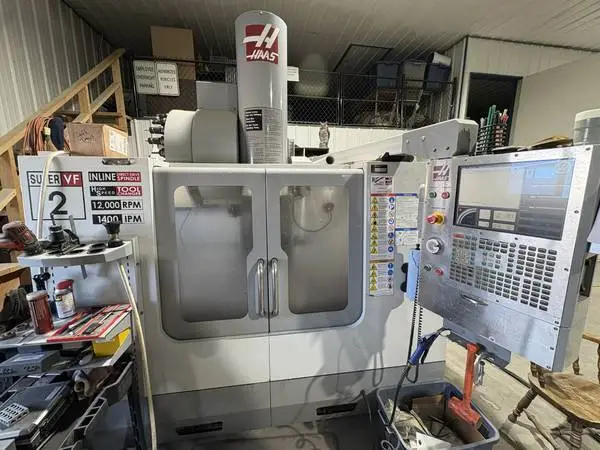

2007 HAAS VF-2SS Vertical Machining Center in used condition. Features 30"X x 16"Y x 20"Z travel, 30 HP, 12,000 RPM, 24-tool ATC, and CT/BT 40 taper. Table measures 14"W x 36"L, offering robust performance for precision machining.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| Control | CNC (Haas CNC) | CNC (Haas CNC) |
Make: Haas
Model: VF-2SS
Type: Vertical Machining Center (VMC)
Year: 2007
Control: Haas CNC
Voltage: 208/230V
Phase: 3
Frequency: 50/60 Hz
Full Load Current: 80 Amps
Largest Load: 70 Amps
Interrupting Capacity: 10,000 Amps
Spindle Motor: 40 HP
Spindle Speed: 12,000 RPM
Tool Changer: 24-Station Carousel
Coolant Capacity: 55-Gallon Tank with Aerator
Probing System: WIPS (Wireless Intuitive Probing System) – Tool & Part Probes
Machine Hours: 6,426 Spindle Hours (per debug screen)
Construction: Rigid Tapping, Super Speed Model
Condition: Excellent – Meticulously maintained and serviced
Power Requirement: 3-Phase, 208/230V
WIPS Probe & Tool Setter
24-Station Tool Carousel
55-Gallon Coolant Tank with Aerator
Rigid Tapping
Custom Airbag Dolly
Additional Tooling & Inspection Equipment (available separately)
Can be powered for demonstration
