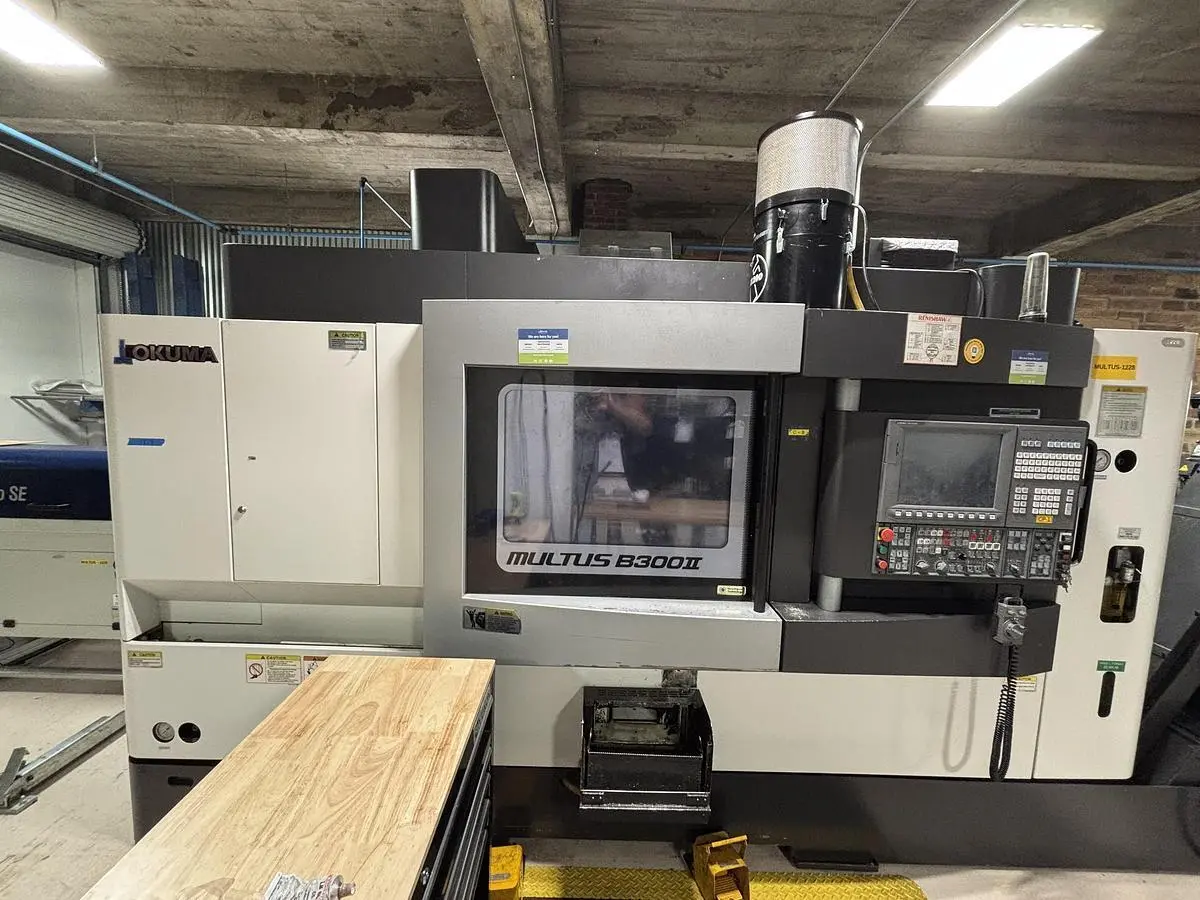

2015 OKUMA Multus B300II CNC LATHE,
WIEHT EDGE REBEL 102 BARLOADER
| # Axis | 5 | 5 |
| Swing | 24.8" | 629.92 mm |
| Machining Length | 35.43" | 899.92 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.93" | 99.822 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 24.8" | 629.92 mm |
| Control | CNC (Okuma OSP-P300S) | CNC (Okuma OSP-P300S) |
| Dimensions | 142.52" X 87.01" X 101.66" | 142.52" X 87.01" X 101.66" |
| Weight | 17,820 LBS | 17,820 LBS |
SWING OVER SADDLE: 24.8"
DISTANCE BETWEEN CENTERS: 35.43"
X-AXIS TRAVEL: 22.83"
Y-AXIS TRAVEL: +/- 3.15"
Z-AXIS TRAVEL: 35.51"
W-AXIS TRAVEL: 39.37"
B-AXIS TRAVEL: 30 TO +195 DEGREE
B-AXIS INDEXING: 0.001 DEGREE
MAIN SPINDLE CHUCK SIZE: 10"
MAIN SPINDLE SPEED: 5,000 RPM
MAIN SPINDLE POWER: 30 HP
SPINDLE NOSE: A2-6
MAIN SPINDLE BORE: 3.93"
MAIN SPINDLE BAR SIZE: 3.15"
SUB SPINDLE CHUCK SIZE: 8"
SUB SPINDLE SPEED: 6,000 RPM
SUB SPINDLE POWER: 15 HP
SUB SPINDLE BORE: 3.94"
SUB SPINDLE BAR SIZE: 3.15"
MILLING SPINDLE SPEED MAX: 12,000 RPM
MILLING SPINDLE TAPER: CAPTO C6
ATC CAPACITY: 120
MACHINE SIZE: 142.52" X 87.01" X 101.66"
MACHINE WEIGHT: 17,820 LBS
OSP-P300S Control
Sub Spindle
Big Bore Option: 3.15" Bar capacity
Capto C6 Spindle Taper
120 Tool Capacity
Tool Presetter
Parts Catcher
Edge Rebel 102 Bar Feeder
Spindle Liners
Hinge Type Chip Conveyor
MP Systems 1000 PSI Coolant Thru Spindle
Royal Filtermist FX1200 Mist Control Unit
Coolant Tanks w Flood pumps
Chiller Unit
Transformer
Renishaw Tool Probe (RMI-Q)
Royal Collet Chuck on Main Spindle
Various Capto C6 Tooling
