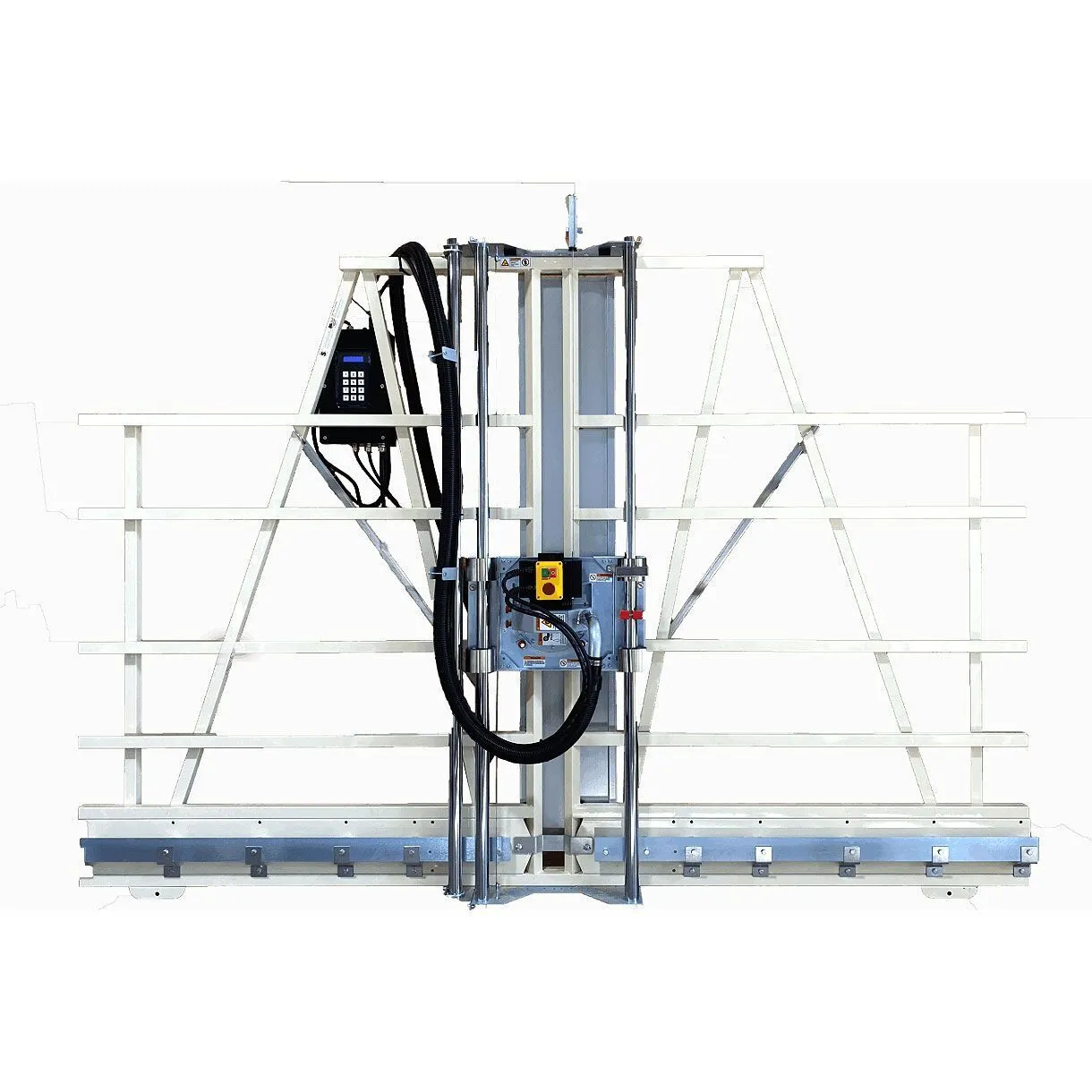

The EF5 Vertical Panel Saw is designed for businesses cutting up to 8 hours daily, with multiple operators cutting throughout the day. The maximum crosscut on the EF5 is 64", with a 1.75" cut depth, and unlimited length ripcut. The smart, servo motor on the EF5 has been rigorously tested for several years by our engineers.
| Frame Length | 120" | 3,048 mm |
| Max. Crosscut | 64" | 1,625.6 mm |
| Max. Cut Thickness | 1.75" | 44.45 mm |
| Cut Accuracy, Straight and Square | 0.0156" | 0.3969 mm |
| Saw Blade Diameter | 8" | 203.2 mm |
| Voltage | 240 V | 240 V |
| Amps | 10 | 10 |
| Shipping Weight | 600 lb | 272.2 kg |
OPTIONAL MOTORS:
20 amp, 120 volt
10 amp 240 volt
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw.
- Gold Package: Customized to maximize the benefits for cabinetry and furniture shops.
Includes: MID-WAY FENCE™, QUICK STOP™ Gauge 8 ft., Saw Blade, Fixed Stand, Wheels
- Silver Package: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP™ Gauge 8 ft., Dust Collection Kit (Vacuum additional), Saw Blade, Fixed Stand Wheels
- Bronze Package: Customized to maximize the benefits for building component shops.
Includes: QUICK STOP™ Gauge 5 ft., Saw Blade, Fixed Stand, Wheels
