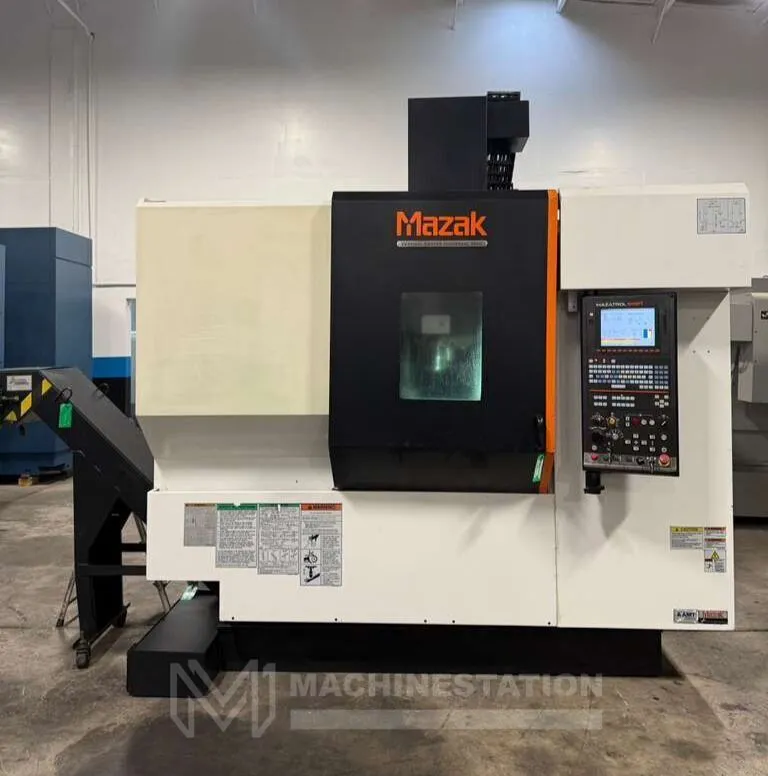

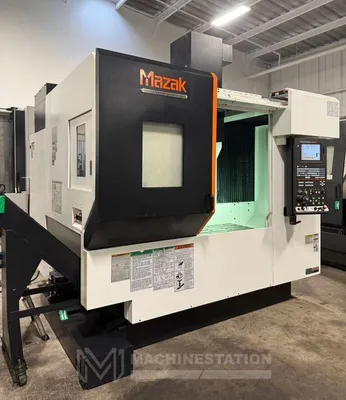

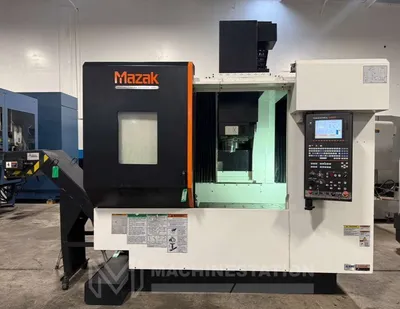

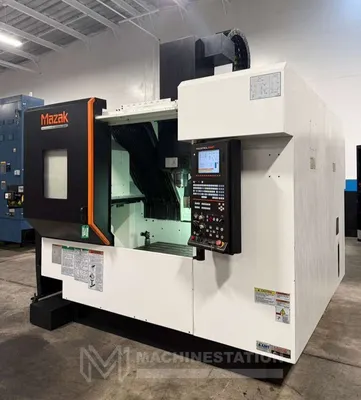

USED 2014 MAZAK VCU-500C 3X

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

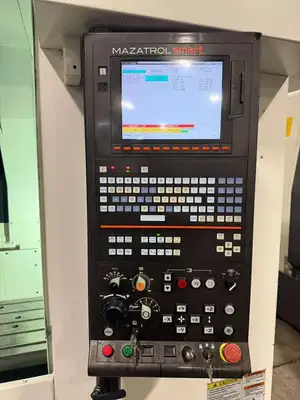

Mazatrol Smart CNC Control
8,813 Hours Cutting Time
30 Station Automatic tool changer
25 HP High Torque Spindle
CAT-40 Taper Spindle
Rigid Tapping
Coolant System

Travels:
X-Axis: 39.37″
Y-Axis: 19.88″
Z-Axis: 20.07″
Rapid Traverse Rates Axis: 1181 IPM
Spindle Nose to Table (Min.- Max.): 4.52″ – 24.60″

Table:
Length: 39.37″
Width: 19.68″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1322 lbs

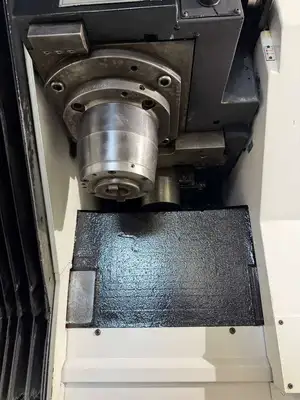

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Dia: 3.15″ – 4.92″
Max Tool Length: 10.23″
Max Tool Weight: 17.63″ lbs

General:
Air Required: 80 psi, 4 scfm
Power: 208v / 35 kva / 3-Phase / 50/60 Htz
Overall Dimensions: 108.27″ x 125″ x 131.81″ High
Weight: 14,000 lbs Approx.

12,000 RPM High Speed Spindle
Renishaw Probing System (Probe Needed)
Tool Presetter
Through Spindle Coolant
Chip Conveyor
Books & Manuals
