NEW 2011 VOORTMAN VB1050

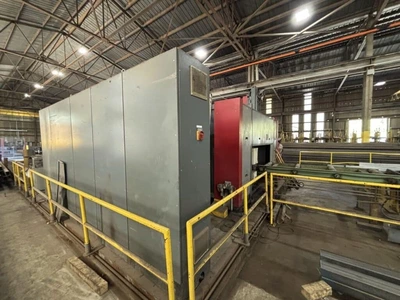

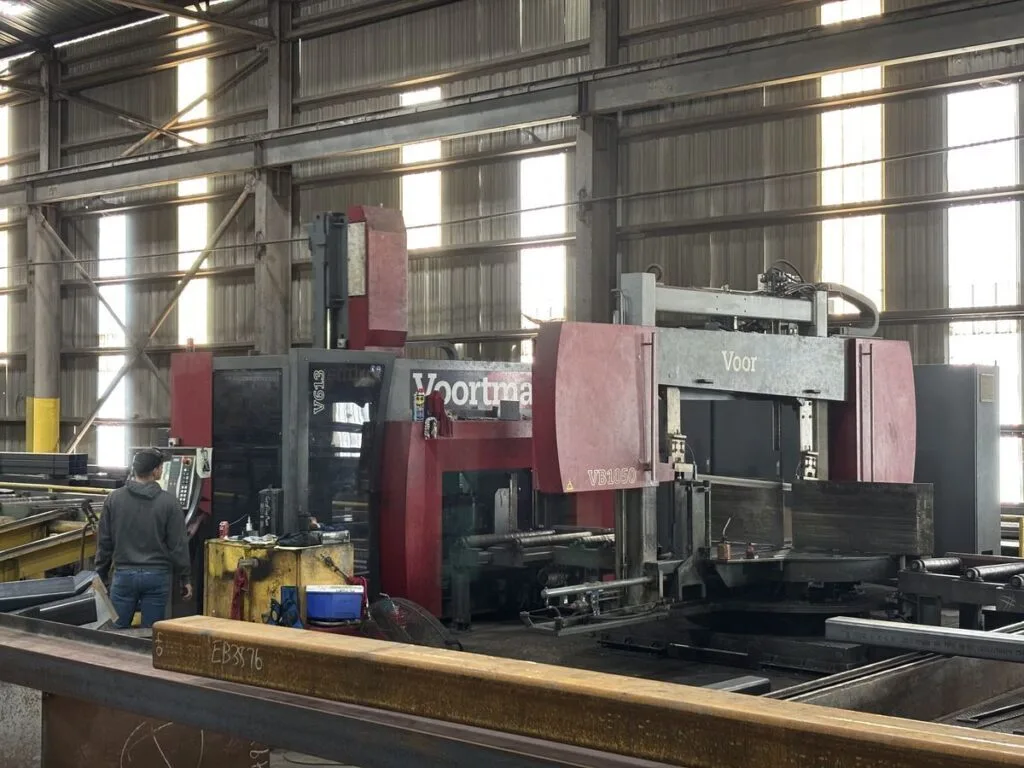

2011 VOORTMAN VB 1050 & V613M CNC Saw & Drill Line, Horiz Dual Column Bandsaw w /Mitering

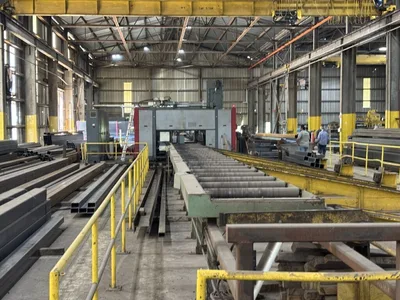

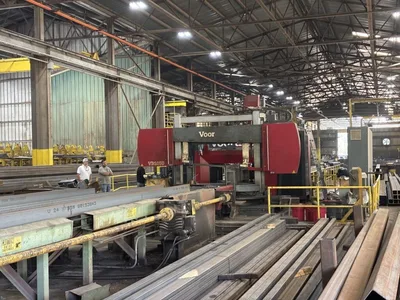

Drill saw line back-to-back
One of the greatest leaps forward in automatic structural steel processing was the introduction of the back-to-back drill/saw combination layout. Stand-alone automated CNC drilling and sawing machines have existed for a while, but placing the machines back-to-back provides many advantages like increased productivity, efficiency and accuracy.

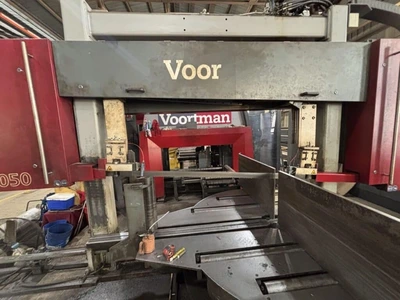

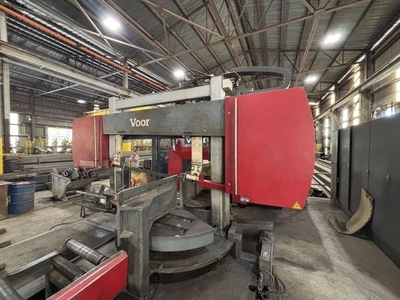

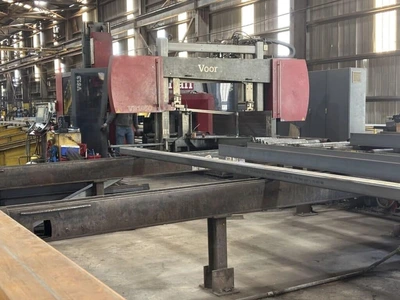

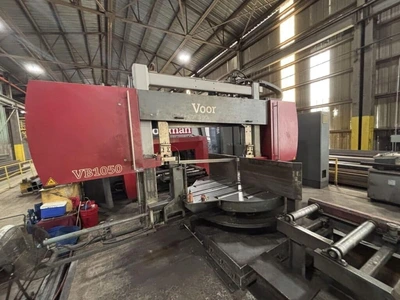

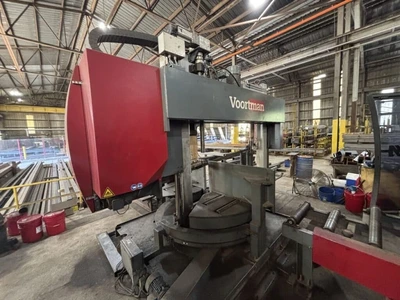

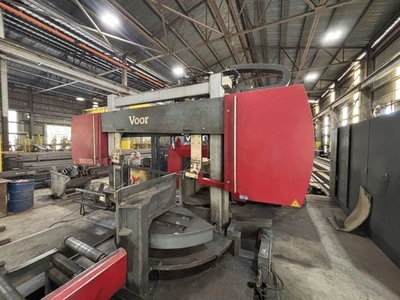

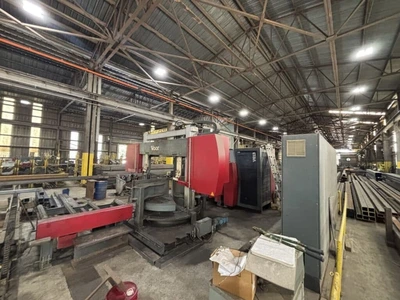

Beam sawing
The Voortman VB Range CNC bandsaw machine is designed to provide automated straight and miter cutting for structural steel. Each machine is mounted to a heavy-duty frame and comes equipped with the latest technology in servo motors and ball screw spindles. The VB Range cuts with optimal speed and quality for maximum production throughput.

Saw Operating Range Height: 1/2″ to 20″
Saw Operating Range Width: 2″ – 45 1/4″
Cutting Capacity at 0 Degrees: 20″ x 44″
Cutting Capacity at +/- 15 Degrees: 20″ x 42 1/2″
Cutting Capacity at +/- 30 Degrees: 20″ x 36″
Cutting Capacity at +/- 45 Degrees: 20″ x 28″
Cutting Capacity at +/- 60 Degrees: 20″ x 18 1/2″
Saw Band Speed: 135 – 400′ per minute
Saw Drive Motor: 10 HP

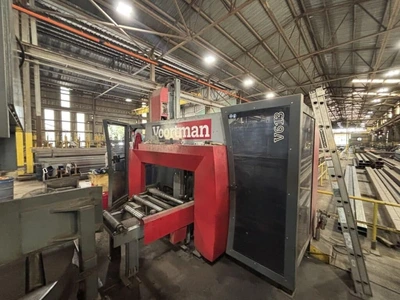

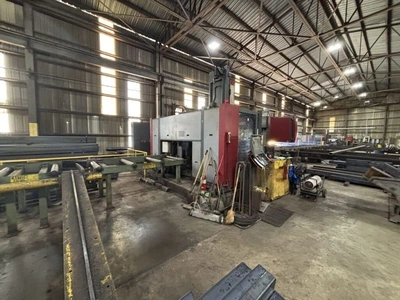

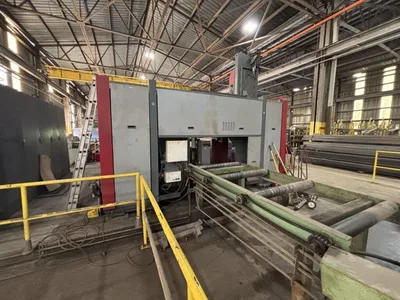

VB 613 Specs
Operating Range: \(25/64\) x \(21/3\) to \(173/4\) x \(44\) inches
Positioning Weight: \(29,100\) lbsMachine Weight: \(24,250\) lbs
Positioning Speed:X-axis: \(138\) f/minY-axis: \(98\) f/minZ-axis: \(98\) f/min
Drilling:Units: 3 Spindle Speed: \(0-3,000\) rpm (stepless)
Drill Diameter: \(13/64\) - \(19/16\) inches
Tool Holder: SK40
Tool Changer: 3 x 6-station
Threading:Tapping range: M6 - M30Power:Nominal
Power: \(40\) Hp
Max Material Width: 42″
Operating Range: 3/8″ – 18″
Minimum Width: 2 1/2″
Max Width: 42″
Auto Tool Changer: VTC 5/40 2 x 5 Positions
Motor: 40 HP
Max HSS Drill Diameter: 1 3/4″
Max Carbide Drill: 1 1/4″
Thread Tapping: 1/4″ – 1″
Working Height: 30″
Operation Direction: From Right to Left

Additional Info
Machine Will Be Available After November 30th 2025

Equipped With
Vacam Software, Linear Guides, Rotatable Drilling Unit, Auto Tool Change, Auto Profile Width Measuring, Web and Flange Height Measuring
