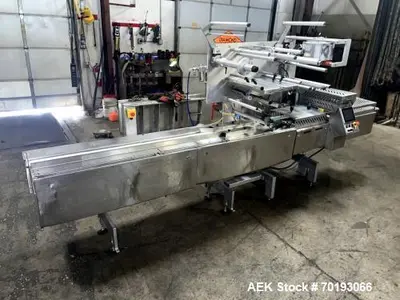

USED BOSCH PACK 201

🏭 Manufacturer Information

Manufacturer: Bosch Packaging Technology

Model: Pack 201

Type: Horizontal Flow Wrapper

Condition: Used (Excellent Operating Condition)

Built: 2013

Electrical: 230V / 3 Phase / 60 Hz

Controller: Beckhoff PLC

Drive System: Bosch Rexroth Servo Drives

Printer: Markem SmartDate X60 Thermal Transfer Coder

Country of Manufacture: Germany

⚙️ Product Description

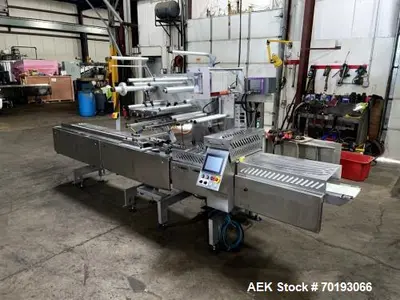

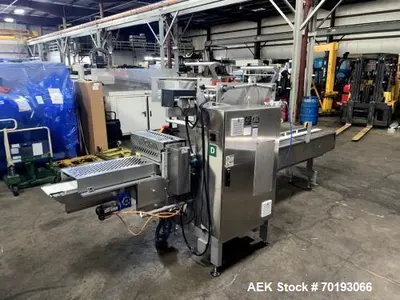

The Bosch Pack 201 Horizontal Flow Wrapper is a high-performance, servo-driven packaging system designed for consistent, high-speed product wrapping across food, confectionery, pharmaceutical, and consumer goods applications.

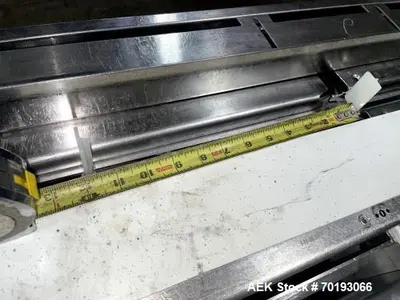

This unit features left-to-right product flow with an approx. 7-foot-long lugged infeed and a 3.5-inch-wide product delivery belt for smooth, accurate product transfer.
The dual film roll stand accommodates film widths up to 650mm, and the print registration system ensures precise film alignment.
Rated for up to 150 packages per minute, the wrapper includes a 1-up, 150mm diameter cutting head with a 7.5-inch crimper, adjustable forming plow, and 39.5-inch discharge conveyor.
Controlled via Beckhoff PLC and Bosch Rexroth servo drives, this machine offers reliability, repeatable motion control, and flexible packaging setups.
Also equipped with a Markem SmartDate X60 thermal printer for on-demand date coding and labeling.

📏 Specifications

Model: Pack 201

Manufacturer: Bosch Packaging Technology

Type: Horizontal Flow Wrapper

Product Flow: Left to Right

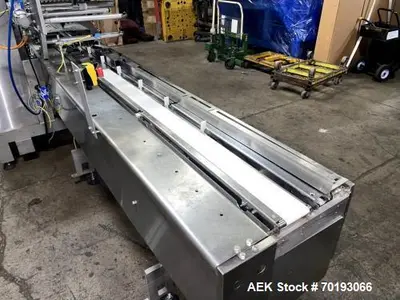

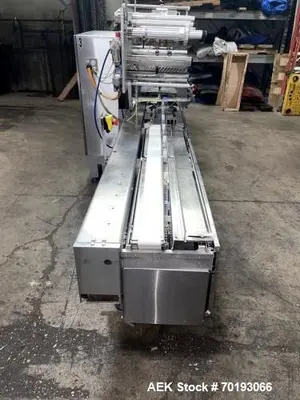

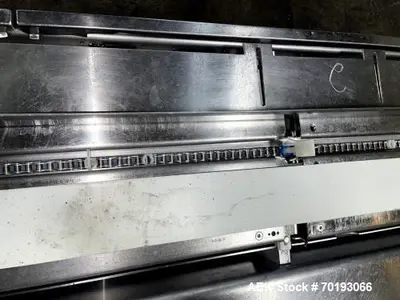

Infeed Length: Approx. 7’ Lugged Conveyor

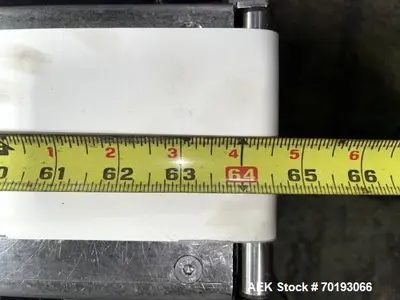

Product Delivery Belt Width: 3.5”

Film Roll Width Capacity: Up to 650mm

Film Roll Stand: Dual Roll

Speed Rating: Up to 150 PPM (OEM rated)

Cutting Head: 1-Up, 150mm Diameter, 7.5” Wide Crimper

Package Size Range:

Length: 2” – 18.5”

Height: Up to 3.75”

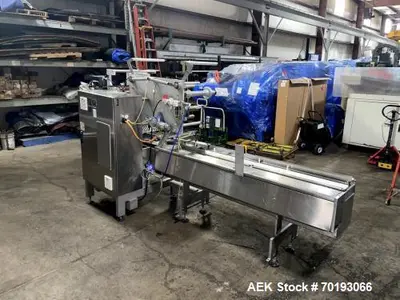

Discharge Conveyor: 39.5” Long

Controls: Beckhoff Controller, Bosch Rexroth Servo Drives

Printer: Markem SmartDate X60

Voltage: 230V / 3PH / 60Hz

Year Built: 2013

🧩 Applications

Bakery and confectionery packaging

Snack and bar wrapping

Medical and pharmaceutical products

Frozen or refrigerated food items

Personal care and cosmetic products

Consumer goods and retail packaging

Hardware and household goods

Nutraceutical or protein bar packaging

Pouch and flexible product wrapping

Automated high-speed packaging lines

⚗️ What Might This Be Used For

The Bosch Pack 201 Flow Wrapper is ideal for automatic, high-speed wrapping of individual products in clear or printed film.
It’s commonly used in food, snack, and confectionery industries for packaging bars, baked goods, and other products requiring tight, consistent seals and attractive presentation.
The servo-driven design provides accuracy, repeatability, and easy changeovers for multi-product production environments.

🧱 Products That Could Use This Wrapper

Protein and nutrition bars

Cookies, crackers, and biscuits

Candy and chocolates

Frozen waffles or pastries

Medical device components

Pharmaceutical blister packs

Single-use wipes or sachets

Small boxed or bagged goods

Cosmetic or personal care products

Industrial and retail hardware items
