USED 2020 OMAL HBD 1300 OF

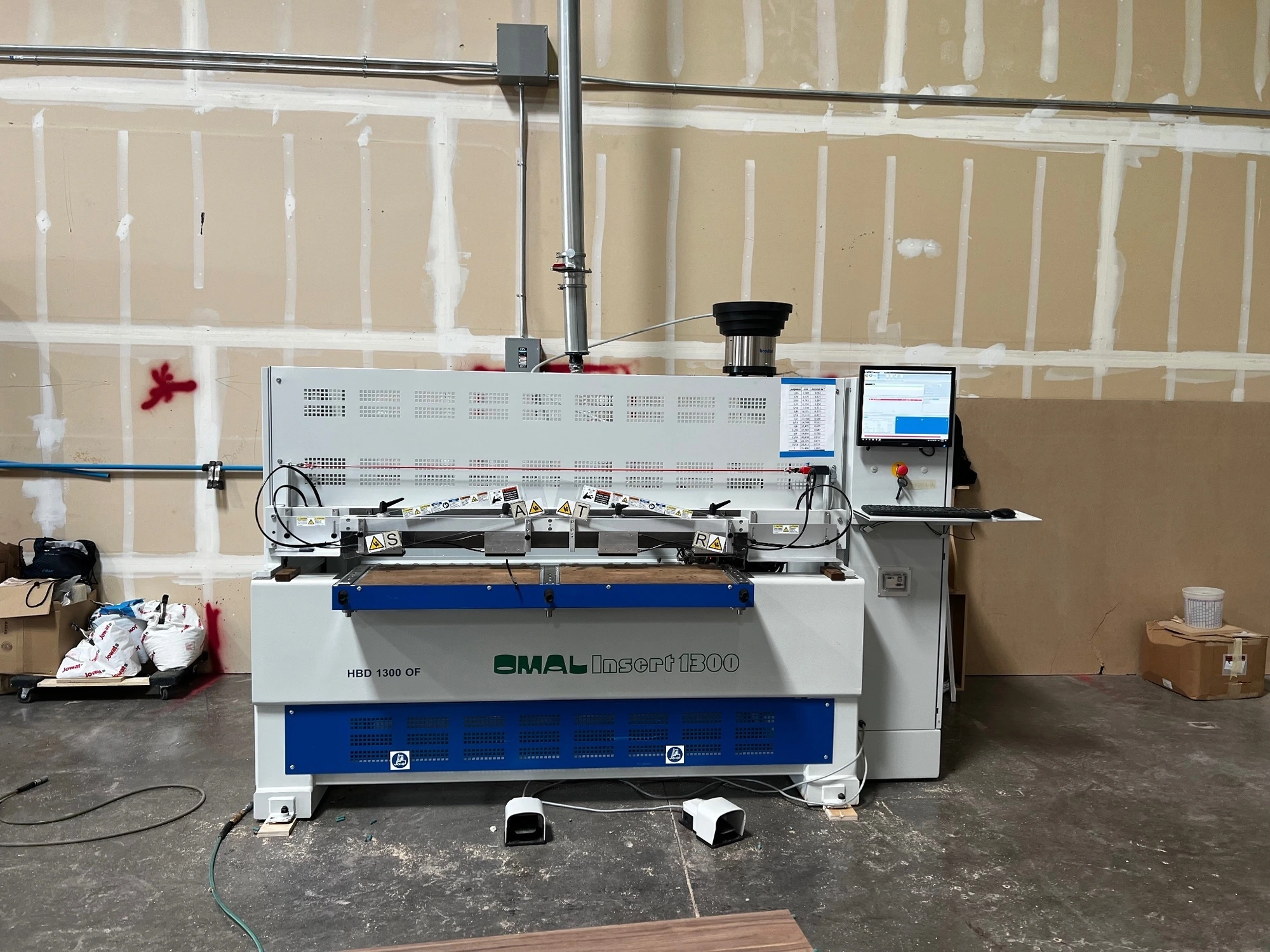

OMAL HBD 1300 OF Horizontal Bore & Dowel Insertion Machine – 2020 (Used)

High-Precision Automated Drill & Dowel Machine – 460 V 3-Phase – Made in Italy

This is a 2020 OMAL HBD 1300 OF horizontal bore and dowel insertion machine, designed for precision case construction and furniture assembly.
Built in Italy by OMAL Macchine e Sistemi, the HBD 1300 OF performs boring, gluing, and dowel insertion in a single automated cycle.
Ideal for cabinet and furniture production lines seeking speed, accuracy, and repeatability.

✅ Machine Specifications
• Make: OMAL macchine e sistemi
• Model: HBD 1300 OF (Open Frame)
• Year: 2020
• Serial Number: 13957
• Weight: 1,100 kg (≈ 2,425 lb)
• Voltage: 460 V / 60 Hz / 3-Phase
• Installed Power: 5 kW
• Full Load Current: 6 A / 5 kW
• Aux Circuit Voltage: 220 VAC / 110 VAC / 24 VDC
• Air Pressure Requirement: 7 bar (≈ 100 psi)
• Control Panel: Industrial Control Panel, EN 60204-1 Compliant

⸻

✅ Functional Highlights
• Automatic horizontal drilling, glue application, and dowel insertion
• Fast 1-second cycle time per hole (with dowel ready)
• Touchscreen HMI for parameter adjustment and maintenance alerts
• Heavy-duty open-frame design for easy loading and access
• Precision linear guide assemblies for accurate boring alignment
• Compatible with 6 – 10 mm dowels (8 mm standard)
• High-efficiency glue pump and reliable dowel feed system

⸻

✅ Condition
• Used – excellent working condition
• Cleaned, tested, and fully operational
• Glue system flushed and serviced
• All safety guards and interlocks intact
• Light production use only – shop kept in controlled environment
• Manuals and spare parts included

⸻

📦 Additional Notes
• Located in Las Vegas, NV
• 460 V 3-Phase power required for operation (demo available)
• Ideal for cabinet shops, closet manufacturers, and case assembly lines
• Excellent complement to case clamps, CNC routers, or nested-based production
• Available for immediate pickup or shipment nationwide
• Freight quotes and financing available upon request

All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
