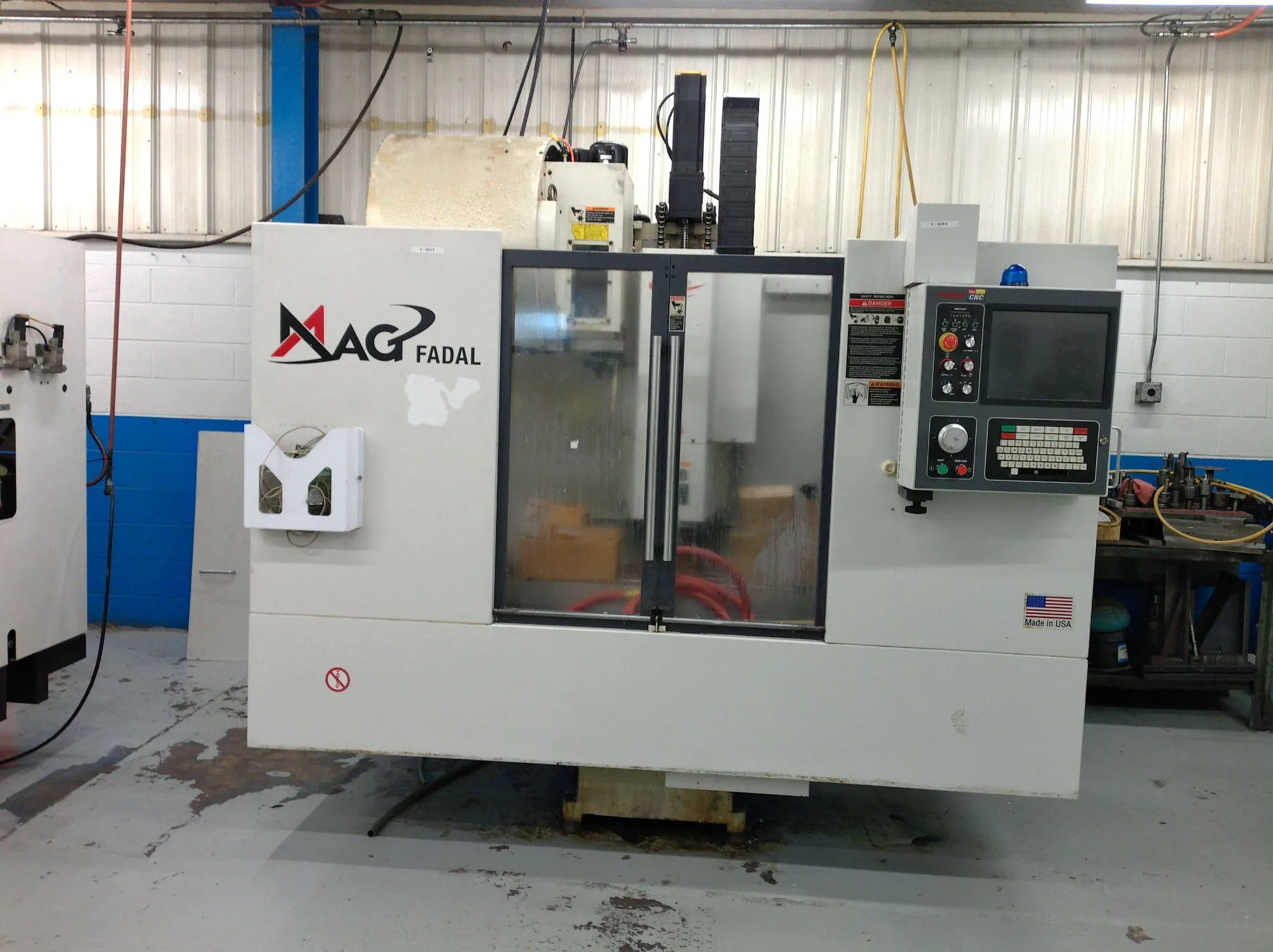

2010 Fadal VMC3016 FXMP HT CNC 5-Axis VMC
30" x 16" x 20", 10K RPM, CAT 40, 20 ATC, Trunnion
| X-Axis | 30" | 762 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 16" | 406.4 mm |
| Table-L | 39" | 990.6 mm |
Fadal VMC 3016FX MP HT CNC Vertical Machining Center with 5th Axis Trunnion
New: 2010
Specifications:
Travels:
X-Axis: 30"
Y-Axis: 16"
Z-Axis: 20"
Spindle Speed: 10,000 RPM
Spindle Motor: 20 HP
Spindle Taper: CAT 40
Equipped With:
Fadal CNC Control
Coolant Thru Spindle
4th Axis
Calmotion 5-C with 4" x 10" Martin Trunnion
Chip Conveyor
