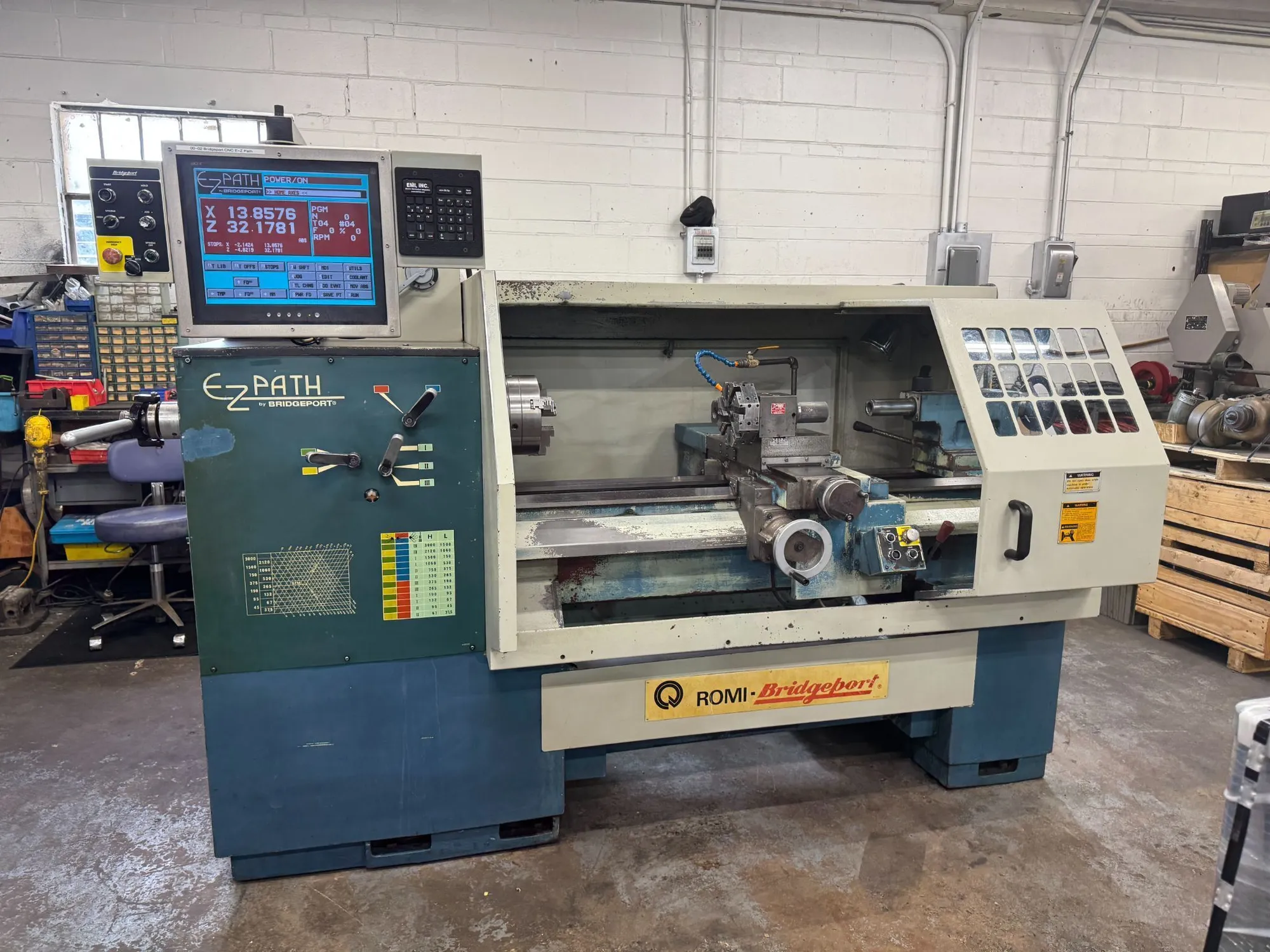

16.5” x 40” Romi Bridgeport EZ Path CNC Lathe
| Swing | 18" | 457.2 mm |
| Centers | 48" | 1,219.2 mm |
| Dimensions | 96” x54” x 71” | 96” x54” x 71” |
| Weight | 4,000lbs | 4,000lbs |
16.5” x 40” Romi Bridgeport EZ Path Lathe
Stock#RC852
Model EZ Path
S.N.022-078107-325
Year 1994
Swing 16.5
Centers 40”
Height of center 8”
Swing over cross Slide 8”
Bed Width 12”
Bed height 13 5/32”
Spindle nose ASA A2-5”
Hole Threw Spindle 2”
Spindle Speeds
High 67 – 3000 (12) Rpm
low 37.5 -1500 (12) Rpm
Longitudinal Rapid 250 Inch per Min
Cross Rapid 250 Inch per Min
Quill Travel 6.3”
Quill Diameter 2”
Quill Taper hole MT4
Main Spindle Motor 8HP 240/3/60
8” 3 jaw Chuck
Collet Closer
Dorian VIT8-75 8 position turret
Coolant Tray & Pump
Chip Pan
Light
24 Pin
Floppy
Assorted parts & Tooling
Work Light
Books
Dimensions 96” x54” x 71”
Weight 4,000lbs
