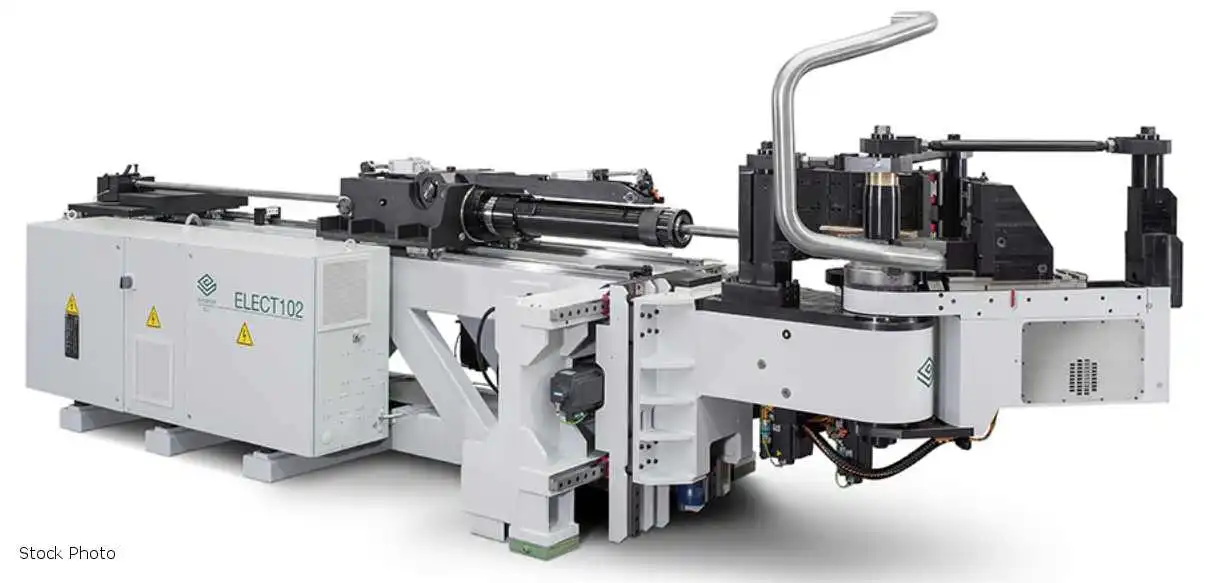

NEW BLM GROUP ELECT 102

BLM (NEW) MODEL ELECT102 FULLY ELECTRIC RIGHT
HANDED CNC TUBE BENDER

ELECT102 CAPACITIES
- 4.00" X .120" ROUND TUBE STEEL
- 3.50 X .079" ROUND TUBE STAINLESS STEEL
- 17.72" BENDING RADIUS MAXIMUM
USEFUL LENGTH (INCREASABLE)
- 81.1" FROM TOOL POST TO COLLET
- 177.2" FROM TOOL POST TO MANDREL EXTRACTOR
RIGHT HAND ONLY BENDING ROTATION
13.00" TOOLING STACK HEIGHT
5.12" DIFFERENCE BETWEEN BEND CENTERLINE RADII
39.37"/SEC X-AXIS FEED SPEED
40 DEG/SEC Y-AXIS BEND SPEED
360 DEG/SEC Z-AXIS ROTATION SPEED

OVERVIEW
- THE ELECT102 HAS BEEN DEVELOPED WITH THE
CONSIDERABLE EXPERIENCE BLM GROUP HAS GAINED
IN THE AUTOMATIC BENDING OF COMPLEX TUBULAR
COMPONENS AND MEETS THE GROWING MARKET DEMANDS
FOR PRODUCTION OF EVER INCREASING COMPLEX AND
MULTI-RADII PARTS MANUFACTURED FROM A VARIETY OF
MATERIALS, IN SMALL, MEDIUM, AND LARGE BATCH SIZES
- THE ELECT102 IS AN ALL-ELECTRIC RIGHT HAND TUBE-
BENDING MACHINE (12 AXES) WITH 3D VISUAL GRAPHIC
PROGRAMMING (VGP3D)
- NO MECHNICAL ADJUSTMENTS ON TOOL SET-UP
- FULLY INTERCHANGEABLE BENDING TOOLS (WITH
OTHER BLM OR COMPETITORS MACHINES)
- INCREASED PRODUCTIBITY (UP TO 20% HIGHER THAN
HYDRO-ELECTRIC MACHINES)
- MINIMAL TIME FOR PROGRAMMING AND CHANGEOVER
- EXTREMELY FLEXIBILITY
- ENHANCED REPEATABILITY

SYSTEM CAPABILITIES
- THE ELECT102 IS SO FLEXIBLE THAT IT ALLOWS
CUSTOMIZED MACHINE CONFIGURATIONS FOR MULTIPLE
WORKING PROCESSES

CAN BE CONFIGURED
- FOR VERY SMALL BENDING RADII (IN SOME CASES LESS
THAN 1D) WITH THE BOOST BENDING SYSTEM
- TO PRODUCE TOP QUALITY BENDS ON THIN WALL TUBE
WITH LITTLE OR NO STRAIGHT BETWEEN THE BENDS
- FOR MULTIPLE VARIABLE RADII IN AUTOMATIC
SEQUENCE, WITHOUT SECONDARY RE-BENDING
OPERATION
- WHERE BOOST IS MODULATED THROUGH THE WHOLE
BENDING PROCESS
- FOR RIGHT HAND ROTATION BENDING HEAD
- FOR UP TO 4 DIFFERENT TOOLS STACKED AT ONE TIME
SO THAT VARIABLE RADIUS TOOLS CAN BE FIT IN ANY
POSITION, BOTTOM, CENTER OR TOP
