| Dimensions | 42 X 42 X 64 | 42 X 42 X 64 |
| Weight | 1,420 | 1,420 |

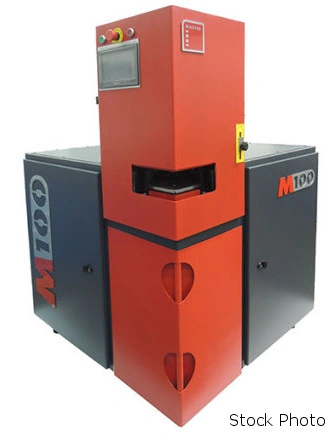

EDGEMASTER (NEW) MODEL M100 CORNER FORMING MACHINE

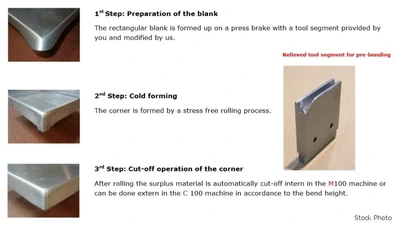

FORMS HIGH-QUALITY CLOSED CORNERS FROM
PRE-BENT FLAT BLANKS
- 0.032" - 0.188" THICK CRS/HRS
- 0.032" - 0.080" THICK STAINLESS STEEL
- 0.040" - 0.200" THICK ALUMINUM
6" X 6" MINIMUM SIZE FOR WORK PIECE
10 SECONDS CYCLE TIME PER CORNER
38" WORKING HEIGHT
CONFORMS TO CE STANDARDS
480 VOLTS, 3 PHASE
SIEMENS S7-300 CONTROL
- HD COLOR TOUCHPANEL WITH MEMORY
- STORAGE FOR PROGRAMS
- PROGRAMMABLE POSITIONS
- PROGRAMMABLE SPEEDS
- PROGRAMMABLE NUMBER OF ROLL CYCLES

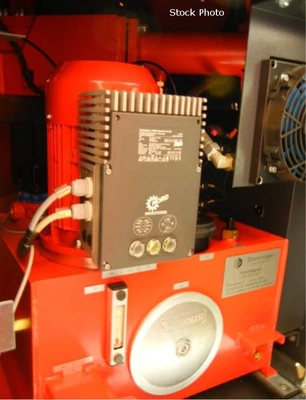

VFD HYDRAULIC PUMP
- 120 BAR OPERATING PRESSURE
- 17 GALLON VG46
OPTIONS AVAILABLE - PRICE ON REQUEST
- C100 EXTERNAL CUTTING UNIT
Power: 480 (3-Phase)
