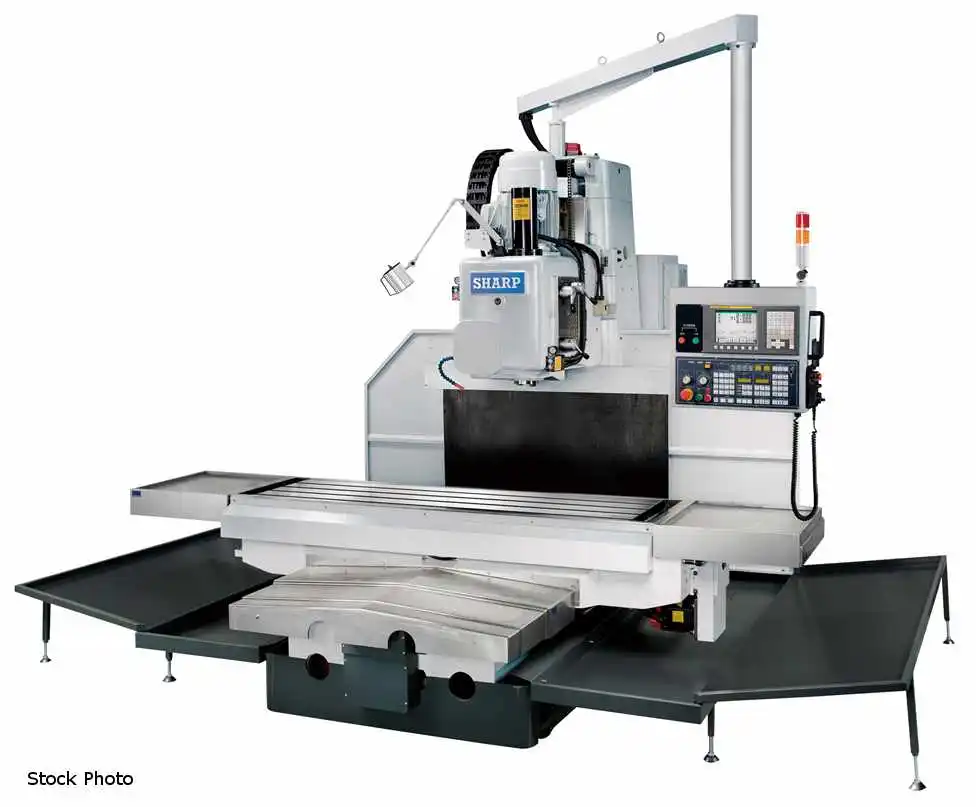

NEW SHARP KMA-1-CNC

SHARP (NEW) MODEL KMA-1-CNC HEAVY-DUTY VERTICAL
BED-TYPE MILL

CAPACITY
- 51.2" X TABLE TRAVEL
- 22" Y TABLE TRAVEL
- 21.6" Z SPINDLE HEAD TRAVEL
- 51.2" X CUTTING
- 20.8" Y CUTTING
- 19.6" CUTTING HEIGHT
- 3.7" - 25.4" SPINDLE NOSE TO TABLE TOP
- 22.8" SPINDLE CENTER TO COLUMN

TABLE
- 74.8" X 19.7" TABLE WORKING AREA
- 5 T-SLOTS 0.07" X 3.15" (W X PITCH)
- 32.28" TABLE TOP TO FLOOR
- 3,500 LBS MAX LOADING

SPINDLE HEAD
- NO 5 SPINDLE NOSE
- 18 SPINDLE SPEEDS, 45-1,500 RPM
- 0.002-0.008 IPM VERTICAL FEEDS

FEEDS
- 1.2 - 236 IPM RAPID TRAVERSE (X,Y)
- 1.2 - 236 IPM FEEDS (X,Y)

MOTORS
- 10 HP SPINDLE
- 3.3 HP X/Y/Z AXIS
- 1/4 HP FOR LUBRICATION
- 1/4 HP FOR COOLANT PUMP

25 KVA TOTAL POWER CONSUMPTION

STANDARD EQUIPMENT
- POWER DRAW BAR
- AUTO LUBRICATION
- COOLANT SYSTEM
- PNEUMATIC LOCKS ON TABLE SADDLE
- ELECTRO MAGNETIC SPINDLE BRAKE

FEATURES
- EXTREMELY RIGID C FRAME DESIGN
- HARDENED AND GROUND BOX WAYS

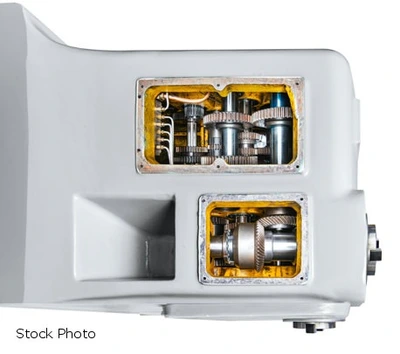

- 18 SPEED GEAR HEAD SPINDLE
- FANUC OiMF CONTROL AND AC SERVO DRIVES
- 3 AXES ELECTRONIC HANDWHEEL (MPG)

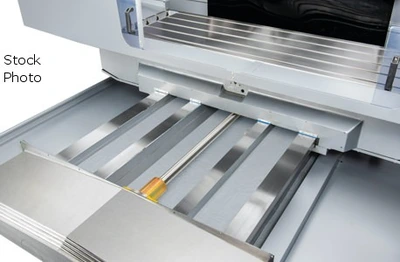

- HARDENED, GROUND SLIDEWAYS WITH TURCITE COATING
- 18 SPINDLE SPEEDS WITH #50 TAPER
- PNEUMATIC LOCKS ON THE TABLE AND SADDLE
- POWER DRAW BAR
- COOLANT SYSTEM
- ELECTRO MAGNETIC SPINDLE BRAKE

OPTION AVAILABLE - PRICE ON REQUEST
- LINEAR SCALES (3 AXES)
- TABLE CHIP GUARD
- 4.600 VARIABLE SPEED IN LIEU OF 1,500 RPM
- INDEXER
