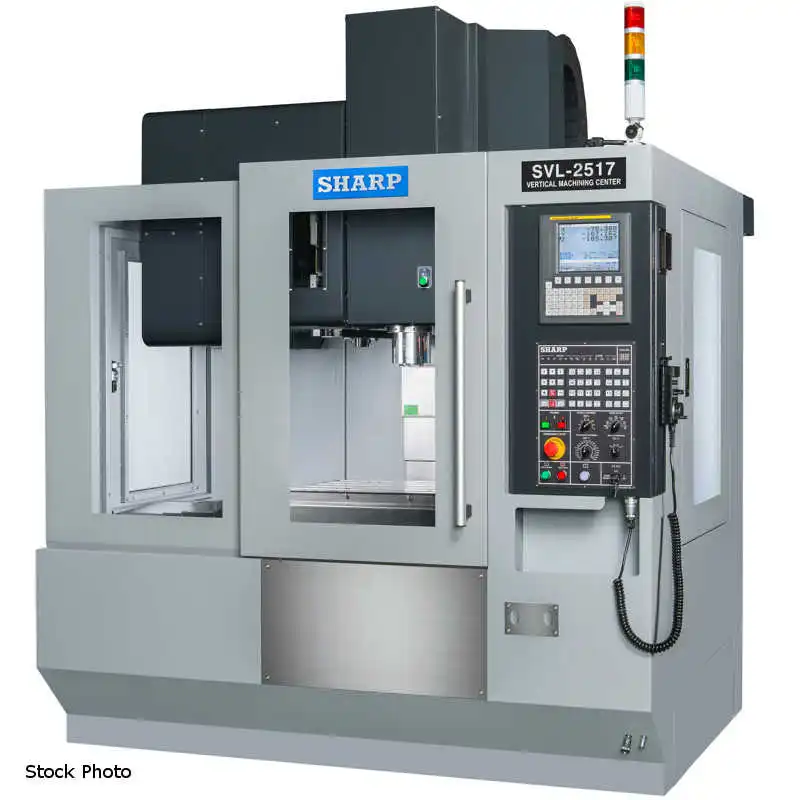

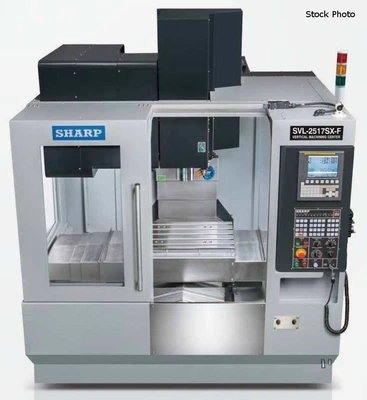

NEW SHARP SVL-2517 SX-F

SHARP (NEW) MODEL SVL-2517 SX-F VERTICAL
MACHINING CENTER

WORK CAPACITY
- 25.2" X AXIS TRAVEL
- 16.9" Y AXIS TRAVEL
- 18.1" Z AXIS TRAVEL
- 3.15" - 21.26" SPINDLE NOSE TO TABLE
- 19.29" SPINDLE CENTER TO COLUMN

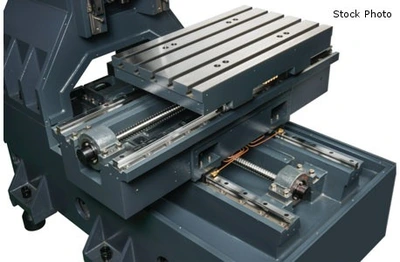

WORK TABLE
- 27.5" X 16.5" TABLE AREA
- 660 LBS MAX WORK PIECE WEIGHT
- 5 T-SLOTS X 0.7" WIDE X 3.14" PITCH

SPINDLE
- CAT-40 BIG PLUS TAPER
- 12,000 RPM
- 10/15 HP ALPHA MOTOR
- 52 FT/LB TORQUE AT 1500 RPM
- DIRECT COUPLING TRANSMISSION

SIDE MOUNT AUTOMATIC TOOL CHANGER
- 24 TOOL CAPACITY
- 3.94" MAX TOOL DIAMETER
- 5.9" TOOL DIAMETER WITHOUT ADJACENT TOOL
- 9.8" MAX TOOL LENGTH
- 15.4 LB MAX TOOL WEIGHT
- 2 SECOND TOOL CHANGE TIME - TOOL TO TOOL
- 6 SECOND TOOL CHANGE TIME - CHIP TO CHIP

MOTION
- 0.04 - 1,417 IPM RAPID TRAVERSE
- 0.04 - 393.7 IPM CUTTING FEED RATE
- DIRECT DRIVE TRANSMISSION
- 0.00016" POSITIONING ACCURACY
- 0.00012" REPEATABILITY ACCURACY
- 1.26" BALLSCREW DIAMETER X/Y/Z
- SERVO MOTORS FOR FANUC CONTROL
1.6 HP X, 1.6 HP Y, 2.4 HP Z

42 GALLON COOLANT TANK WITH 2 NOZZLES

POWER REQUIREMENTS
- 220 VOLT, 3 PHASE
- 6 CFM AT 88 PSI AIR

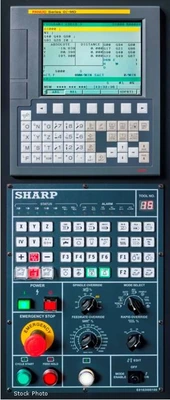

CNC CONTROL
- FANUC Oi-MF CONTROL
- 10.4" LCD COLOR SCREEN
- REMOTE JOB HANDLE (MPG)
- USB PORT, RS232 INTERFACE
- CF CARD
- 512 K MEMORY, 200 BLOCKS LOOK AHEAD
- MANUAL GUIDE i
- AICC II, 200 BLOCKS LOOK AHEAD
- EMBEDDED ETHERNET
- BELL-TYPE ACCELERATION/DECORATION
- 4 SPARE M CODES
- SUPPORT 4TH AXIS

SPINDLE
- CAT-40 TAPER
- 12,000 RPM WITH DIRECT COUPLING MOTOR
- RIGID TAPPING
- SPINDLE CHILLER
- DIRECT COUPLING
- AIR BLOW (FOR CUTTING DRY)

AUTOMATIC TOOL CHANGER
- 24 TOOLS SIDE MOUNT STYLE
- AIR CLAST AT TOOL CHANGES
1,417 IN/MIN RAPID TRAVERSE
- COOLANT SYSTEM
42 GALLONS ROLL OUT COOLANT TANK
FLOOD-COOLANT SYSTEM
- PULL-OUT STYLE CHIP CABINET
- HEAT EXCHANGE SYSTEM FOR ELECTRIC CABINET
- SPINDLE CHILLER

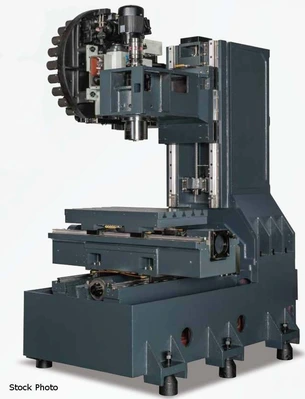

MACHINE CONSTRUCTION
- ALL MEEHANITE CAST IRON STRUCTURAL COMPONENTS
- LINEAR GUIDWAY CONSTRUCTION
- PRECISION HAND SCRAPING ON ALL STRUCTURAL COMPONENTS
- DOUBLE ANCHORED, PRE-TENSIONED DOUBLE NUT BALL SCREW
- FULL METAL ENCLOSURE WITH REMOVABLE SIDE DOORS
- FILL METAL WAYS OVERS
SMALL FOOTPRINT
- W-79.53"/D-86.46"/H-107.9"
- ONCE WE LOWER Z AXIS MOTOR H-96.9"

STANDARD ACCESSORIES
- LINEAR ROLLER GUIDEWAY CONSTRUCTION
- FANUC O-0i-MF (1)
SPINDLE
- CAT-40 TAPER BIG PLUS
- 12,000 RPM FOR FANUC CONTROL
- RIGID TAPPING
- SPINDLE CHILLER
- AIR BLOW (FOR CUTTING DRY)
AUTOMATIC TOOL CHANGER
- 24 TOOLS SIDE MOUNT STYLE
- AIR BLAST AT TOOL CHANGE
COOLANT SYSTEM
- 42-GALLON ROLL-OUT COLLANT TANK
- FLOOD-COOLANT SYSTEM
AUTOMATIC-LUBRICATION SYSTEM WITH ALARM
COOLANT GUN
AIR GUN
PULL-OUT STYLE CHIP PAN
HEAT EXCHANGER FOR ELECTRIC CABINET
SPINDLE OIL CHILLER
FLUORESCRENT WORK LIGHT
AIR RESERVOIR TANK WITH ALARM
3 TIER STATUS LIGHT
FULL METAL ENCLOSURES WITH 2 LARGE SIDE DOORS
DOOR INTERLOCK
TOOL KIT
LEVELING BOLTS AND PADS

OPTIONS AVAILABLE - PRICE ON REQUEST
- SCRAPPER TYPE CHIP CONVEYOR, STEEL APP, WITH BUCKET (FACTORY ORDER)
- H INGE TYPE CHIP CONVEYOR, ALUMINUM APP WITH BUCKET (FACTORY ORDER)
- CHIP AUGER (FACTORY ORDER)
- OIL SKIMMER
- CTS PREPPED, 1000PSI, WITH HALLOW FANUC MOTOR
- TSUDAKOMA 6" INDEXER-MODEL RWE-160R WITH TPC-JR CONTROLLER
(INSTALLED AT SHARP)
- TSUDAKOMA 6" ROTARY TABLE - MODEL RWE 160R (INCLUDES MOTOR ONLY,
BUT NO INSTALLATION)
- 4TH AXIS PREPPED (FACTORY ORDER)
- FACTORY INSTALLATION OF 4TH AXES ROTARY TABLE W/BOTH CABLES
AND SERVO DRIVE
Power: 220 (3-Phase)
