NEW BLM GROUP ELECT-63B

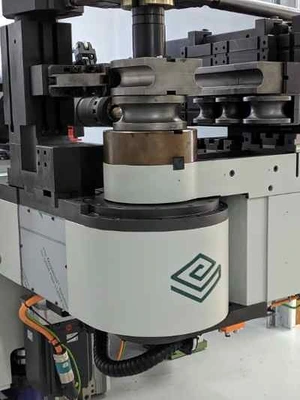

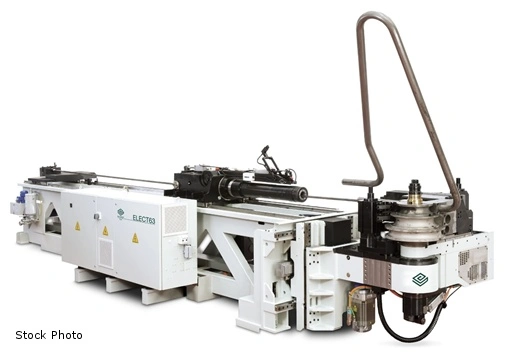

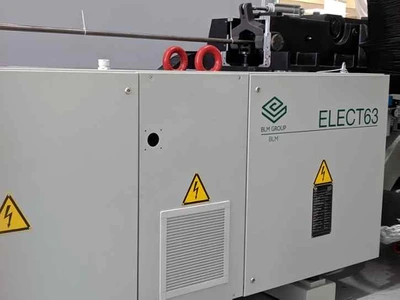

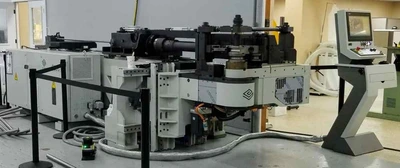

BLM (NEW) MODEL ELECT-63B CNC TUBE BENDER

CAPACITY
- 2.48" X 0.156" ROUND TUBE ALUMINUM/COPPER/BRASS
- 2.48" X 0.079" ROUND TUBE STEEL/STAINLESS STEEL
- 10.62" MAXIMUM BENDING RADIUS

81.1" FROM TOOL POST TO COLLECT
159.4" FROM TOOL POST TO MANDREL RETRACTOR
63"/SECOND X AXIS FEED SPEED
33.46"/SECOND X AXIS FEED SPEED WITH BOOSTER
90 DEGREES/SECOND Y AXIS BEND SPEED
500 DEGREES/SECOND Z AXIS ROTATION SPEED
13"/SECOND Q AXIS HEAD HORIZONTAL SPEED
9.5"/SECOND V AXIS HEAD VERTICAL SPEED
+/- 0.002" X FEED ACCURACY
+/- 0.05 DEGREE Y ROTATION ACCURACY
+/- 0.05 DEGREE Z BEND ACCURACY
+/- 0.002" Q SHIFT ACCURACY

FEATURES
- SINGLE-HAND (RIGHT OR LEFT)
- 9 AXES
- 3D VISUAL GRAPHIC PROGRAMMING

HARDWARE OPTIONS
- BOOST
- LUBRICATION
- MACHINE EXTENSIONS
- FEATURE DETECTION
- SAFETY AND CYCLE ACTIVATION
- TOOL HOLDER OPTIONS
- AUTOMATIC LOADING OPTIONS
- ROBOTIC INTERFACE
