NEW BLM GROUP ELECT-40

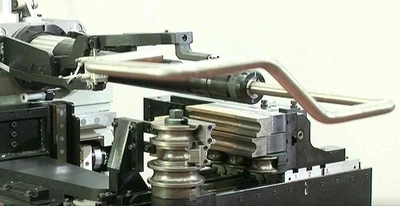

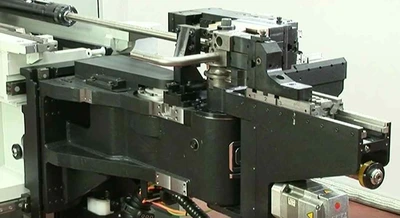

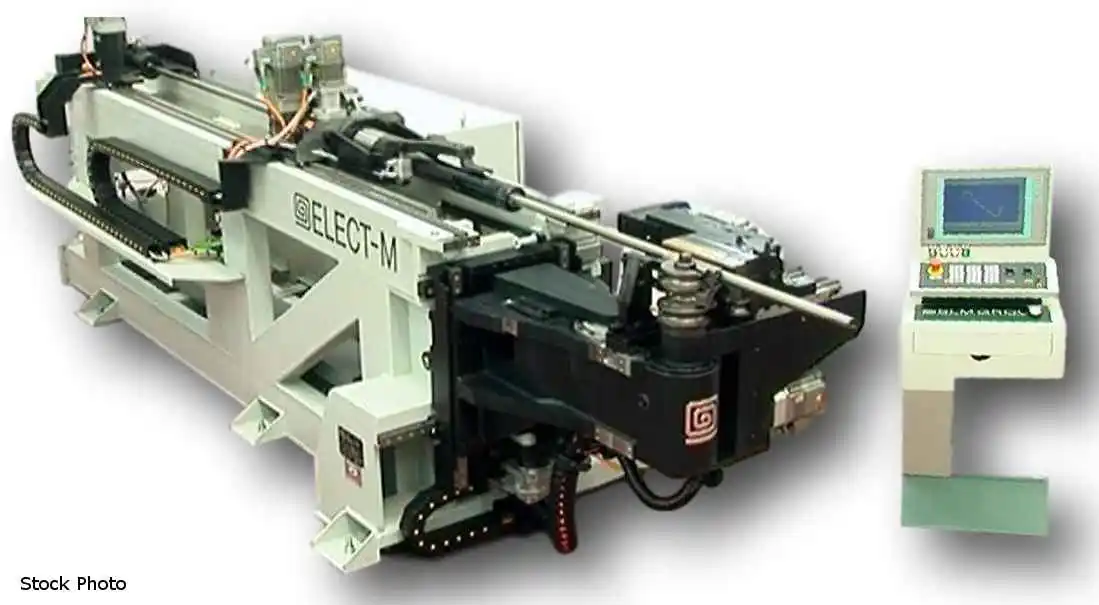

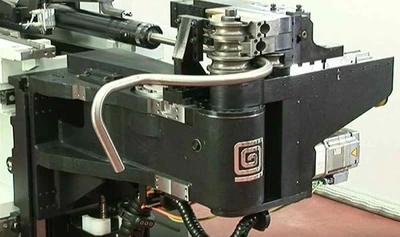

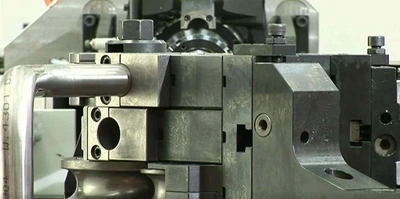

BLM (NEW) MODEL ELECT-40 CNC TUBE BENDER

1.66" X 0.08" MAX TUBE OD CAPACITY (ROUND TUBE)
9 CONTROLLED AXES
6.5" MAX BENDING RADIUS
1" MIN BENDING RADIUS
80" MACHINE BED LENGTH (FROM TOOL POST TO COLLECT)
143" FROM TOOL POST TO MANDREL RETRACTION
1.70" MAX BORE THROUGH CARRIAGE
CONVERTIBLE LEFT OR RIGHT BENDING DIRECTION
AUTOMATIC MANDREL LUBRICATION
3 MANDREL RODS
10-16-24 DIAMETERS

- BOOSTER FOR VARIABLE RADIUS BENDING WITH
1 METRIC TON TORQUE
- EARLY MANDREL EXTRACTION
- ELECTRICAL AXIS FOR BEND DIE RETURN MOVEMENT
- REMOTE TELE-DIAGNOSTICS
- SAFETY BARRIERS
- TWO-HAND COMMAND OPERATOR PEDESTAL WITH
OPTICAL BUTTONS

OPTIONS
- ELECTRICALLY CONTROLLED PRESSURE DIE
- VARIABLE RADIUS BENDING (VRB) CAPABILITY
AND RELATED ACCESSORIES
- CARRIAGE BOOST WITH 2 METRIC TON TORQUE
- WIPER DIE SUPPORT
- MACHINE BED EXTENSION
- WELD SEAM DETECTION
- HOLE DETECTION
- AUTO-LOADING
- CUT OFF
- GEL/GREASE LUBRICATION SYSTEM
- VERTICAL BEND DIE OPENING
- MOUNTING ADAPTERS FOR SPECIAL TOOLING
